Nova NovaBox

7
YOUR SETTOP BOX

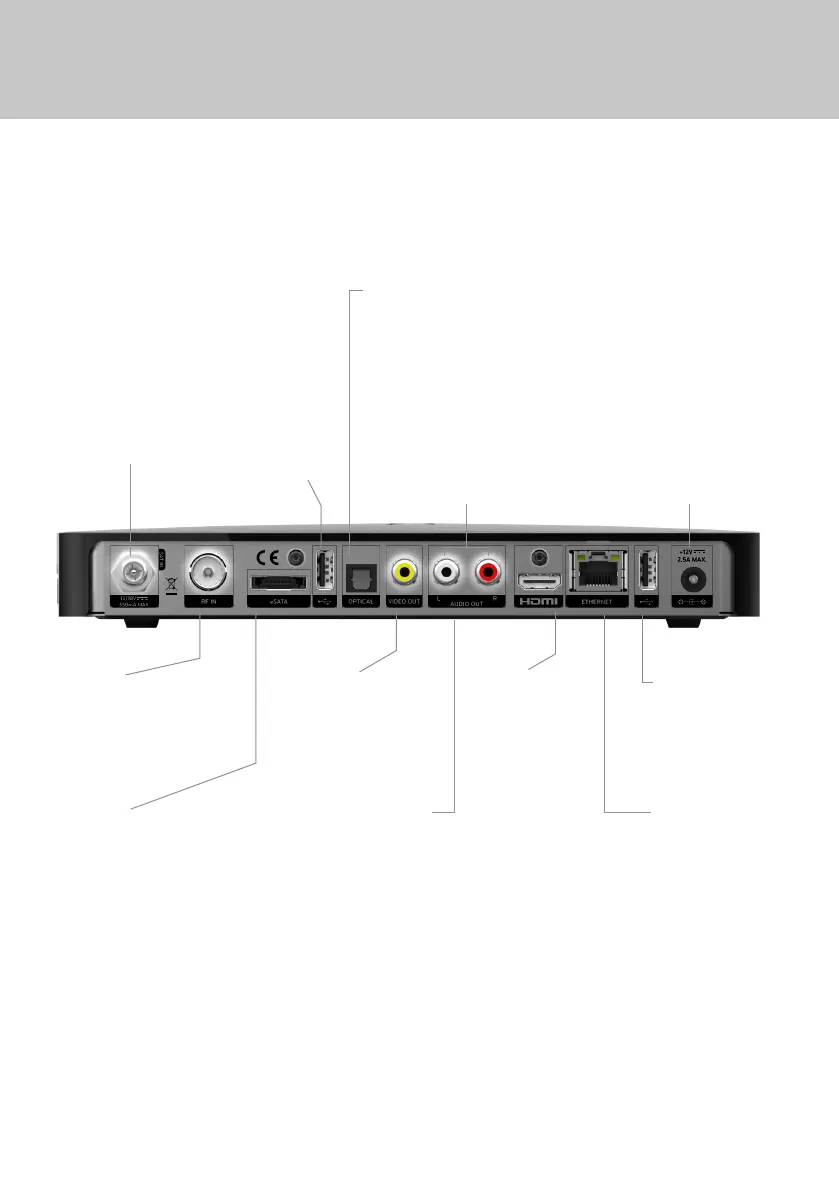

REAR VIEW
Power In
Do not connect the 12 V
power supply adapter here
until you have made ALL
the other connections.
VIDEO OUT
Connect a phono lead
(not supplied) between
here and a TV.
USB 2.0 port
Connect
an external
storage.
USB 2.0 port
Connect
an external
storage.
AUDIO OUT - L and R
(Left and right stereo audio)
Connect phono leads (not
supplied) between here and a TV
or hi- amplier.
OPTICAL
Connect a optical digital-
audio lead (not supplied)
between here and a home
theatre system.
SAT IN
Connect the cable from
your satellite dish here.
NOTE: All the interconnections between the rear panel of your set-top box and your other
equipment are safe, extra-low voltage circuits. However, you should always disconnect your set-top
box from the power supply before connecting or disconnecting other devices at the rear panel.
HDMI®
Connect a standard
HDMI cable between
here and an HDTV.
ETHERNET
For future use
(networking
applications and
Internet).
The model number,
serial number and
electrical rating of
your set-top box
are on a label on
its base.
eSATA
Connect an external
storage.
RF IN
Connect the lead
from your terrestrial
antenna.
