Nova PRO-TEK G3 - Page 39

39
2.

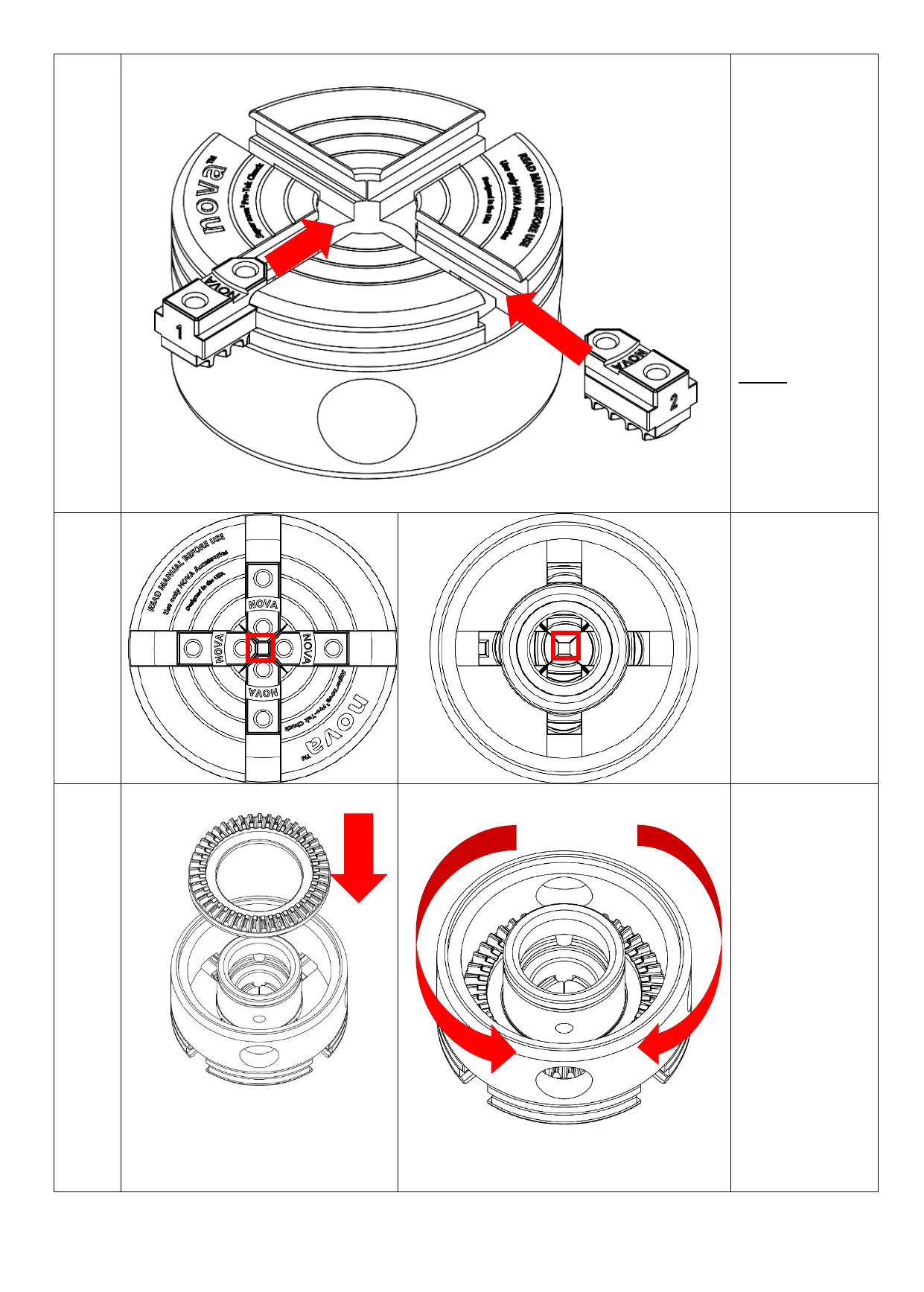

Insert the jaw
slides back into
the jaw
slideways of
the chuck
body.
Ensure the jaw
slides are
inserted in a
Counter-
Clockwise
order.
Note:
There is no
dedicated slot
assigned to
each of the jaw
slides.
3.
Position the
jaw slides in
the middle to
form a small
square at the
centre of the
chuck.
4.
Slide in the
scroll ring into
the chuck body
as shown in the
image.
Carefully turn
the scroll ring
until the scroll
teeth engages
with the jaw
slides.
