10
Cable Connections

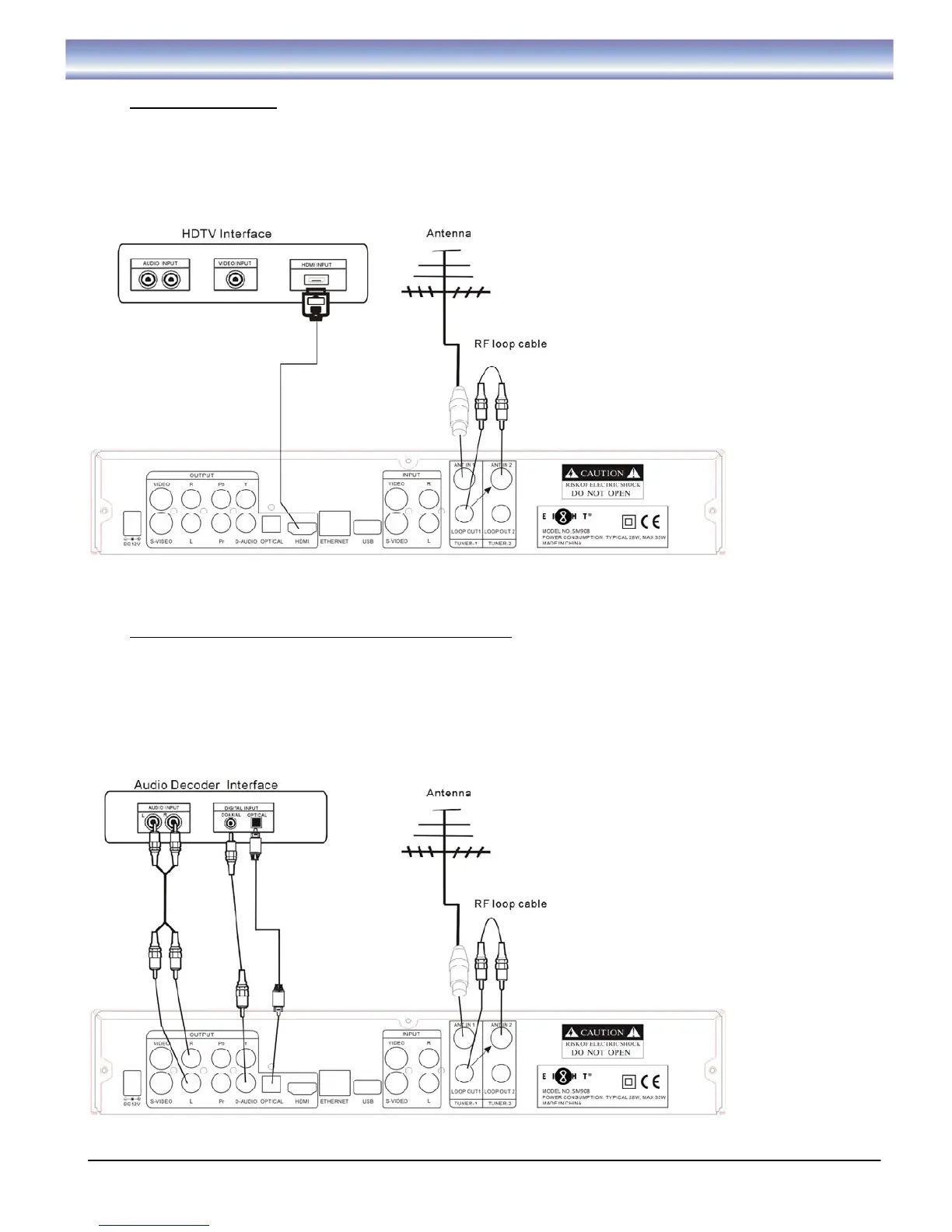

C) Connect HDMI Ports
1. Connect the antenna with ANT IN 1 of the unit.
2. Connect the RF loop cable via ANT IN 2 and LOOP OUT 1 interfaces.
3. Connect the external adaptor with the unit.
4. Connect the unit to TV via HDMI cable as the following figure.
D) Audio connection via Optical/Coaxial/ Audio L/R Ports
1. Connect the antenna with ANT IN 1 of the unit.
2. Connect the RF loop cable via ANT IN 2 and LOOP OUT 1 interfaces.
3. Connect the external adaptor with the unit.
4. Connect the unit to TV/Amplifier via AV cable as the following figure.
