Nova SM908

11
Cable Connections

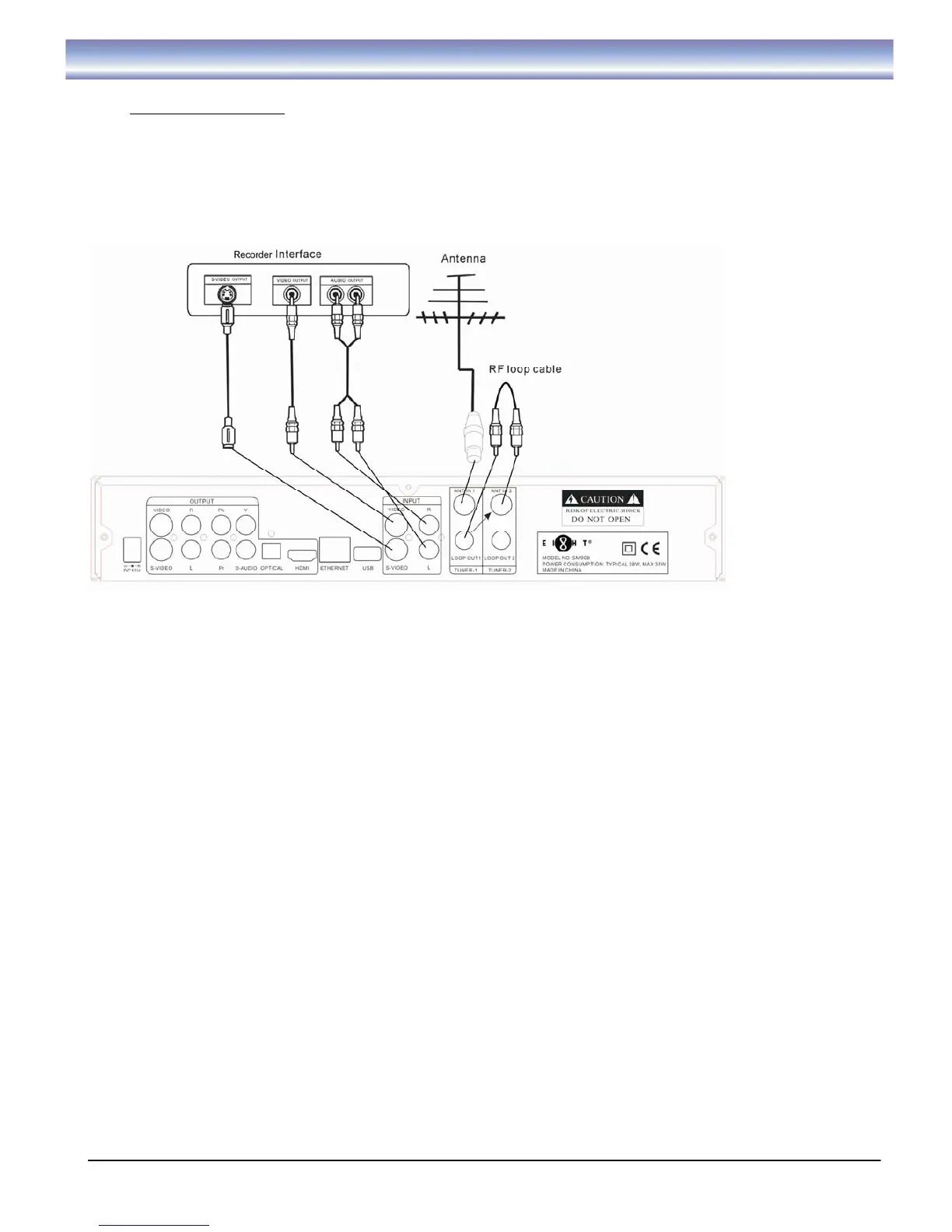

E) AV Input Connections
1. Connect the antenna with ANT IN1 of the unit.
2. Connect the RF loop cable via ANT IN 2 and LOOP OUT1 interfaces.
3. Connect the external adaptor with the unit.
4. Video Connection: Connect the unit via VIDEO/S-VIDEO(INPUT).
5. Audio Connection: Connect the unit via AUDIO L/R(INPUT).
