Cable Connections
The following figure shows cable connections required for TV and other related electrical equipment.

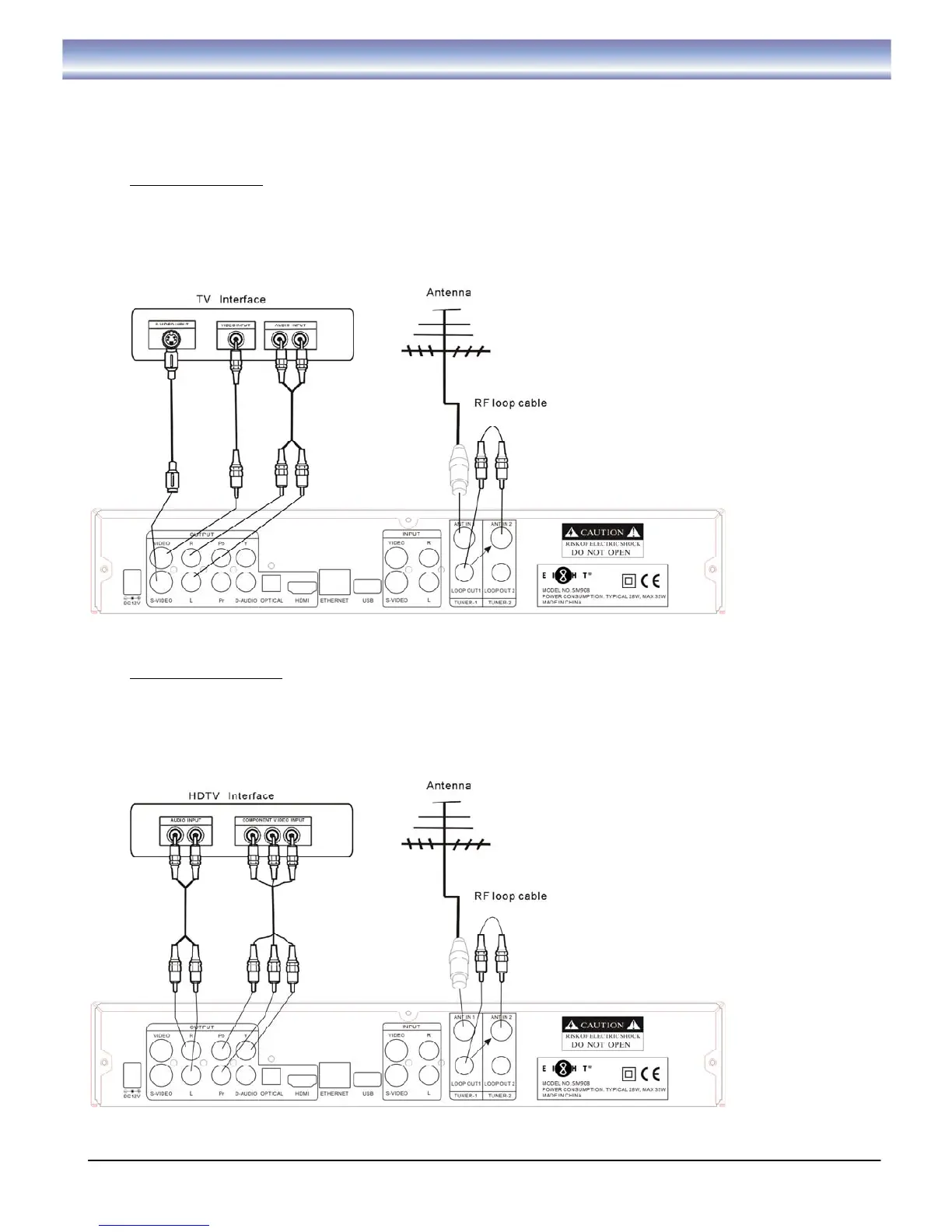

Connections Diagrams:
A) Basic Connections
1. Connect the antenna with ANT IN 1 of the unit.
2. Connect the RF loop cable via ANT IN 2 and LOOP OUT 1 interfaces.
3. Connect the external adaptor with the unit.
4. Connect the unit via VIDEO/S-AUDIO/AUDIO L/R.
B) Connect YPrPb Ports
1. Connect the antenna with ANT IN 1 of the unit.
2. Connect the RF loop cable via ANT IN 2 and LOOP OUT 1 interfaces.
3. Connect the external adaptor with the unit.
4. Connect to TV via YPrPb cable as the following figure.
