Nova SM908

5

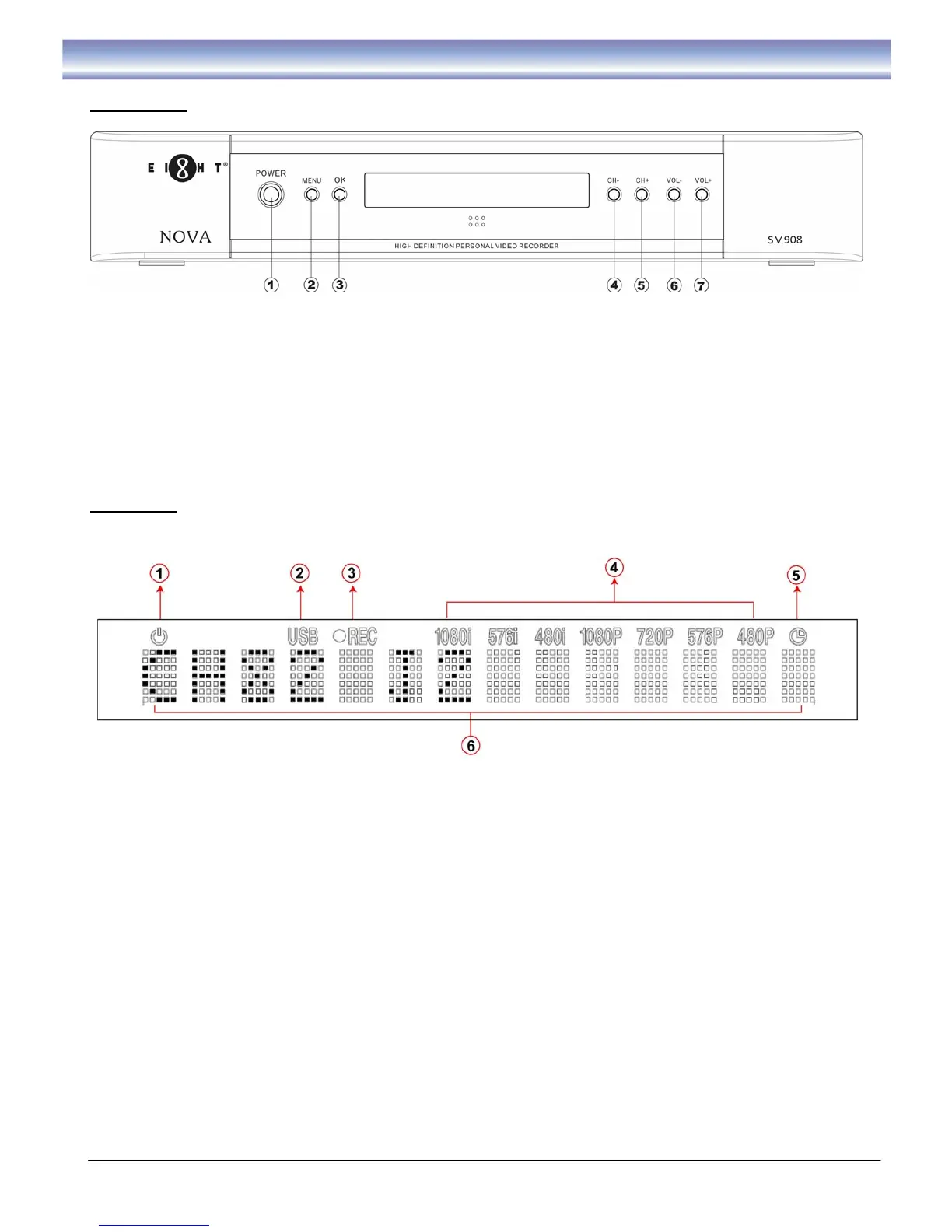

Front and Rear Panel Illustration
Front Panel
1. POWER: To turn the Stand-by mode ON/OFF.
2. MENU:
To enter into the Main menu. Press again to exit to previous menu.
3. OK:
To confirm the selected menu item.
4. CH-:
To change the Channel down in the live mode or to move the program down in the menu
mode.
5. CH+:
To change the Channel up in the live mode or to move the program up in the menu mode.
6. VOL-:
To decrease the level of the volume or to move right in the menu mode.
7. VOL+:
To increase the level of the volume or to move left in the menu mode.
VFD Panel
1. Stand-by: Unit is under Stand-by mode.
2. USB: Have connected with USB drive.
3. REC: Recording is processing.
4. Resolution: The resolution being used.
5. Timer: Pre-recorded Timer has been set.
6. Functions Display: Function being used or channel being viewed.
