Front and Rear Panel Illustration

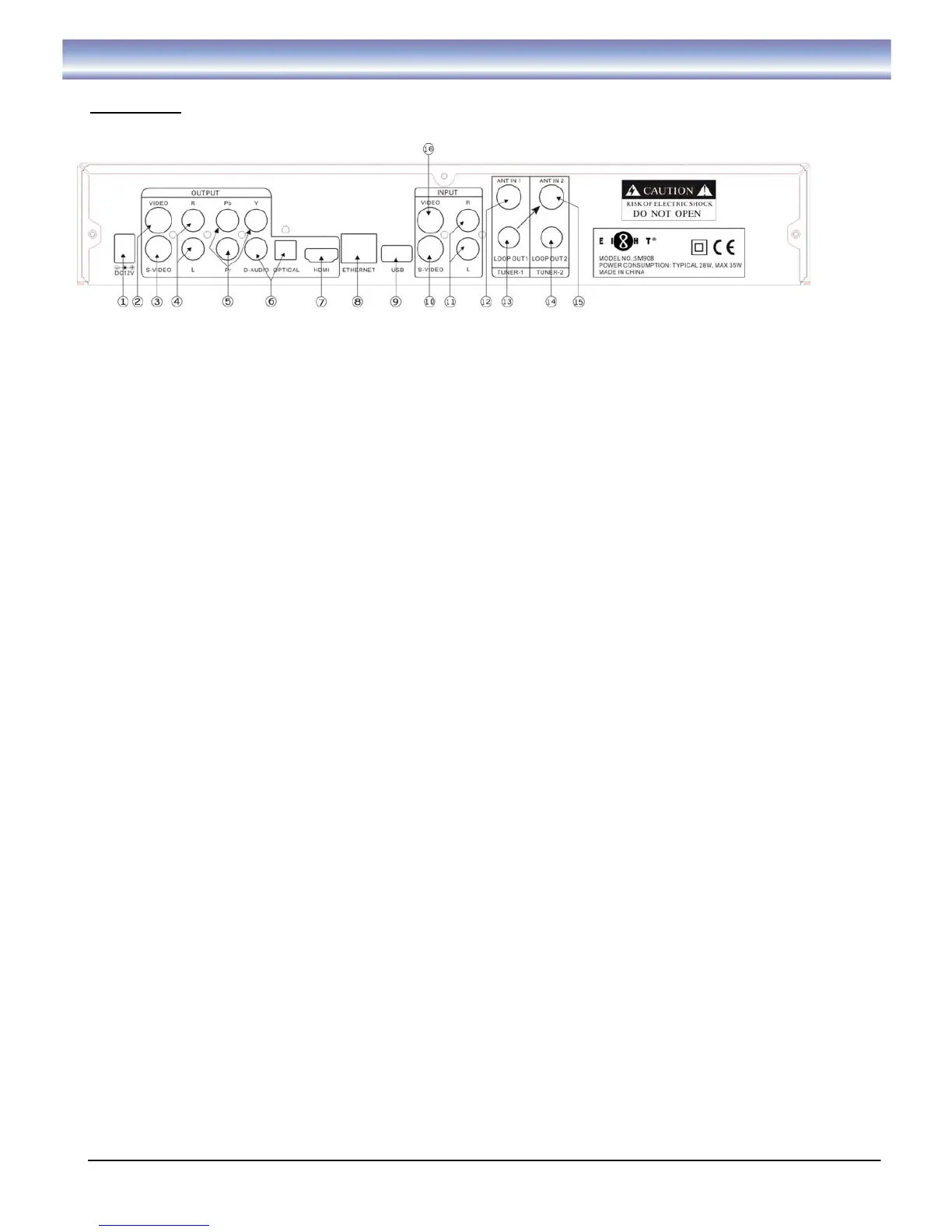

Rear Panel
1. DC 12V:
Power plug.
2. VIDEO(OUTPUT):
CVBS output to connect TV.
3. S-VIDEO(OUTPUT): S-Video output to connect TV.
4. AUDIO L/R(OUTPUT):
Audio output to connect TV.
5. YPbPr :
High definition video output to connect TV.
6. D-AUDIO/OPTICAL:
Digital audio output to connect home theater system.
7. HDMI:
High-Definition Multimedia Interface to connect TV receiver or home theater
system.
8. ETHERNET:
Connect to network (For firmware upgrade and MHEG 5 function only).
9. USB:
Connect to USB slot (for firmware upgrade only).
10. S-VIDEO(INPUT):
S-Video input to connect Audio Input signal from other STB/DVD.
11. AUDIO L/R(INPUT):
Audio input to connect Audio Input signal from other STB/DVD.
12. ANT IN1:
Signal input to connect antenna.
13. LOOP OUT1:
To connect RF Loopback cable.
14. LOOP OUT2:
RF signal output to connect other reception equipment.
15. ANT IN2:
To connect RF Loopback cable.
16. VIDEO(INPUT):
CVBS input to connect Audio Input signal from other STB/DVD.
