ML0021 August 15, 2018
137 Copyright 2018 Bitronics, LLC

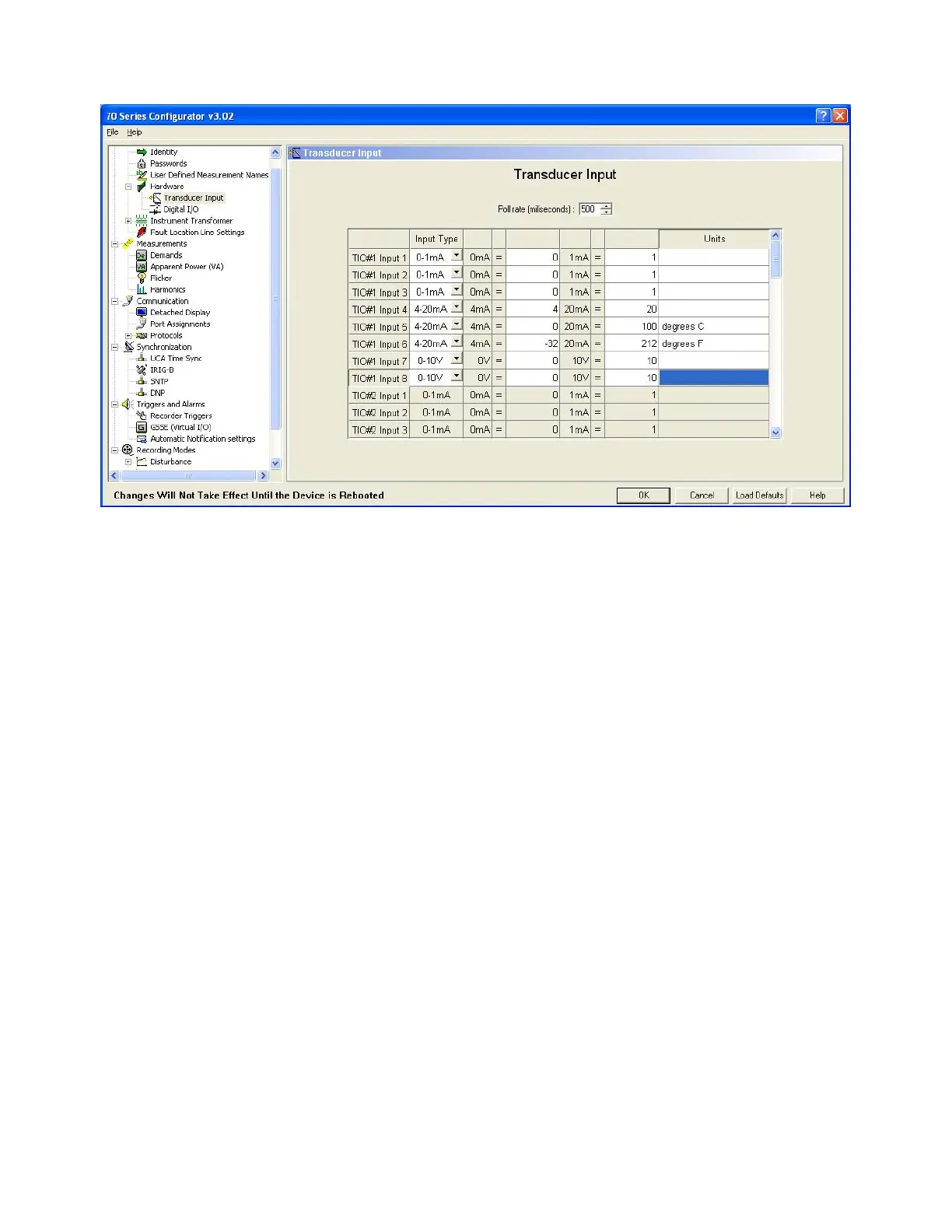

Figure 23 – 70 Series Configurator Software Transducer Input Configuration Screen
Suppose the device connected to input 5 is a temperature transducer with an output range
from 4 to 20mA that corresponds to a temperature of 0 to 100 degrees C. Configuring the
4mA setting to report as 0 and the 20mA setting to report as 100 will scale the value in the
M87x database to the primary units of the transducer. If this same transducer is
connected to input 6 and the scalings are changed to -32 and 212 respectively, the value
will appear in the M87x database in degrees F.
