Manual of NVBDH+/NVBDL+
cnc.prom.ua
PHASE U
WIDE GREEN PHASE V
WIDE BLUE PHASE W
RED HALL +5V
HALL U
GREEN HALL V
BLUE HALL W
BLACK HALL GND

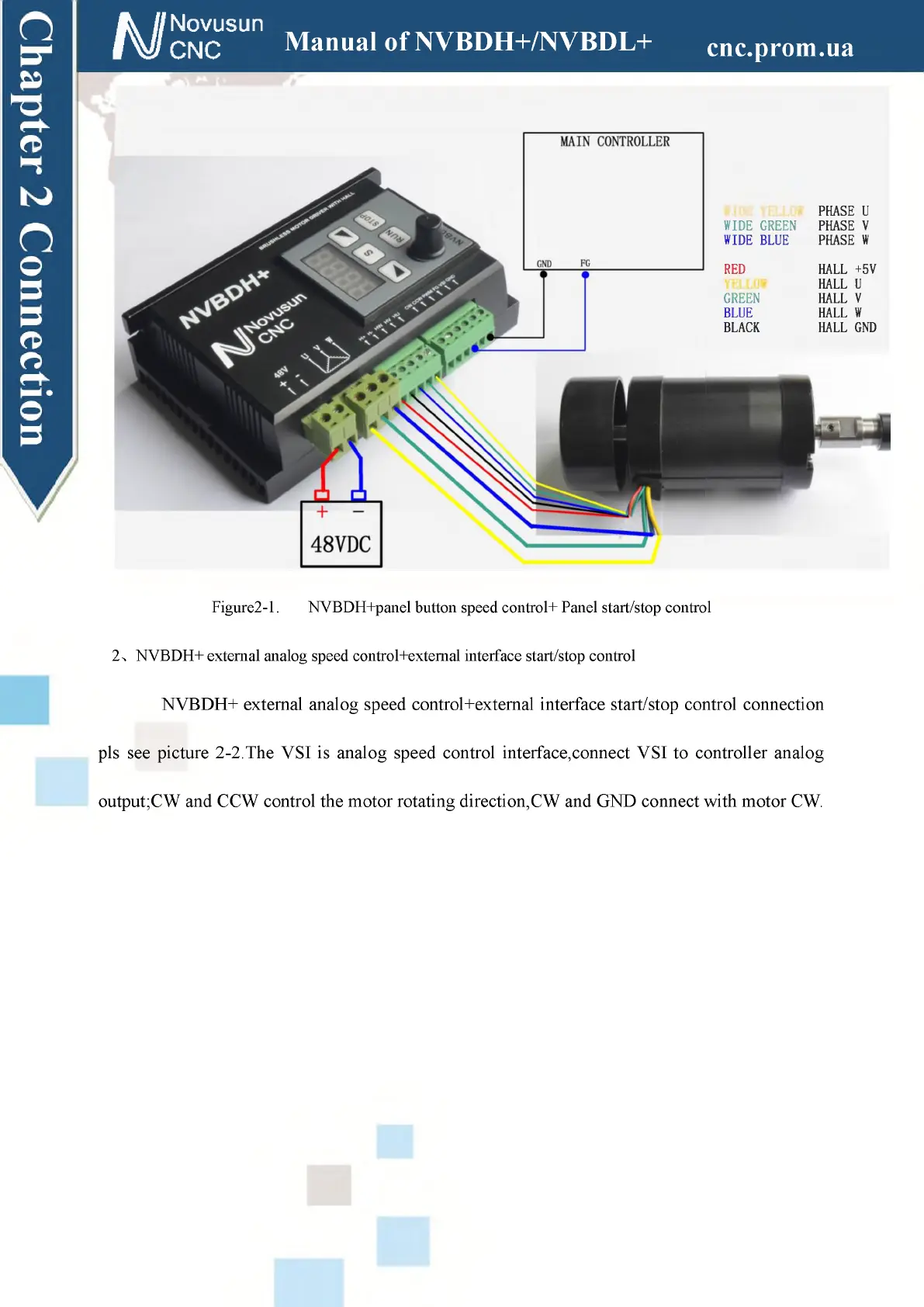

Figure2-1. NVBDH+panel button speed control+ Panel start/stop control
2^ NVBDH+ external analog speed control+external interface start/stop control
NVBDH+ external analog speed control+external interface start/stop control connection
pls see picture 2-2.The VSI is analog speed control interface,connect VSI to controller analog
output;CW and CCW control the motor rotating direction,CW and GND connect with motor CW.
