Manual of NVBDH+/NVBDL+
cnc.prom.ua

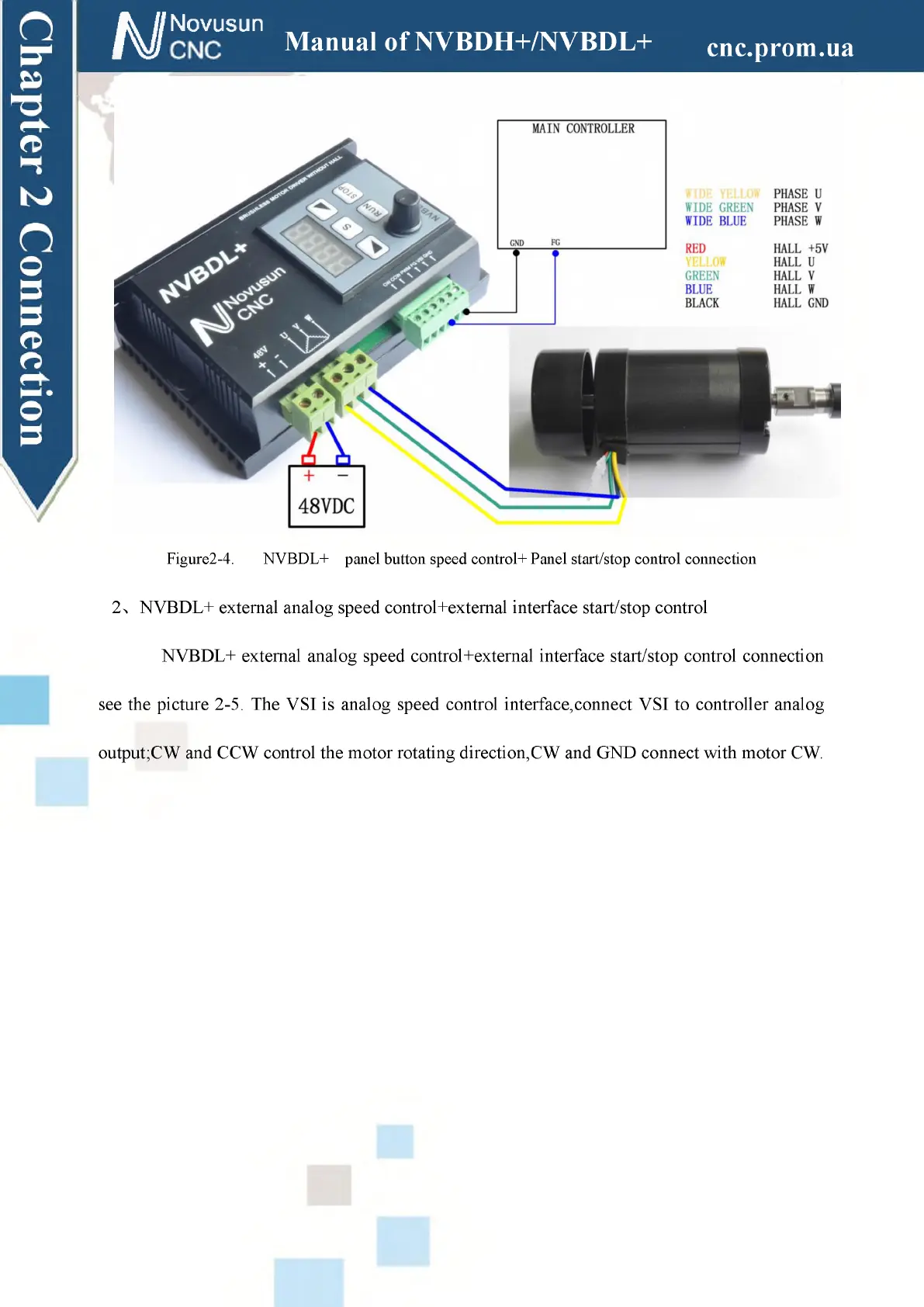

Figure2-4. NVBDL+ panel button speed control+ Panel start/stop control connection
2^ NVBDL+ external analog speed control+external interface start/stop control
NVBDL+ external analog speed control+external interface start/stop control connection
see the picture 2-5. The VSI is analog speed control interface,connect VSI to controller analog
output;CW and CCW control the motor rotating direction,CW and GND connect with motor CW.
