MAIN CONTROLLER

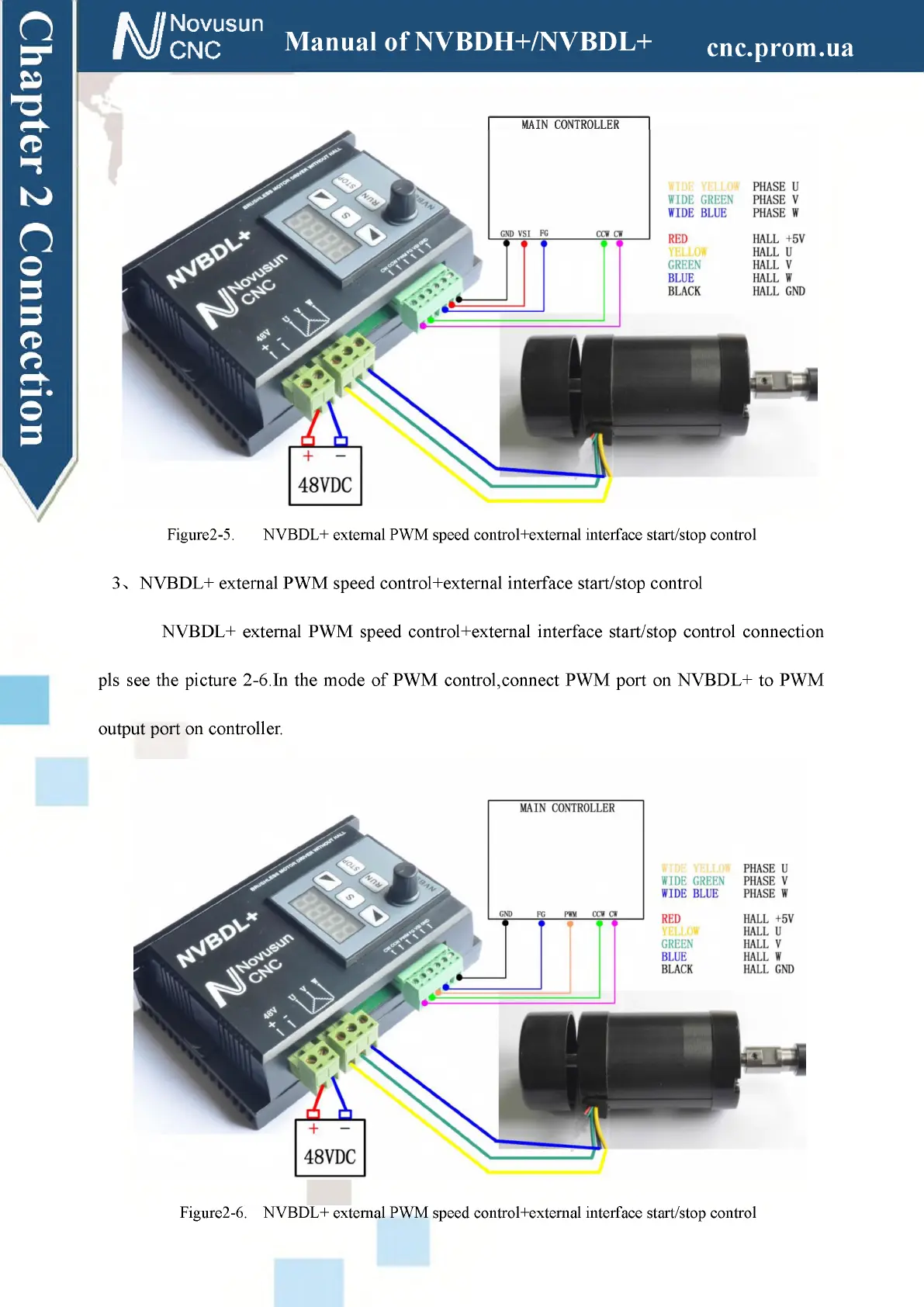

Figure2-5. NVBDL+ external PWM speed control+external interface start/stop control
3^ NVBDL+ external PWM speed control+external interface start/stop control
NVBDL+ external PWM speed control+external interface start/stop control connection
pls see the picture 2-6.In the mode of PWM control,connect PWM port on NVBDL+ to PWM
output port on controller.
Figure2-6. NVBDL+ external PWM speed control+external interface start/stop control
