HAMMER CONNECTION PORT
PH06, PH07, PH1, PH2, PH3, PH4

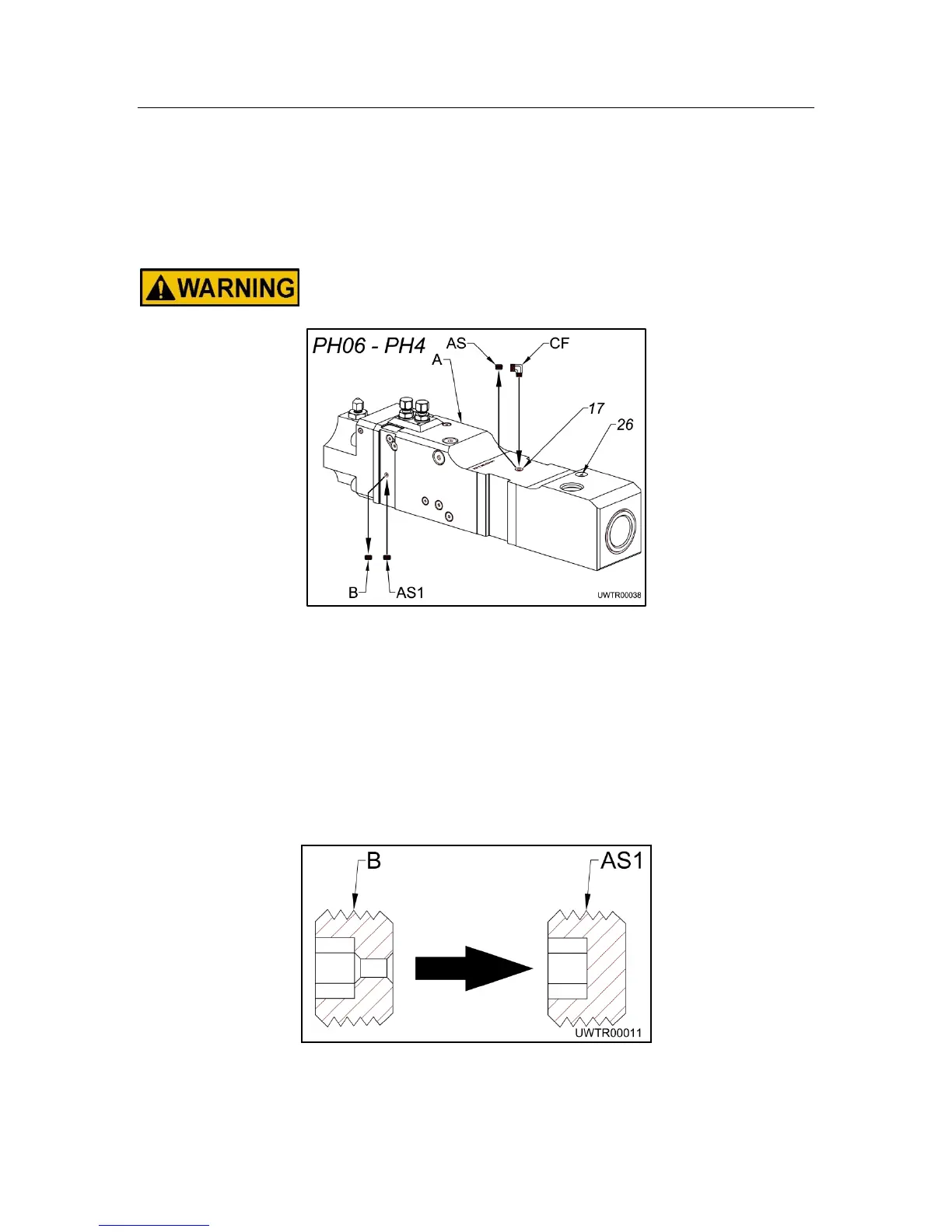

The underwater connection port (17) is located on the top side of the main body
(A).
1. Remove the pipe plug (AS) from the underwater port and install a heavy duty
adapter elbow (CF) to connect to the air hose fitting.
PH SERIES
DO NOT install the air connection into the port (26) on the top side of the main
body. This port is used for autolube. Using the autolube port for underwater
operation can result in damage to the hammer.
2. Remove the drain plug (B) from the hammer body (located on the left side of
the hammer body (see above) and replace with solid 1/8” NPT plug,
22001010 (AS1).
3. Attach air line from air compressor to the adapter fitting on the hammer.
Hoses must be secured and protected from damage during operation.
