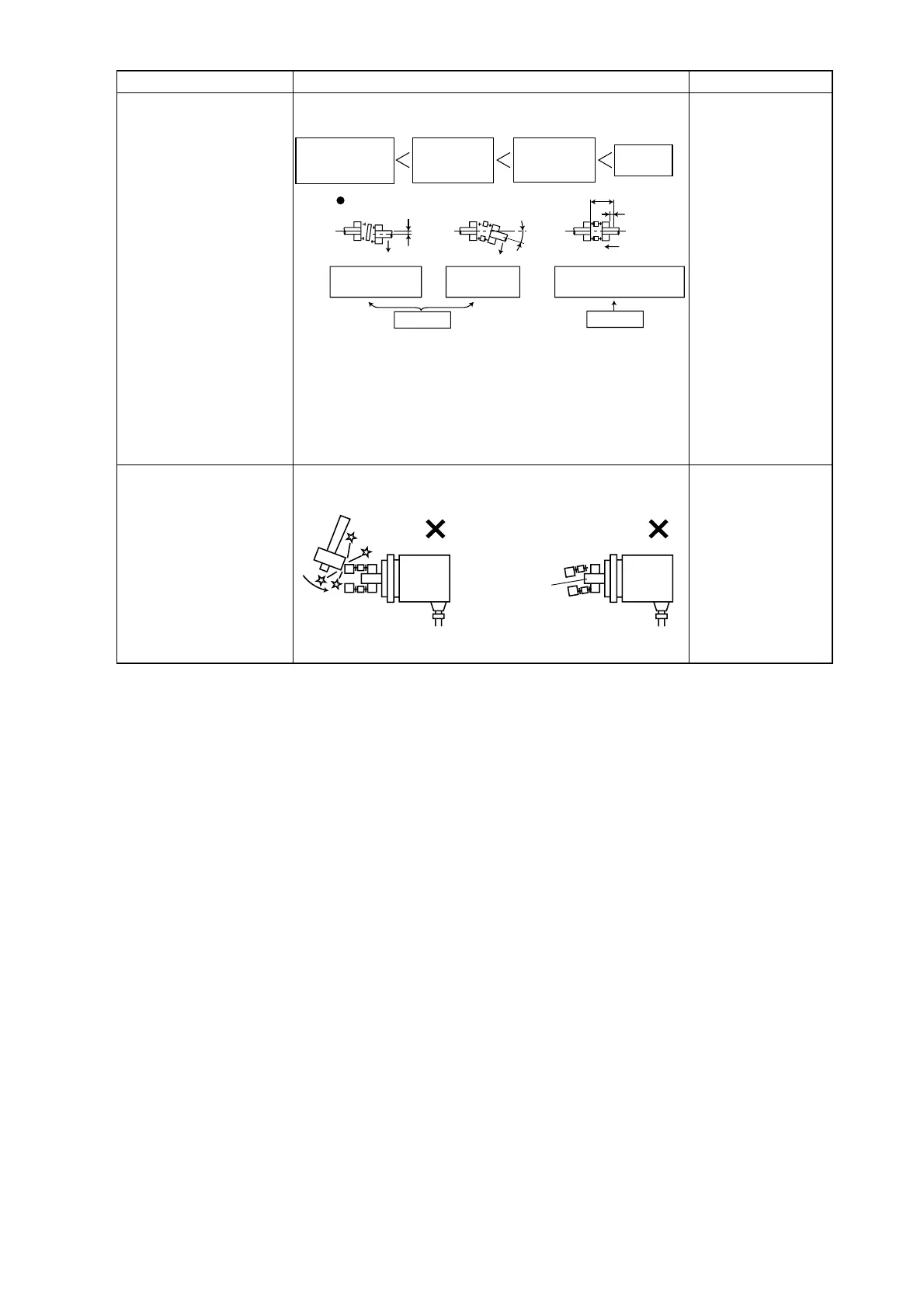

Coupling Device Selection and Handling
Item Description Remarks
(1) Coupling device
selection precautions
① Selection of the coupling device should be based on the
following factors:
② If the selected coupling device is larger than necessary
(when used in high vibration/shock environments), the load
which is applied to the shaft by the vibrations/shocks will be
increased by the weight of the coupling device.
③ Be sure to select a coupling device with an adequate
transmission torque surplus relative to the Sensor shaft’s
torque.
A larger than
necessary coupling
device will increase
the ‘mounting error’
shaft load
accordingly.
(2) Coupling device
installation precautions
① Never hammer the coupling device into position, and be sure
that it is mounted in a straight manner.
Excessive force may
deform the coupling
device, thereby
reducing is efficiency
and durability.
●B-5●
Amount of mounting
error caused by
machine design
permissible error
for coupling
device
Permissible shaft
load for coupling
device
Sensor shaft
load
Load produced by
eccentric condition
Load produred
by deflection
Force produced by
shaft-direction displacement
Radial load Thrust load
Mounting error :
Eccentricity
Deflection
Shaft-direction
displacement
Prescribed dimensiton
