NSD VARICAM VS-5FD-1 User Manual

7

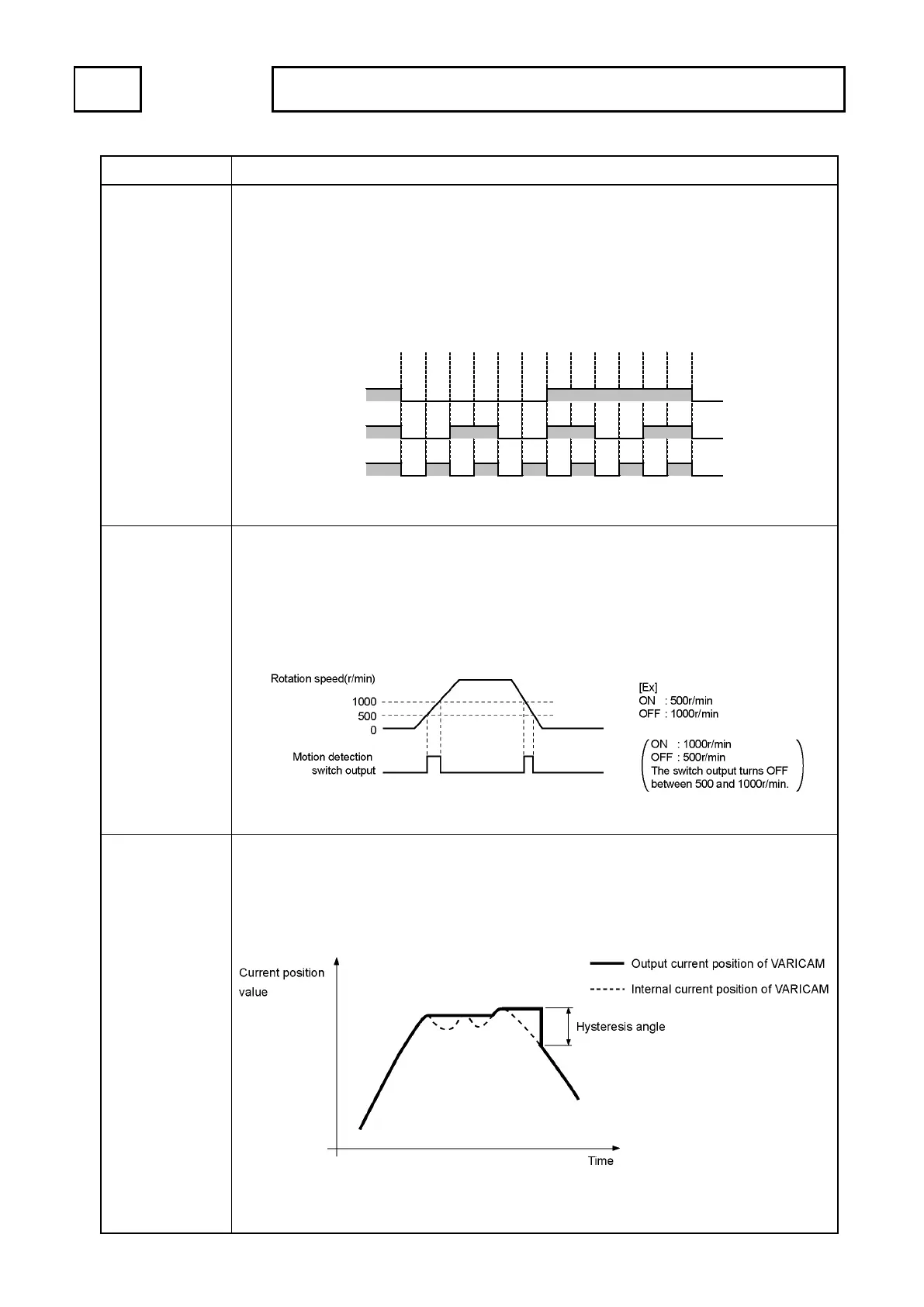

SUMMARY 1. SUMMARY
Function Description
Timing pulse
output
Outputs the pulse signal which is equally divided single rotation of the machine
(ABOSOCODER).
This function is used when connecting the parallel type external display unit (NDP).
The pulse number is selectable from 60, 180, or 360 per rotation by the parameter.
If this function is using, “Motion detection switch output function” will not be able to use because
these two functions are sharing an output pin.
●Current position value and pulse output
Current position value 359.5 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5
Timing pulse output ON
（60 pulse） OFF
Timing pulse output ON
（180 pulse） OFF
Timing pulse output ON
（360 pulse） OFF
For more setting details, refer to “8-4. Timing Pulse Function”.
Motion detection
switch output
This switch output turns ON or OFF when the rotation speed of the machine (ABSOCODER)
achieves the setting speed.
This function is very useful when confirming a stop or detecting an
error by detecting the
machine's movement.
If this function is using, “Timing pulse output function” will not be able to use because these two
functions are sharing an output pin.
For more setting details, refer to “8-5. Motion Detection Switch Function”.
Hysteresis
When the direction of ABSOCODER shaft rotation reverses, this function keeps the current
position value before reversing until the value exceeds the setting one.
Uses this function when the current position value is unstable.
If the switch output repeatedly turns ON or OFF, this function can stabilize the switch output.
For more setting details, refer to “8-7.
Hysteresis Function”.
