NSD VARICAM VS-5FD-1 User Manual

42
OPERATION 7. HOW TO USE BASIC FUNCTION
7. HOW TO USE BASIC FUNCTION
VARICAM can operate easily with operation instruction of this chapter.

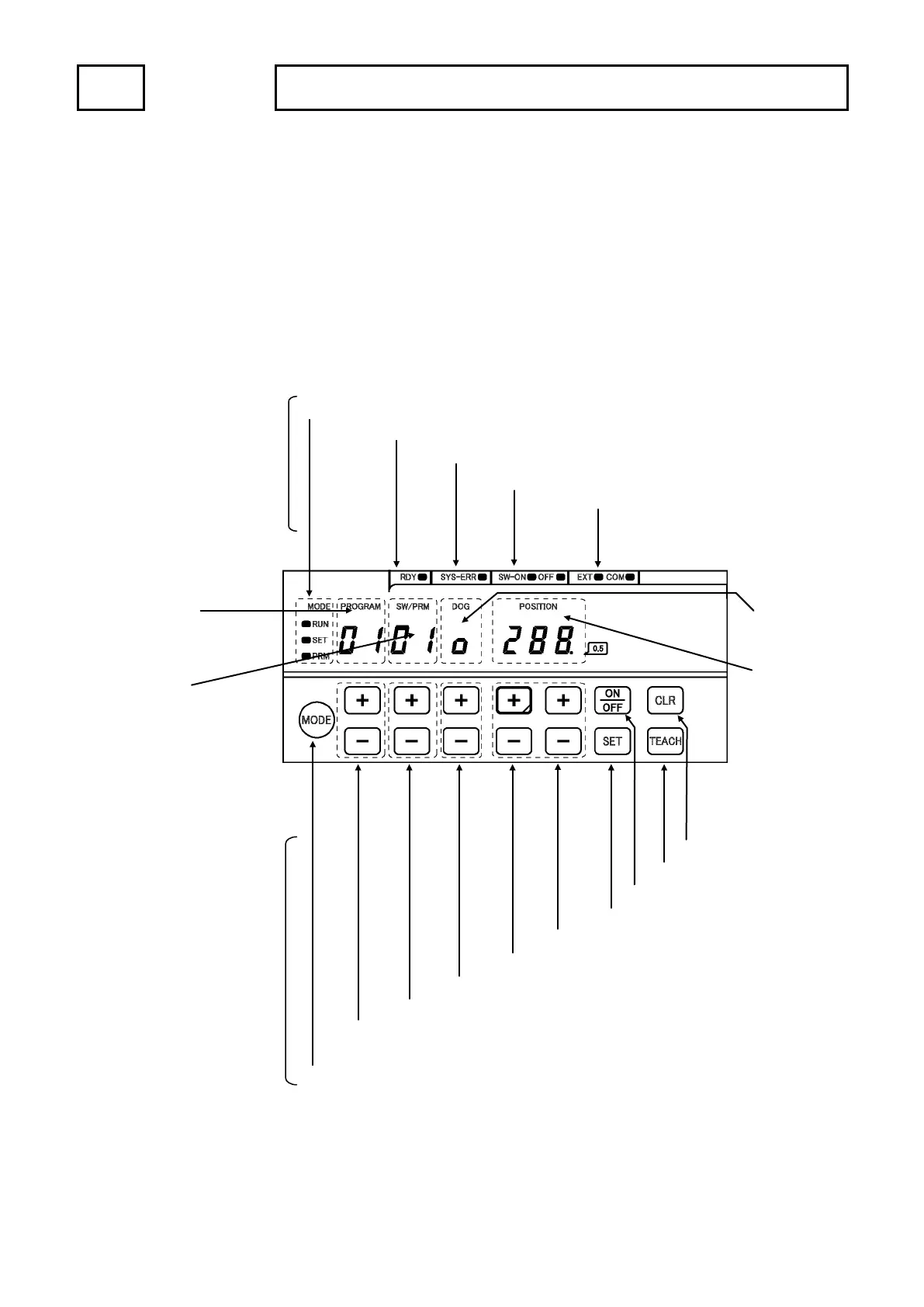

7-1. Nomenclature and Function of the Panel Side
Describes nomenclatures and functions of the panel side
①
Mode indicator (RUN, SET, PRM)
② System ready indicator
③
System error indicator
④ ON/OFF indicator
⑤
Program selection indicator
(Serial communication indicator)
⑲ CLR key
⑱
TEACH key
⑰ ON/OFF key
⑯
SET key
⑮ POSITION key (units: 0.5°)
⑭
POSITION key (units: 10
°
)
⑬ DOG key
⑫ SW / PRM key
⑪
PROGRAM key
(Not available for VS-5F, VS-5F-1.)
⑩
MODE key
●Control key
●LED indicator
⑨
POSITION
Position
●7-segment LED display
⑥
PROGRAM
Program No.
(Not available for VS-5F(-1).)
⑦
SW / PRM
Switch/ Parameter No.
⑧
DOG
Dog No.
