PRG (Program) button
Foot Control
cord and plug
Speed/Torque button
Forward/Reverse
button
Speed Control pedal
Program Number Gear Ratio
Coolant flow level
Speed/Torque Bar Graph
Forward/Reverse
Speed/Torque
Coolant solution flow
volume button
a Coolant Flow
Displays the selected coolant solution flow volume level. The selected flow volume level is
indicated by one of 5 levels of light. No light indicates the coolant solution flow is off.
s Program Number
Displays the selected program number.
d Gear Ratio
Displays the gear ratio of the handpiece.
f Forward/Reverse Indicator
Displays the rotational direction of the micromotor.
g Speed/Torque
Displays the selected speed and torque. Normal speed is shown when the unit is switched on
and also when a program is changed. To display speed, press the [Speed] key on the Control
Unit. To display torque, press the [Torque]. Speed and torque can also be displayed by pressing
the Speed/Torque button on the foot control.
✻ When the gear ratio is a constant speed or when using the Speed Increasing Handpiece,
the torque is not displayed.
h Speed/Torque Bar Graph
During operation displays an approximate percentage indication of the actual operating speed
or torque relevant to the preset maximum speed or torque. When all bars illuminate, the
operating speed or torque is at maximum. When bars are half illuminated then the operating
speed is approximately 50% of the preset speed.

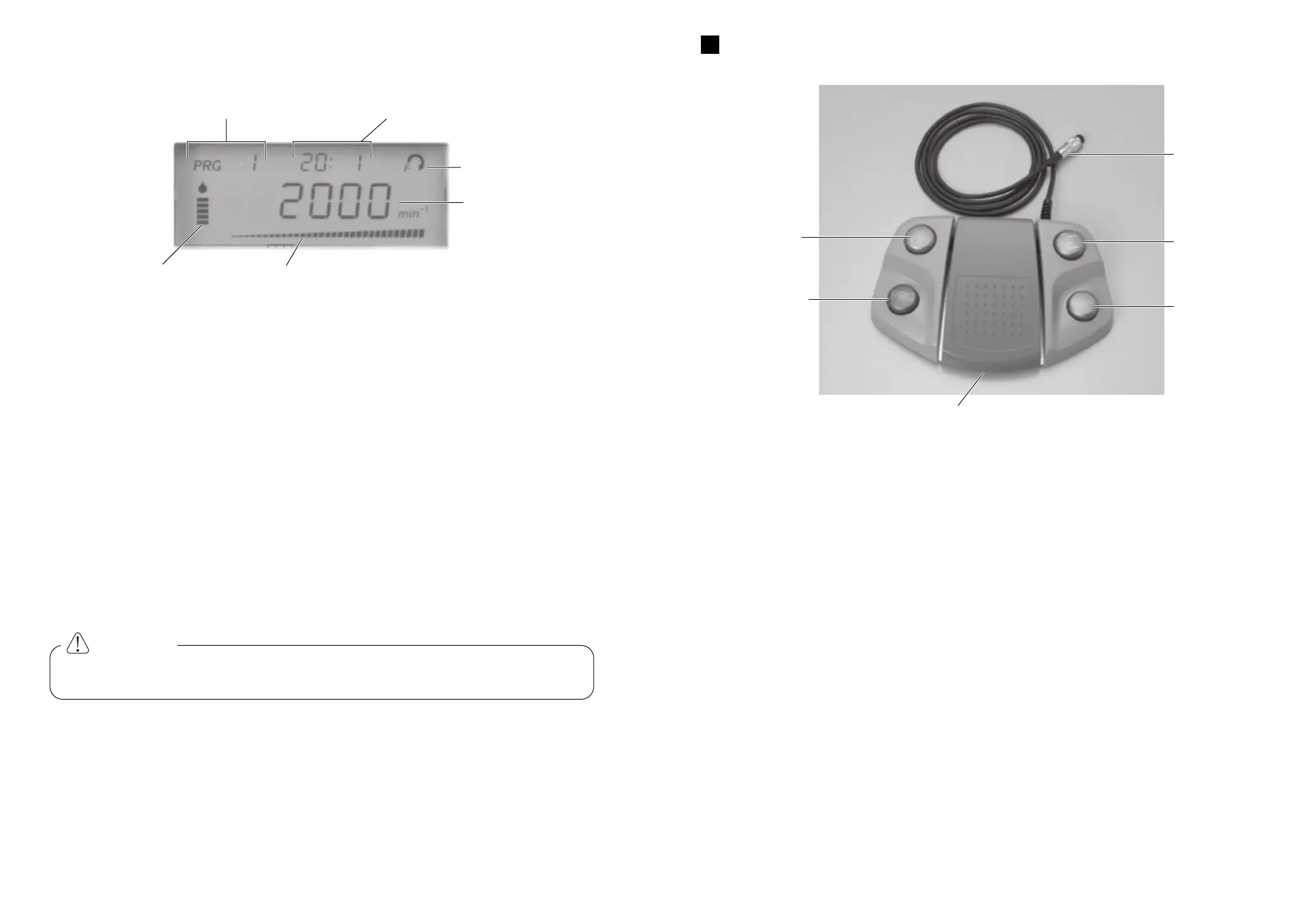

S LCD display on the unit console
r t
CAUTION
The LCD display panel is produced from liquid crystal and should always be
treated with care.
a Coolant Solution Flow Volume button
This button is used to select the volume of coolant solution flow. Five levels are available and
each level may be increased by one step pressing this button once only. The step above level 5
and below level one turns the flow off.
s PRG (Program) button
This button is used to select the desired program number. Program numbers will always ascend
each time this button is pushed and will roll from No. 10 program onto No. 1 program. When the
button is pushed too many times and the wrong program is selected, press the button for 1
second more. It could get back to one program before the selected program.
d Speed Control Pedal
This pedal is used to start and stop the micromotor and to vary the speed during operation.
f Forward/Reverse button
This button is used to change the rotational direction of the micromotor. Push once to change
rotational direction.
g Speed/Torque button
This button is used to change the LCD display from Speed to Torque or vice versa. Push once
only to change the display.
Foot control
4
