NTI ENVIROMUX Series Installation Manual

5
Installation

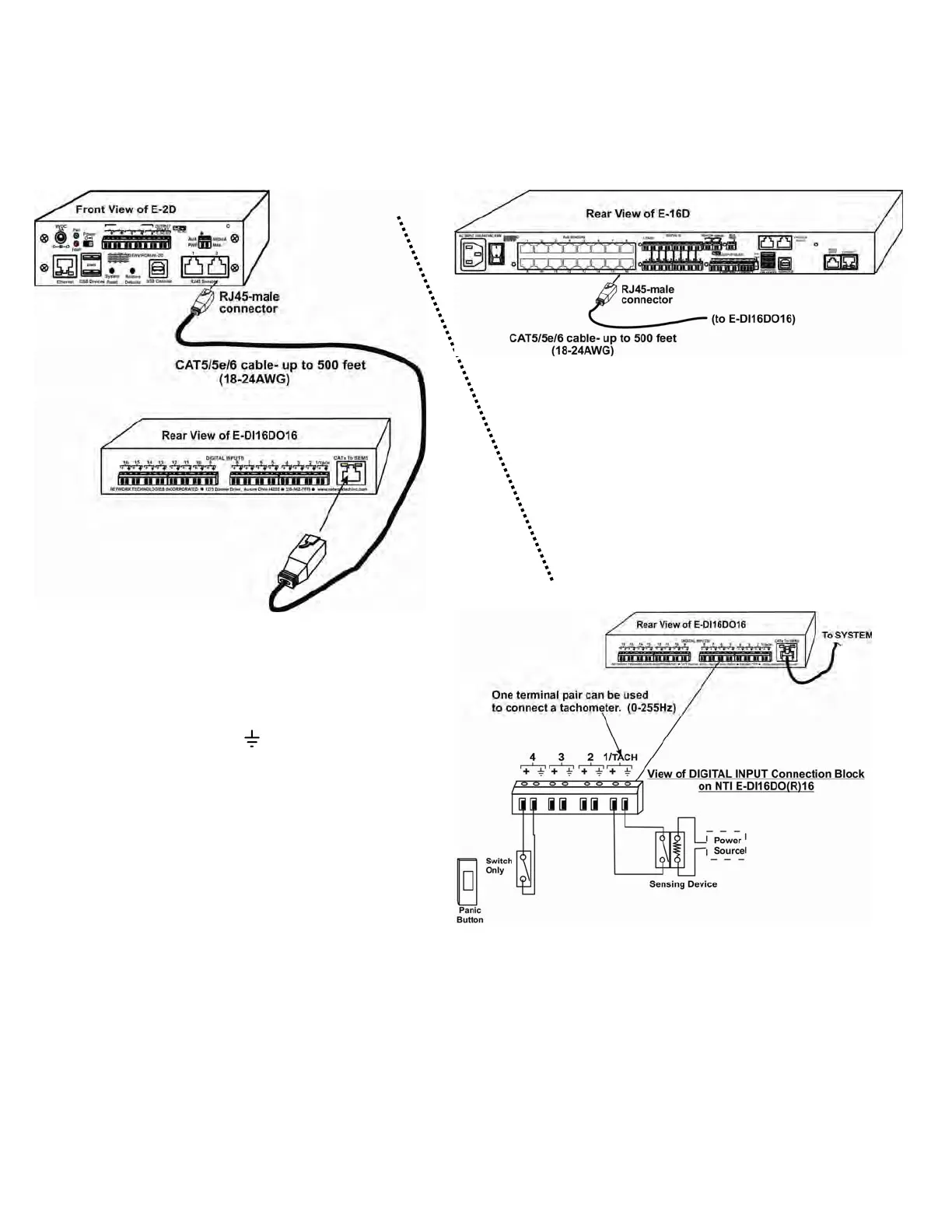

1. Connect the Expander to the SYSTEM using up to 500 feet (152.4 m) of 18-24AWG CAT5, 5e, or 6 cable.
2. Dry contact sensors can then be connected to the
Expander using 26-16AWG wire. Up to 16 sensors
can be connected.
Two-wire switch-only type sensors can be connected to
the plus (+) and ground ( ) terminals of each of 16 sets
of terminals.
Terminal pair 1 is specially designed for connection of
a tachometer/anemometer with a range of 0-255Hz (like
the E-WSS Wind Speed Sensor).

NTI ENVIROMUX Series Specifications

General

Product Type	Environmental Monitoring System
Temperature Range	-40°C to 85°C
Power Supply	12V DC or 24V AC
Network Interface	Ethernet 10/100 Mbps
Alarm Notifications	Email, SNMP
Sensor Types Supported	Temperature, Humidity, Water, Airflow
Power	12V DC or 24V AC
Operating Temperature	-40°C to 85°C
Mounting	Wall or Rack Mount
Communication Interfaces	Ethernet
Data Logging	Yes
Compliance	CE, RoHS
