6

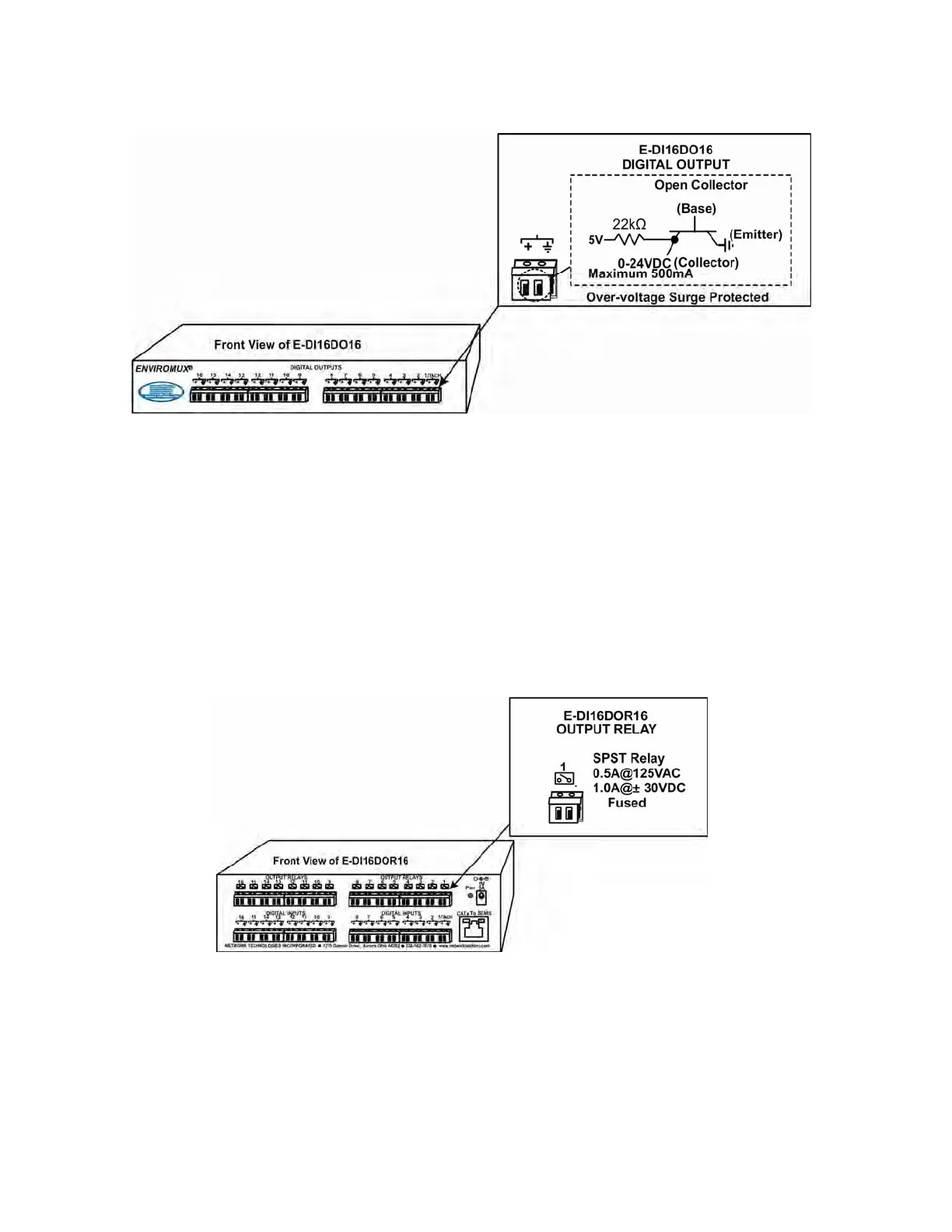

3a. Digital Outputs on the E-DI16DO16 have an open-collector design for the control of up to 16 relays, solenoids, LEDs, and
other devices that operate at voltages between 0-24VDC (maximum 500mA). Devices connected to Digital Outputs will display in
the “Sensors” list on the summary page as Type "Remote Digital Outputs" in the SYSTEM web interface for assignment to sensor
alert responses.
3b. Output Relays on the E-DI16DOR16 have a normally-open SPST relay design for the control of up to 16 different devices that
operate at maximum 125VAC (0.5A maximum) or maximum 30VDC (1.0A maximum). Devices connected to Output Relays will
display in the 'Sensors" list on the summary page as Type "Remote Digital Outputs" in the SYSTEM web interface for assignment
to sensor alert responses.
