Lx Series Installation and Operation Instructions │Trinity Lx
11
n
Figure 3-2(a) Lx150-200 Models

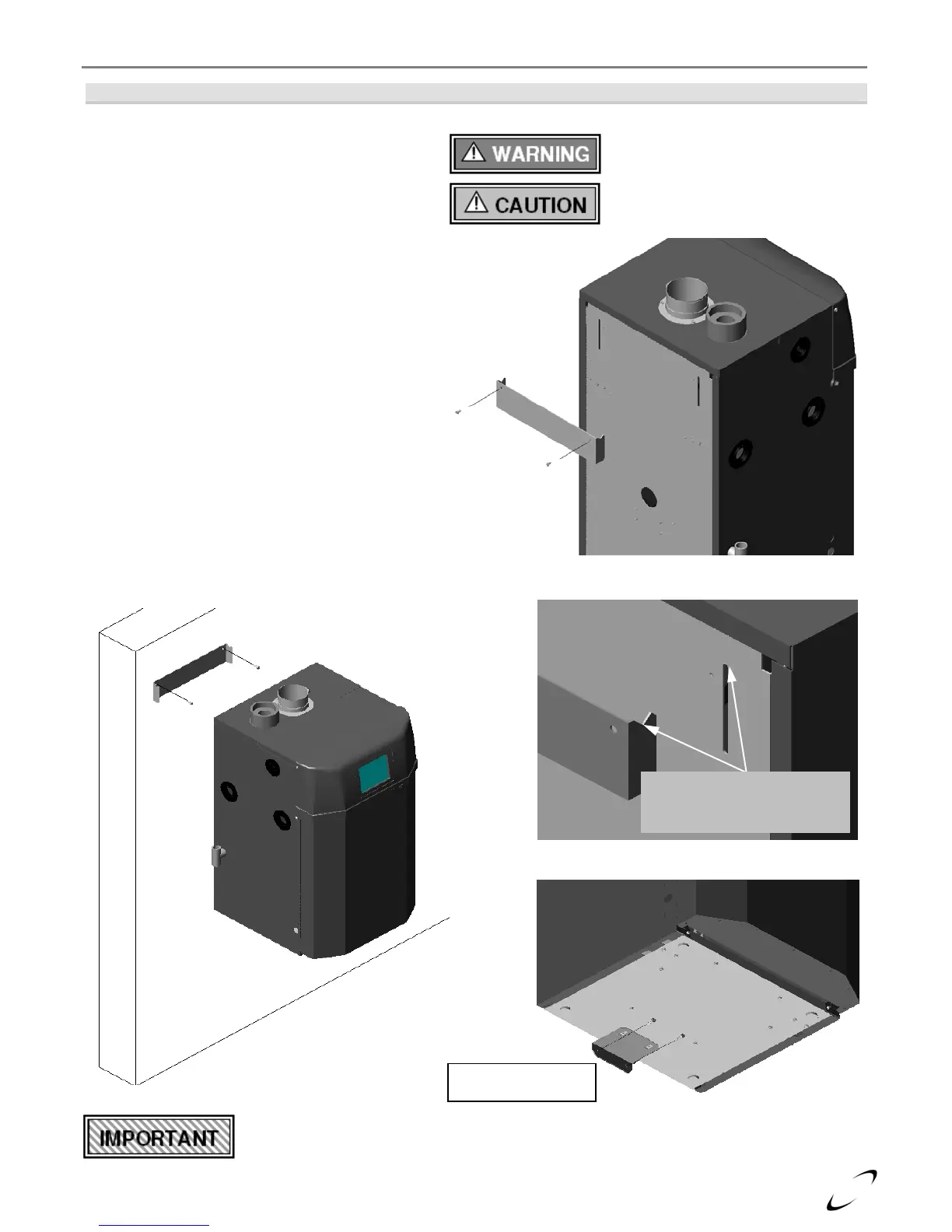

Wall Mounting Installations
n Remove the upper wall mount bracket from the
back of the appliance.
Failure to follow instructions may
result in fire, serious injury, or death.
This unit requires two people to lift it
or damage and injury may result.
o Secure the upper wall mount bracket to a solid
wall using field supplied lag screws (anchors
when mounting on a concrete wall) that are
adequate to support the weight of the
appliance. Ensure the bracket is mounted in
the level position. Refer to Table 2-1
Specifications for appliance weight.
p Mount the appliance to the bracket by aligning
the slots in the back of the appliance with the
hooks protruding from the wall bracket. The
top of the slots must rest at the bottom of the
groove in the hooks of the wall mount bracket.
q Pull the bottom of the unit away from the wall
to allow the installation of the lower wall
mount bracket (included with appliance). The
bracket will snap into place using the slots
provided in the bottom of the unit (ensure the
snaps lock into place, once installed the bracket
should not be easily removed).
Water Heaters require "Mandatory Wall Mounting Protection". Refer to Section 1.0 in
Appendix C, "Water Heater Applications:
Plumbing & Wiring Instructions".
p
q
o
Ensure that the top of each
slot rests on the bottom of the
grooves in the wall bracket.
Bottom Bracket is in
Lx Installation Kit Box
To Next Page
