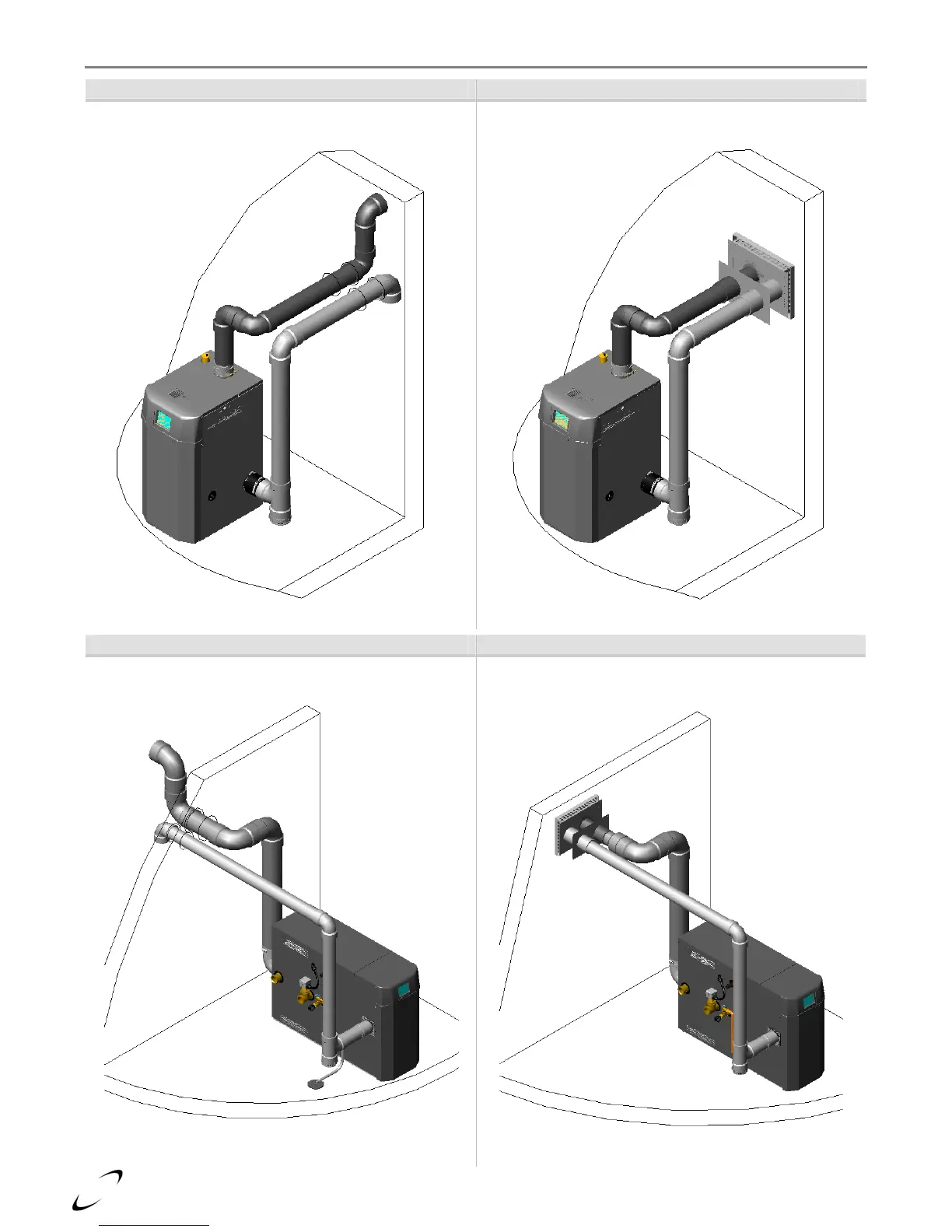

Figure 4-7(a) Lx300-400 Figure 4-7(b) Lx300-400
Two-Pipe Side Wall Termination Two-Pipe Side Wall Termination (Optional Kit)
Figure 4-8(a) Lx500-800 Figure 4-8(b) Lx500-800
Two-Pipe Side Wall Termination Two-Pipe Side Wall Termination (Optional Kit)
