Trinity Lx │Installation and Operation Instructions Lx Series
74

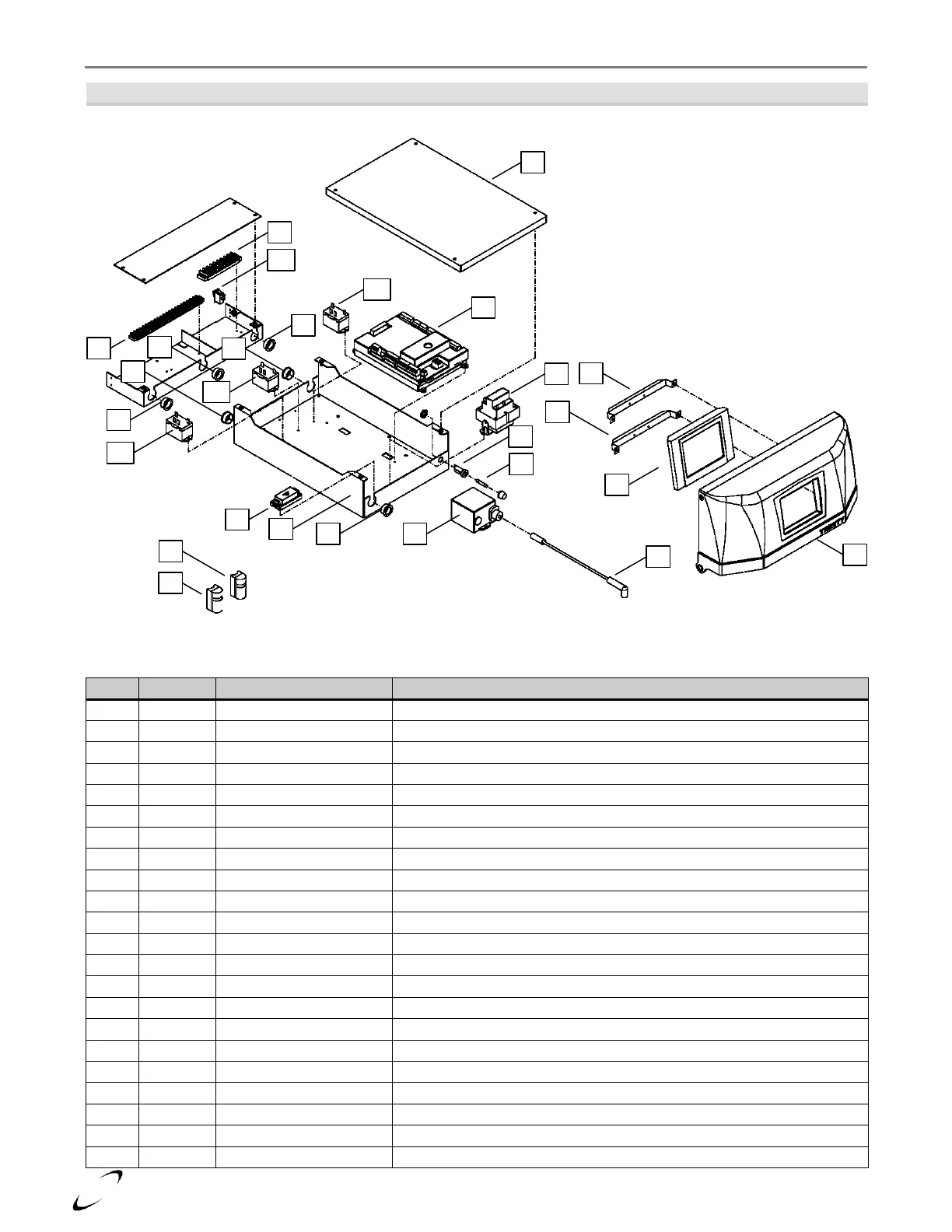

Figure 16-9 Electrical Housing, Controller, and Display Module (Lx500-800)
Table 16-1 Parts List: Trinity Lx
Item
Part #
Models
Description
1
82657
150
Premix burner 135.8 (Lx100-150; not Lx150E)
1
82658
150E, 200
Premix burner, 200.6 (Lx150E, Lx200)
1
84207
300
Premix burner, (Lx300)
1
83338
400, 500
Premix burner (Lx400-500)
1
84383
600
Premix burner (Lx600)
1
84134
700, 800
Premix burner (Lx700-800)
2
82761
150–500
Premix Burner Gasket (Lx150-500)
2
84133
600–800
Premix Burner Gasket (Lx600-800)
3
82771
150, 150E, 200
Extended Air Tube (Lx100-200)
3
83195
300–500
Extended Air Tube (Lx300-500)
3
84132
600, 700, 800
Conical Air-Gas Inlet Pipe / Stabilor (Lx600-800)
4
82766
150–500
Blower Gasket (Lx150-500)
4
84026
600–800
Blower Gasket (Lx600-800)
5
82052
150
EBM Blower RG130 (Lx100-150, not Lx150E)
5
82661
150E, 200, 300
EBM Blower RG148/1200-3633 (Lx150E-300)
5
82994
400
EBM Blower RG148/Enhanced (Lx400)
5
84322
500
EBM Blower NRG137 (Lx500)
5
84006
600–800
EBM Blower G1G170 (Lx600-800)
6
82054-2
150, 150E, 200, 300
CVI Venturi Gasket (Lx150-300)
6
83106
400
O-ring, Venturi to Blower (Lx400)
6
84084
600–800
O-ring, Venturi to Blower (Lx600-800)
7
82054-1
150, 150E, 200
CVI Venturi 01 (Lx150-200)
51
52
57
56
81
71
70
68
69
60
61
59
62
63
58
65
54
103
58
102
102
102
70
58
58
58
