AVT-(R/X)
Installation Manual

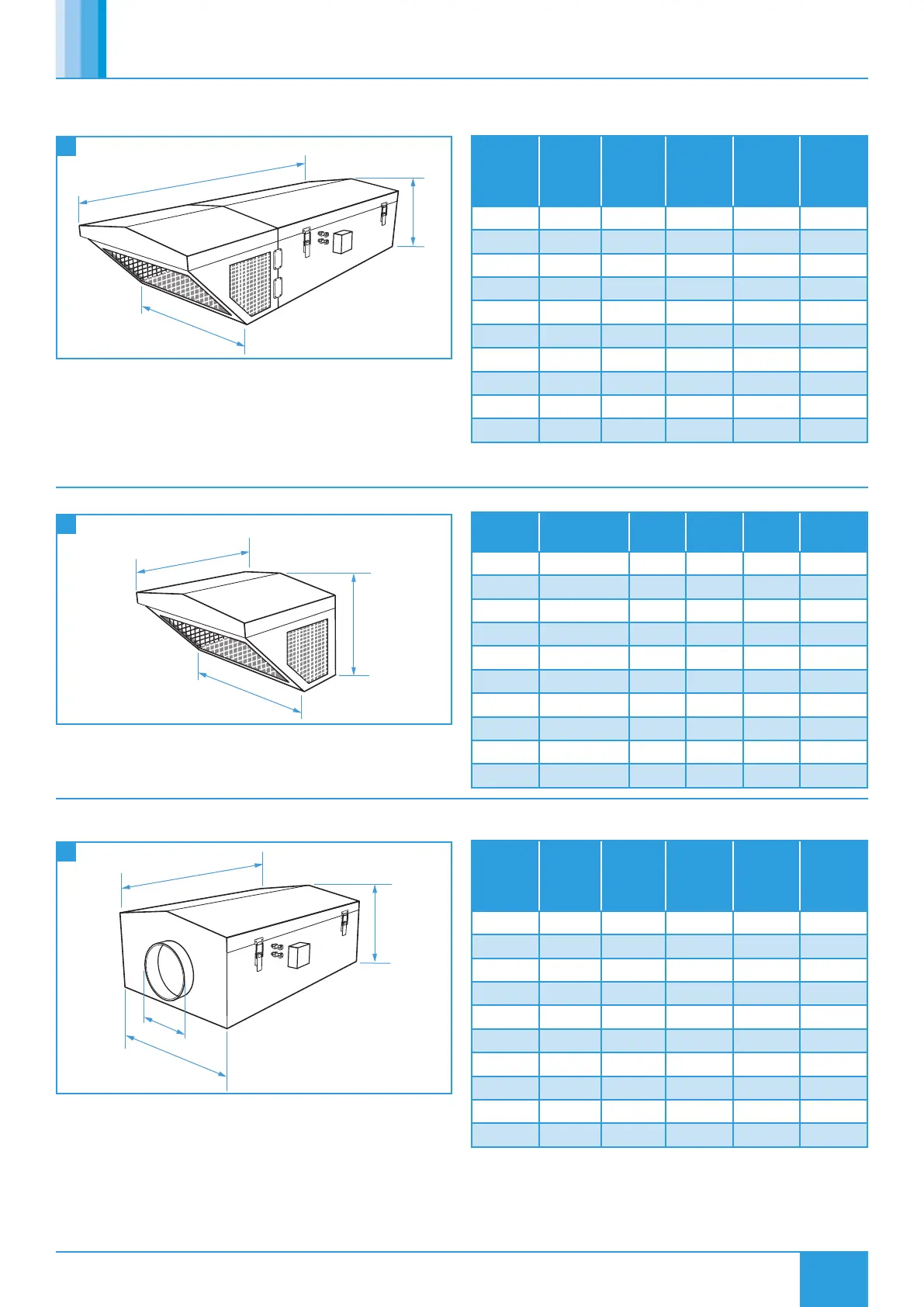

4.2 Dimensions (mm) & Weights (kg)
4.2.1 AVT-R Units
4
AVT-R DImensions
A
B
C
4.2.2 AVT-R Terminal Module
B
A
C
5
AVT-R Terminal Dimensions
4.2.3 AVT-X Units
A
C
D
B
6
AVT-X Dimensions
Unit Code A
†
(inc.
5mm end
panels)
B
‡
C D Weight
(kg)
AVT1-R 1620 716 393 250 64
AVT2-R 1620 716 393 250 65
AVT3-R 1620 716 393 250 66
AVT4-R 2066 857 502 315 111
AVT4L-R 2066 857 502 315 110
AVT5-R 2066 857 656 315 114
AVT6-R 2575 1045 656 400 161
AVT7-R 2575 1045 709 400 164
AVT8-R 2956 1278 709 500 262
AVT9-R 2956 1278 709 500 229
†
Add 50mm for unit + spigot length.
‡
Add 40mm for unit + control width.
Unit Code Terminal
Module Code
A B C Weight
(kg)
AVT1-R AVT1-R-MOD 500 716 393 8
AVT2-R AVT2-R-MOD 500 716 393 8
AVT3-R AVT3-R-MOD 500 716 393 8
AVT4-R AVT4-R-MOD 600 857 502 11
AVT4L-R AVT4L-R-MOD 600 857 502 11
AVT5-R AVT5-R-MOD 600 857 502 11
AVT6-R AVT6-R-MOD 744 1045 656 16
AVT7-R AVT7-R-MOD 744 1045 656 16
AVT8-R AVT8-R-MOD 784 1278 709 19
AVT9-R AVT9-R-MOD 784 1278 709 19
Unit Code A
†
(inc.
5mm end
panels)
B
‡
C D Weight
(kg)
AVT1-X 1120 716 393 250 56
AVT2-X 1120 716 393 250 57
AVT3-X 1120 716 393 250 58
AVT4-X 1466 857 502 315 100
AVT4L-X 1466 857 502 315 99
AVT5-X 1466 857 656 315 104
AVT6-X 1831 1045 656 400 146
AVT7-X 1831 1045 709 400 149
AVT8-X 2172 1278 709 500 236
AVT9-X 2172 1278 709 500 203
†
Add 100mm for unit + spigot length.
‡
Add 40mm for unit + control width.
