Nuga NM-5000 - Frame Assembly Guide


How to connect frame
legs to the handle frame.

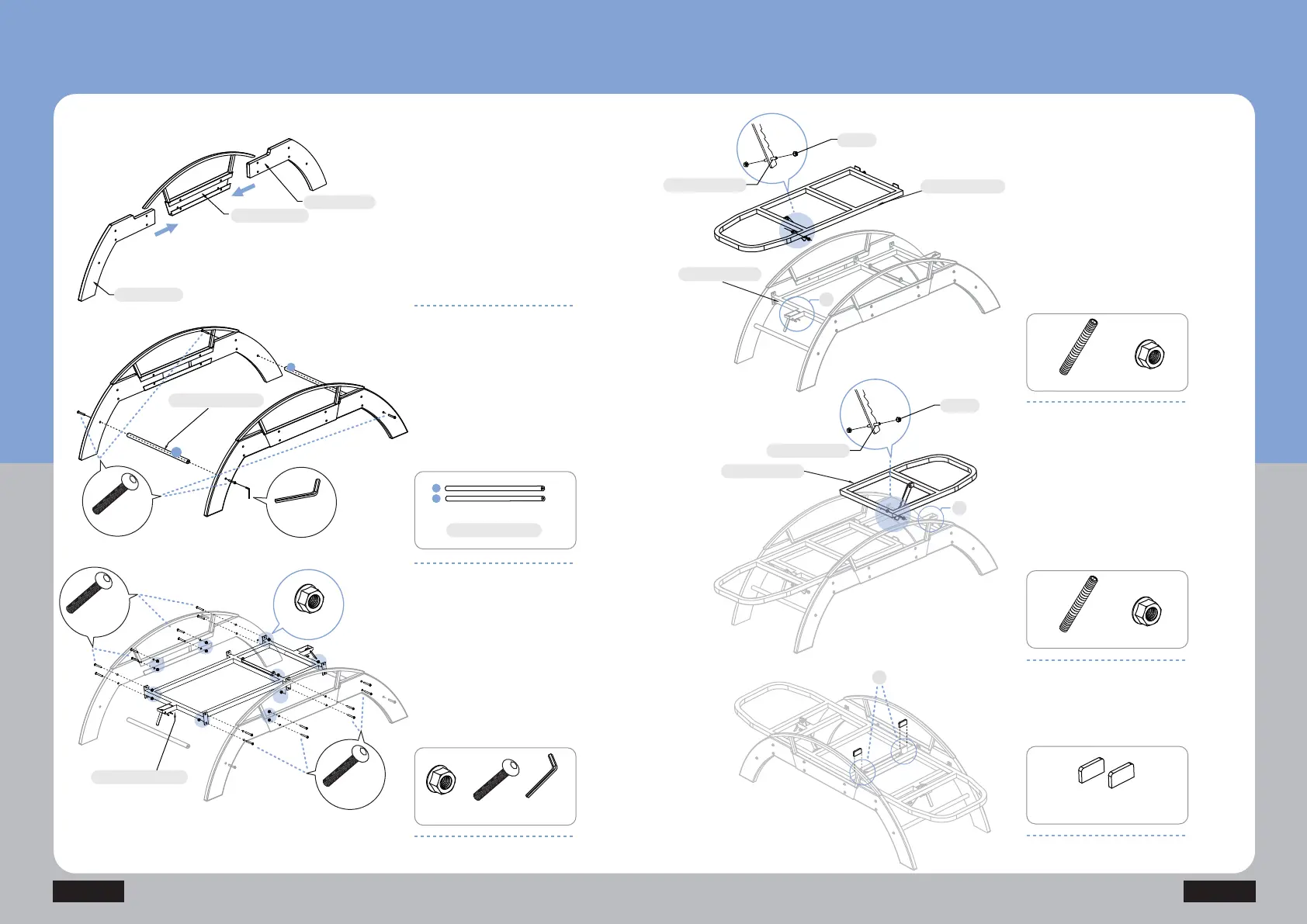

Insert frame legs (2 pieces) into
the handle frame as shown in
the picture.
Please note that the instructed
corner direction should be
oriented to the same direction
during the insertion.
Assemble frame legs and the
handle frame in the same way.
How to fix the main angle
frame
Place the main angle frame on the
base frame as shown in the picture.
Fasten a set screw bolt C (1 piece)
and nut B (2 pieces) after inserting
the hook into ‘Q’ here.
Completely fasten screws here, which
have not been completely fastened
in No. 3 assembly sequence.
How to fix the sub angle
frame.
Place the sub angle frame on the
base frame as shown in the picture.
Fasten a set screw bolt C (1 piece)
and nut B (2 pieces) after inserting
the hook into ‘Q’ here.
Completely fasten screws here.
How to insert the buffer rubbers.
Insert the buffer rubbers into ‘R’’ in
the picture.
How to fix frame legs.
Fix 2 pieces of frame leg fixing
pipes with 4 pieces of bolt A as
shown in the picture and then
fix it with a piece of L-wench (T-1).
Do not fasten bolts completely
here.
Main base frame
Fix the main base frame with
bolt A (16 pieces) and nut B
(16 pieces) using an L-wrench
as shown in the picture.
Do not fasten bolts completely
here.







ⲱ2Ⲳ


ⲱ3Ⲳ
ⲱ2Ⲳ
How to Assemble the Product Frame
Handle frame
L-wrench
T-1
L-wrench
T-1
Bolt A
Bolt A
Bolt A
Bolt A
Set screw bolt C
Set screw bolt C
Set screw bolt C
Nut B
Nut B
Nut B
Set screw bolt C
Nut B
Nut B
Nut B
Main base frame
Sub angle frame
Frame leg fixing pipe
Frame legs
Frame legs
Frame leg fixing pipe
Main base frame
Hook
Hook
Buffer rubbers

NM-5000

Main angle frame
Product Installation and Preparations
