MEGAWATT CARBON BIKE MANUAL | 5 4
Recommended Torque Values
Drawing Number Part Number Torque
46 Swing Link Pivot Bolt 14Nm
38 Lower Swing Link Bolt 19Nm
20 Horst Link Pivot Axle 12Nm
21 Horst Link Bolt 12Nm
32 Main Pivot Axle 19Nm
25 Upper Battery Bolts 8Nm
26 Lower Battery Bolt 12Nm
17 Motor Bolt 35mm 15Nm
18 Motor Bolt 46mm 15Nm
16 Lower Motor Mount Bolt Drive-Side 15Nm
19 Shock Bolt 15Nm
Thread Lock
Drawing Number Part Number
38 Lower Swing Link Bolt
21 Horst Link Bolt
32 Main Pivot Axle
25 Upper Battery Bolts
26 Lower Battery Bolt
17 Motor Bolt 35mm
18 Motor Bolt 46mm
16 Lower Motor Mount Bolt Drive-Side
19 Shock Bolt
47 Swing Link Pivot Axle
15 Lower Motor Mount Bolt None-Drive
Grease
Drawing Number Part Number
46 Swing Link Pivot Bolt
38 Lower Swing Link Bolt
20 Horst Link Pivot Axle
32 Main Pivot Axle
NOTE: Use medium strength threadlockwe recommend loctite 243

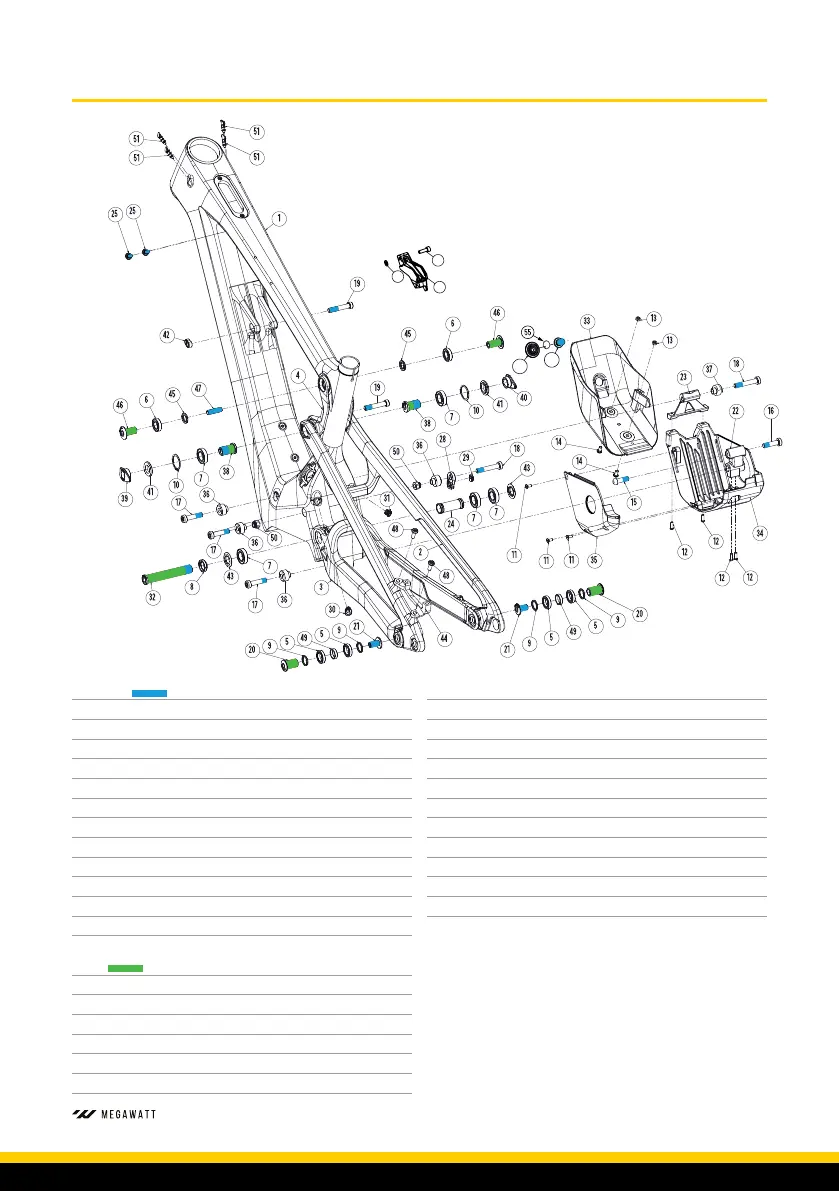

TORQUE, GREASE AND DIAGRAMS
