MEGAWATT CARBON BIKE MANUAL | 8

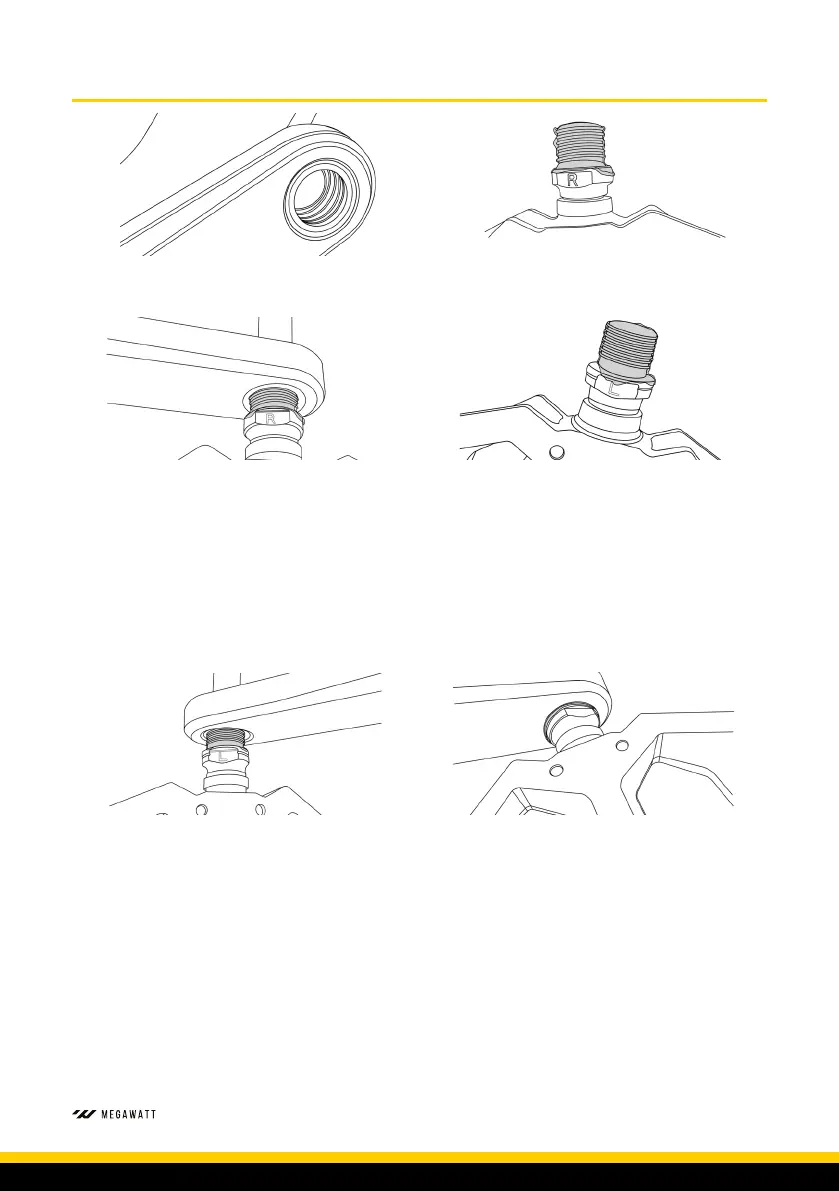

FITTING
1. Check the threads on your crankarm are clean and have
no damage.
2. Take your RIGHT pedal and grease the axle.
3. Line the pedal up to the driveside crank, place your
8mm hex key through the driveside crank and into the
back of the pedal axle. Start to turn the hex key in a
clockwise direction (as you look at the crank towards the
handlebars). There should be no resistance as you turn
the hex key, if there is resistance STOP immediately and
check you are fitting the correct pedal and the threads
are correctly aligned between the axle and crank. Do not
force the pedal into the crank.
4. Take your LEFT pedal and grease the axle.
5. Line the pedal up to the non-driveside crank, place your
8mm hex key through the non-driveside crank and into
the back of the pedal axle. Start to turn the hex key in a
anticlockwise direction (as you look at the crank towards
the handlebars). There should be no resistance as you
turn the hex key, if there is resistance STOP immediately
and check you are fitting the correct pedal and the
threads are correctly aligned between the axle and crank.
Do not force the pedal into the crank.
6. With both pedals now on the crank arms, tighten to
30Nm with a torque wrench.
Your pedals are now fitted and safe to ride.
