en-938821/2 5 - 67
CNC Operation
5
5.7.2 Creating Contours with the PROFIL Function
The PROFIL function allows you to create contours within a part programme using a sequence of geometric elements.
The contours created are stored at the end of the part programme and are executed by calls to subroutines.
The PROFIL function is accessed from the programme editor in background mode (See 5.9.1).
Options are available by softkeys F1 to F12, and the contour is displayed graphically while being drawn.
This section describes access to the PROFIL function. This function is described in detail in the PROFIL function
operator manual.
Requirements
Part programme displayed by the programme editor in background mode (See 5.9.1).
Actions
Call the PROFIL function. ☞
P

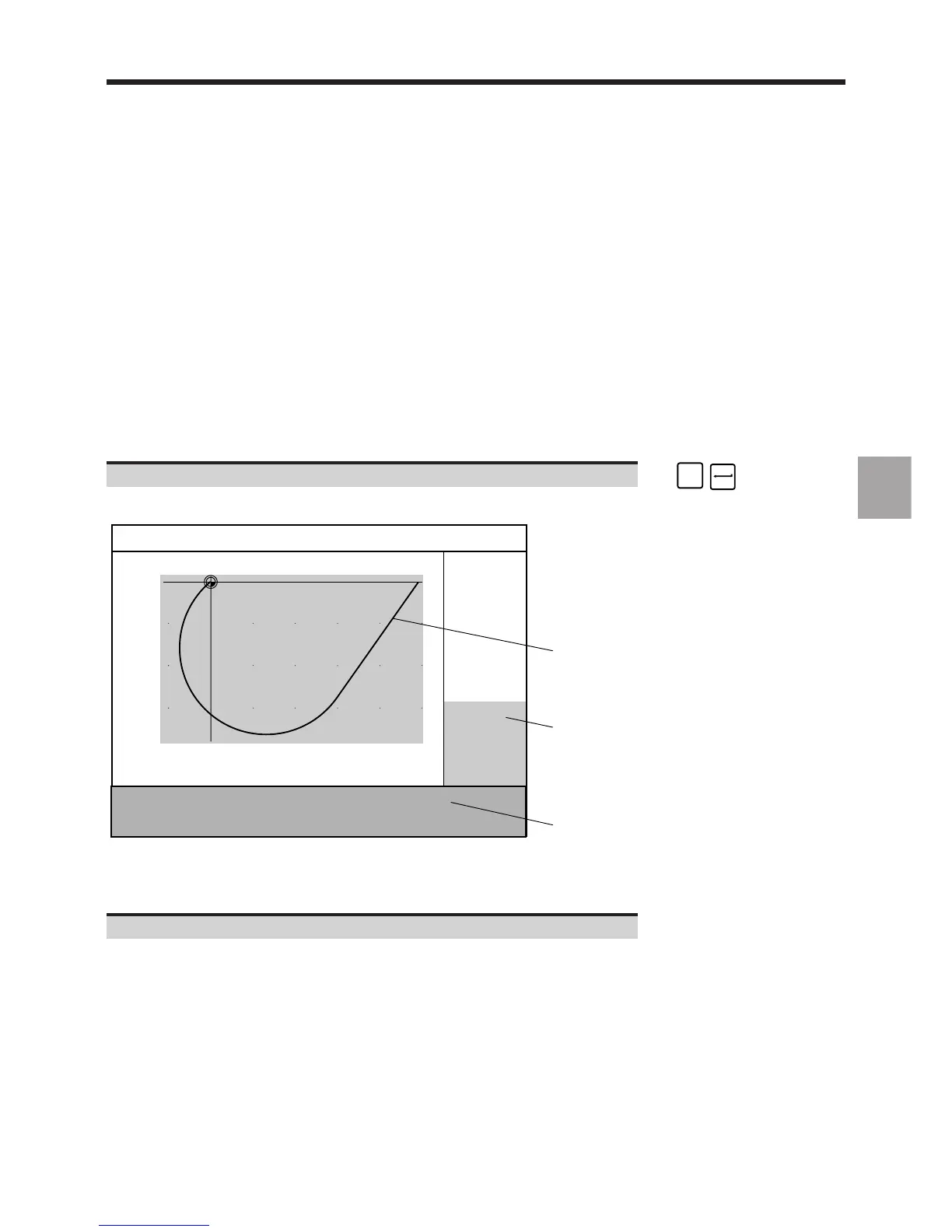

The PROFIL start page is displayed, for instance:
Y
X
1
2
3
VERSION 0.90
0 03.12.93
-20
-40
Plane X-Y
Contour No. 1
Last point
-76
-22 0 20 40 60 80 100 X 0.000 Y 0.000
- Profile -
F1 Creation F5 Deletion
F1 Modification F9 Information
F4 Geometric Transformations <-> Contour choice
F10 Save F12 Exit
1 - Contours already defined in the programme
2 - Data on the contour selected (red)
3 - Operations accessed by keys F1 to F12
Refer to the PROFIL operator manual.
