6.5 No Block Sequencing

6.5.1 No Block Sequencing, "INCYC" Indicator Displayed

Failure symptoms

Automatic or dry run mode selected.

The movements stop at the end of the block.

The "INCYC" indicator is displayed in the status window.

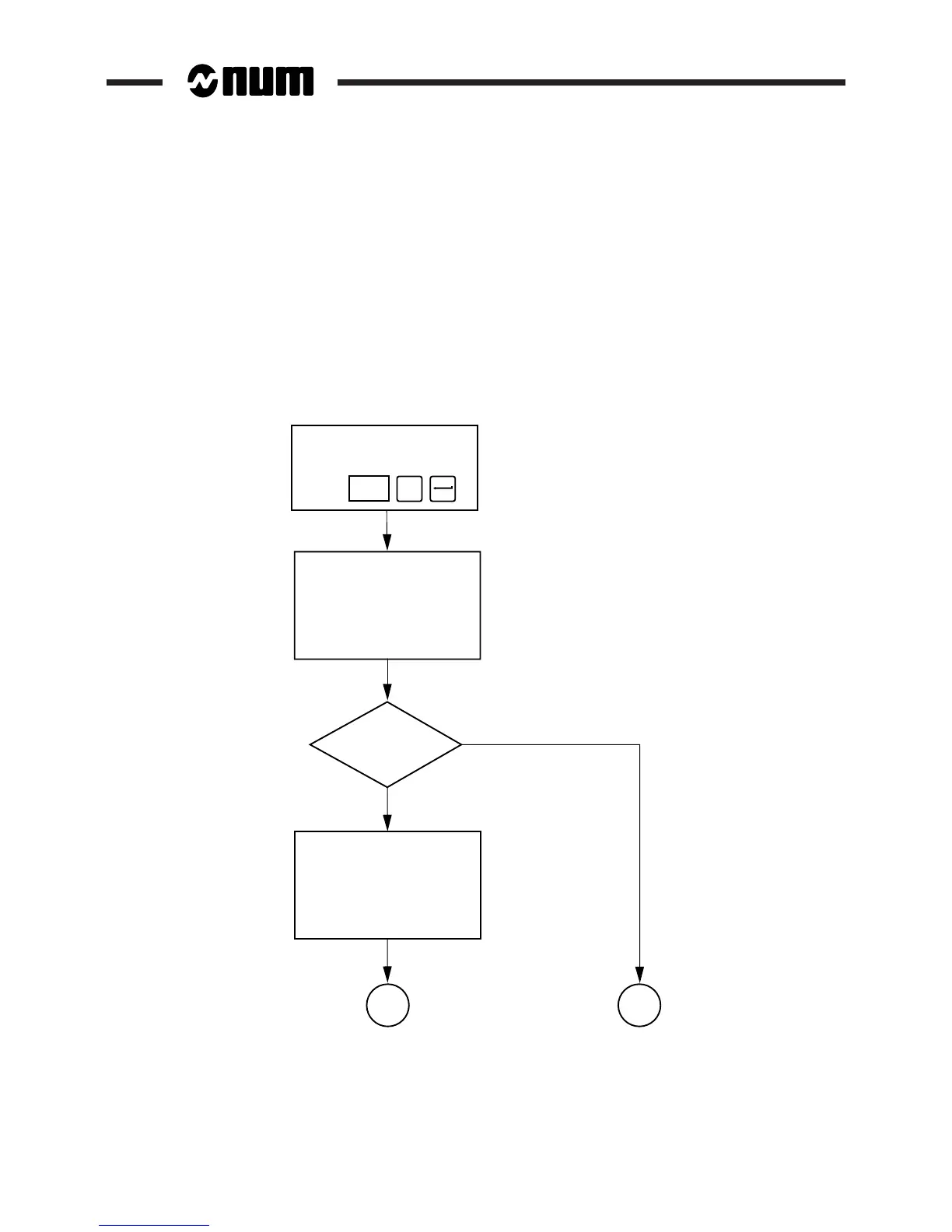

Trouble-shooting

Display

"PLC MEMORY" page

Display the

M function

reports: CRMg

(g = axis group

number: 1 to 8)

CRM(g) = 0

Yes

Display the end of external

movement condition

for each axis group:

C_EXTENDg (g = axis group

number: 1 to 8)

☞

PLC

I/O
