Changing the Floor Tool Blades
Lower the oor tool then unscrew the retaining knobs and slide it o the holding bracket.
Rinse the oor tool assembly with clean water and ret.
Periodically the oor tool blades should be examined and checked for wear and damage.
Replacement is a reversal of the removal process.

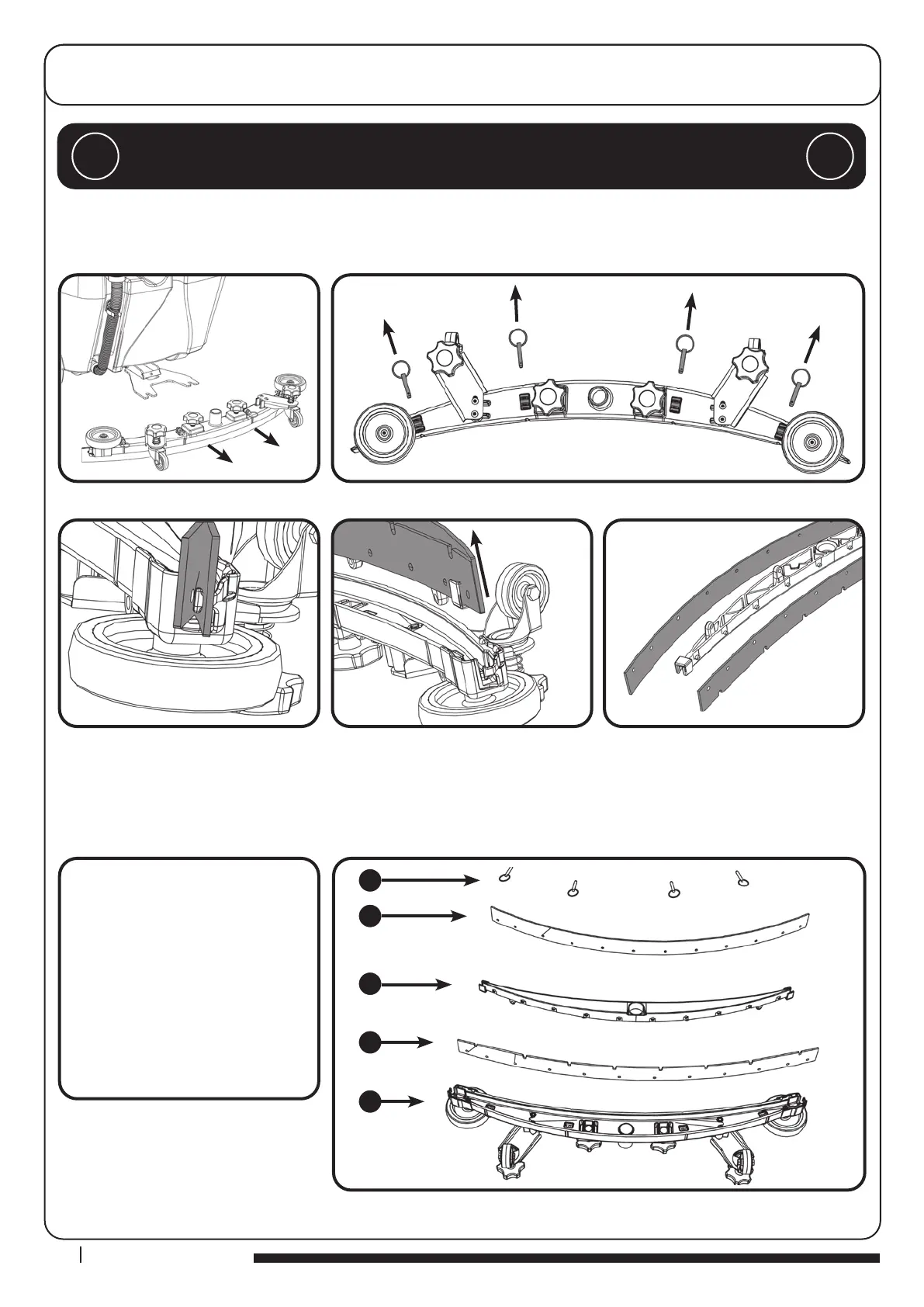

Floor Tool Overview
1. Retaining pins x 4
2. Rear blade
3. Blade carrier
4. Front blade (slotted)
5. Floor tool main body
Always ensure that the machine is switched o prior to any maintenance.
!!
Note: The blades are designed to be
reversible, thus extending their useful
working life.
Remove oor tool. Remove four retaining pins.
Turn the oor tool over. Separate the blade from the carrier. Peel away blades.
