TTB 345 OPERATION - FITTING THE BRUSH / DRIVE BOARD

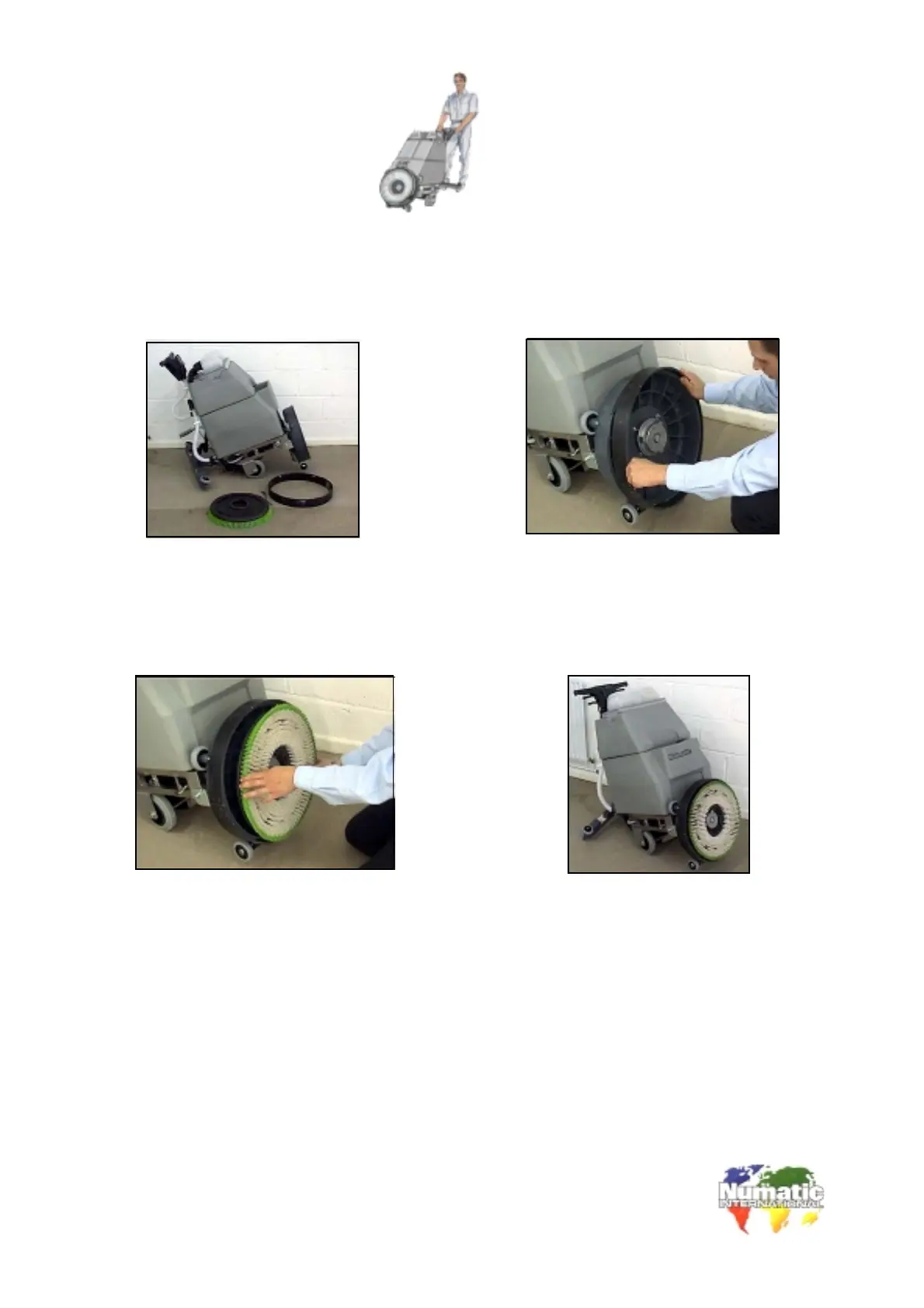

1. MACHINE SHOWN WITH
SCRUB RING AND BRUSH.
2. PLACE SCRUB RING OVER
RIM ON MACHINE DECK.
3. POSITION BRUSH ONTO
THE GEARBOX WITH THE 3
INDENTATIONS ALLIGNING
WITH THE 3 TABS. TURN
ANTI-CLOCKWISE TO LOCK
THE BRUSH IN PLACE.
4. THE BRUSH WILL NOW
BE LOCKED IN PLACE AND
READY FOR USE.
NOTE: WHEN USING A DRIVE BOARD FOLLOW THE SAME INSTRUCTIONS
TO FIT DRIVE BOARD AND THEN FIX PAD CENTRALLY ONTO BOARD.
