Numatic TTB-455 - Maintenance and Troubleshooting; Fitting the Brush and Drive Board

TWINTEC 455
TTB 455 OPERATION - FITTING THE BRUSH / DRIVE BOARD

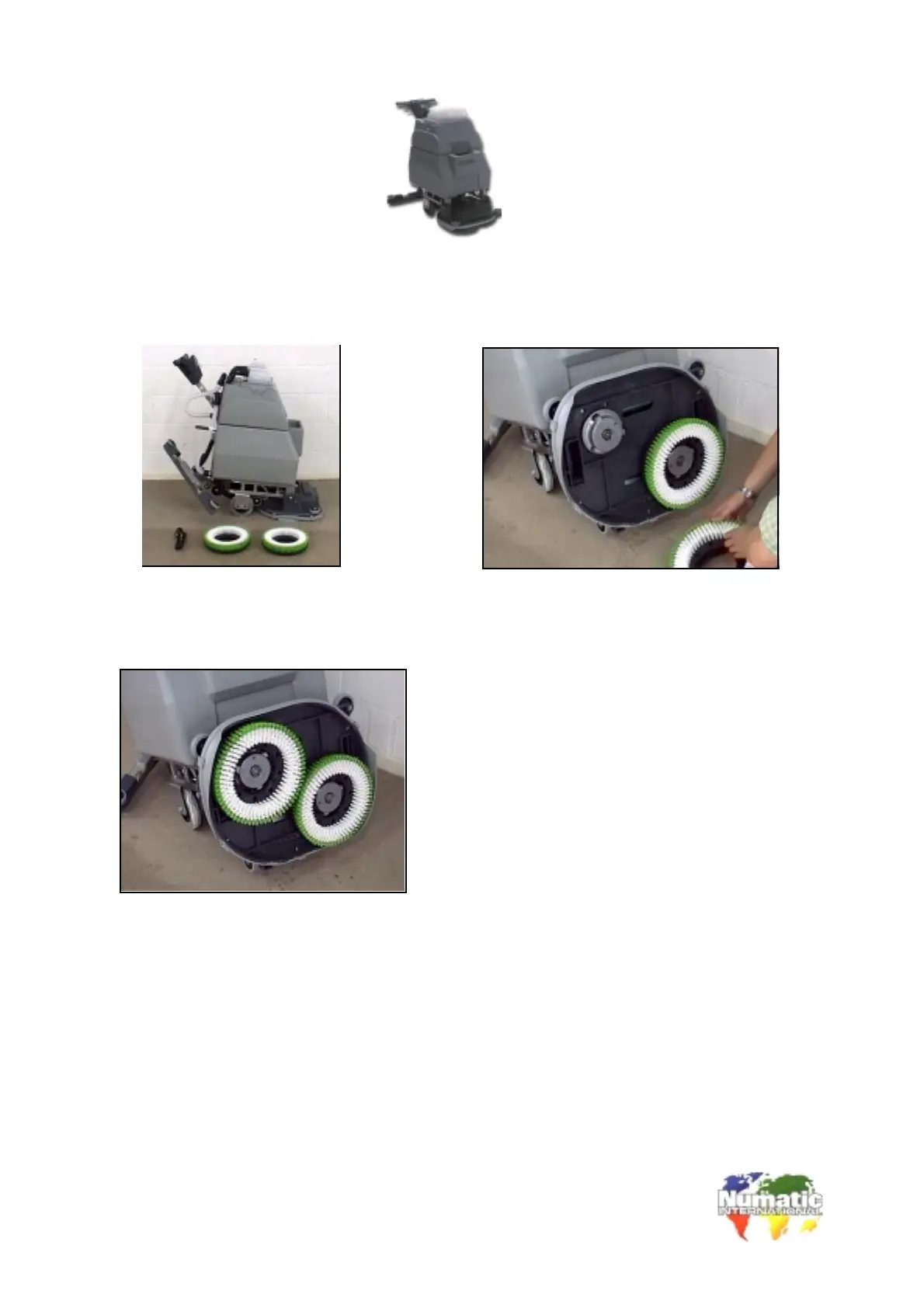

1. MACHINE SHOWN WITH
BRUSHES.
2. POSITION BRUSH ONTO
THE GEARBOX WITH THE 3
INDENTATIONS ALLIGNING
WITH THE 3 TABS. TURN
ANTI-CLOCKWISE TO LOCK
THE BRUSH IN PLACE.
3. THE BRUSHES WILL NOW
BE LOCKED IN PLACE AND
READY FOR USE.
NOTE: WHEN USING A DRIVE BOARD FOLLOW THE SAME INSTRUCTIONS
TO FIT DRIVE BOARD AND THEN FIX PAD CENTRALLY ONTO BOARD.
