Numatic TTB-455 - Changing the Squeegee Blades

TWINTEC 455

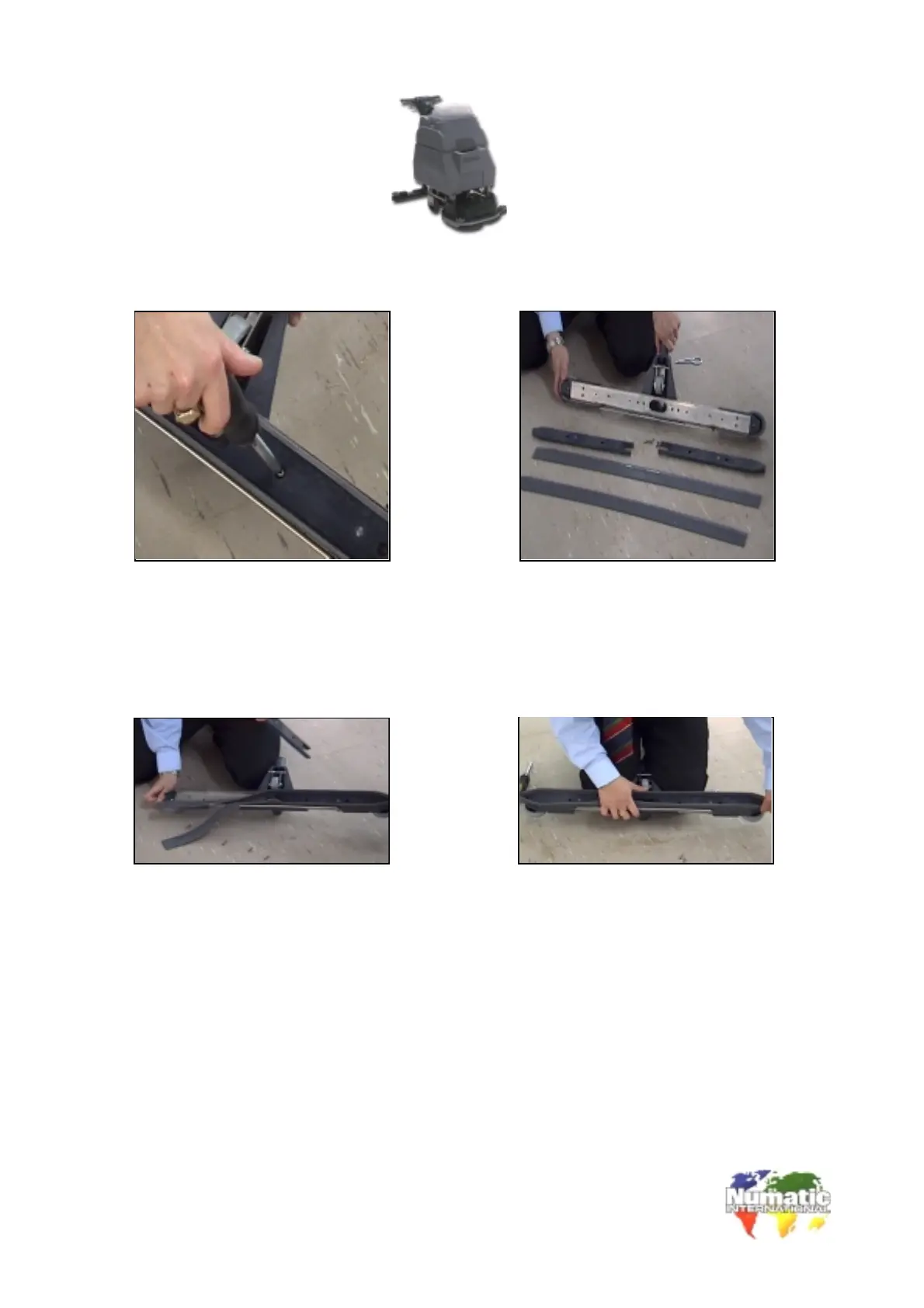

TTB 455 OPERATION - CHANGING THE SQUEEGEE BLADES
1. REMOVE THE SQUEEGEE
TURN UPSIDE DOWN, AND
REMOVE THE 4 SCREWS
ALONG THE CENTRE OF THE
TOOL.
2. LIFT AND REMOVE THE 2
PLASTIC INSERTS AND DIS-
CARD THE WORN BLADES.
3. PLACE THE NEW BLADES
INTO POSITION WITH THE
RIBBED SIDES FACING OUT-
WARD. ENSURE THAT THE
BLADES OVERHANG EQUALLY
AT EACH END.
4. ALLIGN PLASTIC INSERTS
AND APPLY PRESSURE UNTIL
YOU FEEL THE BLADE GRIP
INTO PLACE. REPLACE
SCREWS AND PUT SQUEEGEE
BACK ONTO MACHINE.
NOTE:
REPLACEMENT SQUEEGEE BLADE PART NUMBER: 217213
