Nuova Simonelli MicoBar - Keyboard Description

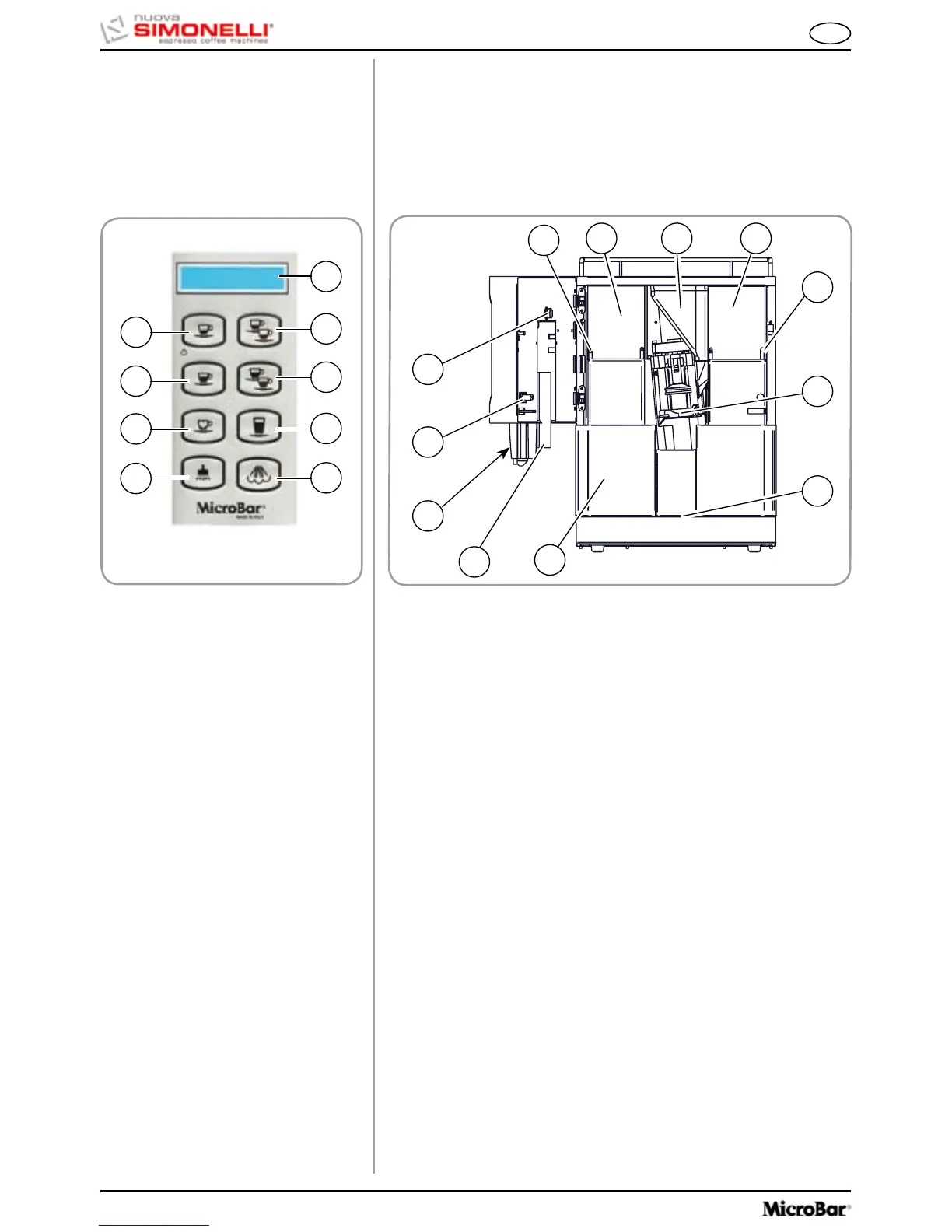

Fig. 3
Fig. 2
LEGENDA
1
1 Espresso key
2 2 Espressos key
3 1 Coffee key
4 2 Coffees key
5 Second Grinder,
Decaffeinated, Clean cycle
key
6 Caffelatte key
7 Hot water key
8 Steam key
9 LCD display
LEGENDA
1 Door Key
2 Door microswitch
3 Milk Foamer air regulator
4 Coffe grinder adjusting screw left-hand grinder
5 Coffe bean holder left-hand grinder
6 Ground coffee conveyor
7 Coffe bean holder right-hand grinder
8 Coffe grinder adjusting screw right-hand grinder
9 Delivery unit
10 Water collecting dray
11 Coffe grounds drawer
12 Milk Foamer
1.1 KEYBOARD
DESCRIPTION
(Standard configuration)
1.2 MICROBAR INTERNAL
DESCRIPTION
40
EN
1
3
5
7
9
2
4
6
8
1
2
3
4
5 6 7
8
9
10
11
12
