MODELS CFS52BS • CFS52PB • CFS52RB • CFS52WH
Page 2

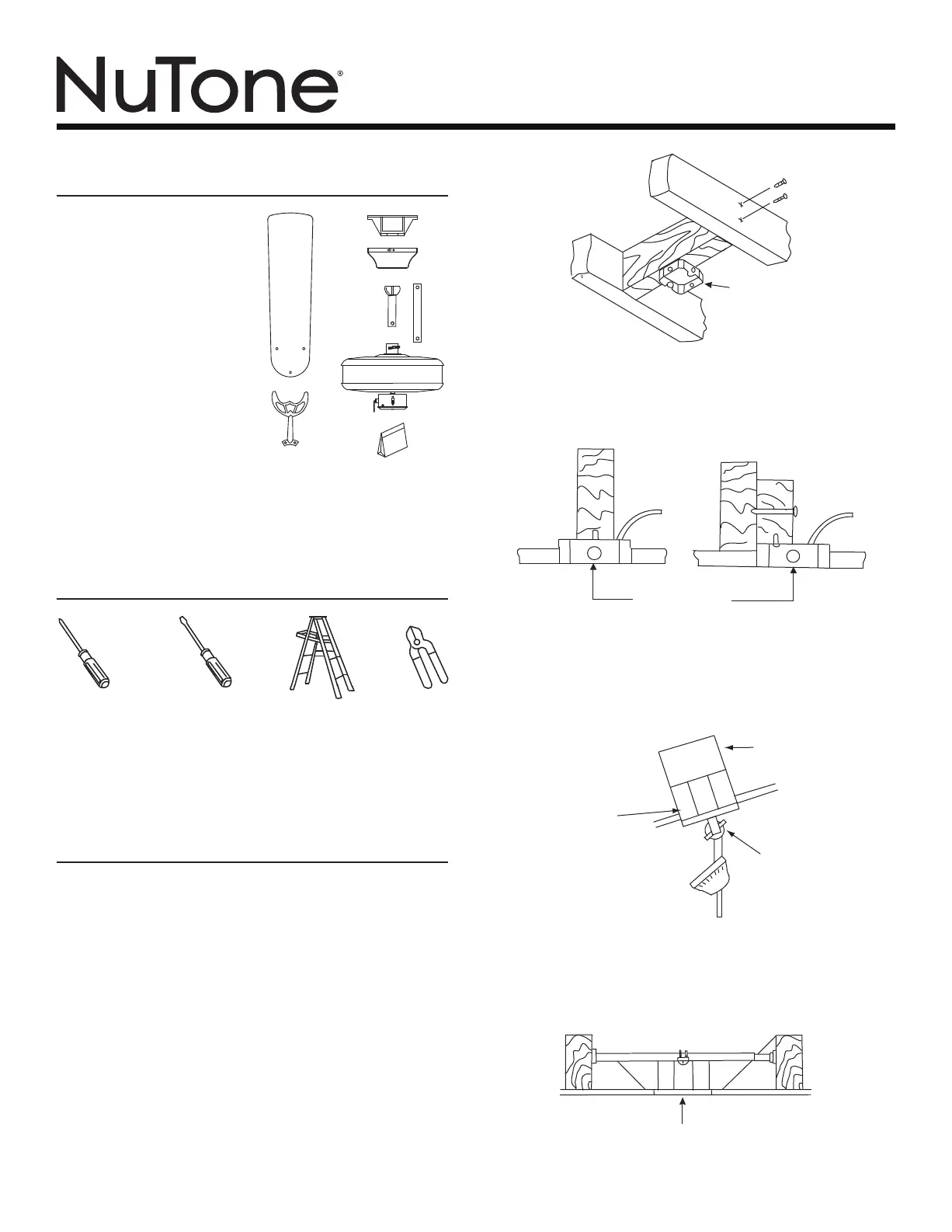

CONTENTS
Unpack your fan and check
the contents. You should
have the following items:
A - 2-Sided Blade Set (5)
B - Hanger Bracket
C - Canopy
D - Downrods (2 - short & long)
E - Fan Motor Assembly
F - Blade Bracket Set (5)
G - Hardware Package
(Note: Package may contain
extra hardware.)
Pull Chain and Fob
TOOLS & MATERIALS
REQUIRED
MOUNTING OPTIONS
If there isn’t an existing UL listed mounting box, then read the following
instructions. Disconnect the power by removing fuses or turning off
circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate
fasteners and building materials. The outlet box and its support must
be able to fully support the moving weight of the fan (at least 50 lbs).
Do not use plastic outlet boxes.
Figures 1,2 and 3 are examples of different ways to mount the outlet box.
Note: You may need a longer downrod to maintain proper blade
clearance when installing on a steep, sloped ceiling. (Fig. 3)
To hang your fan where there is an existing fixture but no ceiling joist,
you may need an installation hanger bar as shown in Figure 4.
PHILLIPS
SCREW
DRIVER
FLAT
BLADE
SCREW
DRIVER
STEP
LADDER
WIRE
CUTTER
FIGURE 1
OUTLET BOX
FIGURE 3
ANGLED CEILING
MAXIMUM 25°
PROVIDE STRONG
SUPPORT
RECESSED
OUTLET BOX
CEILING
MOUNTING
BRACKET
FIGURE 2
OUTLET BOX
FIGURE 4
OUTLET BOX
A
B
C
D
E
F
G
