MODELS CFS52BS • CFS52PB • CFS52RB • CFS52WH
Page 6

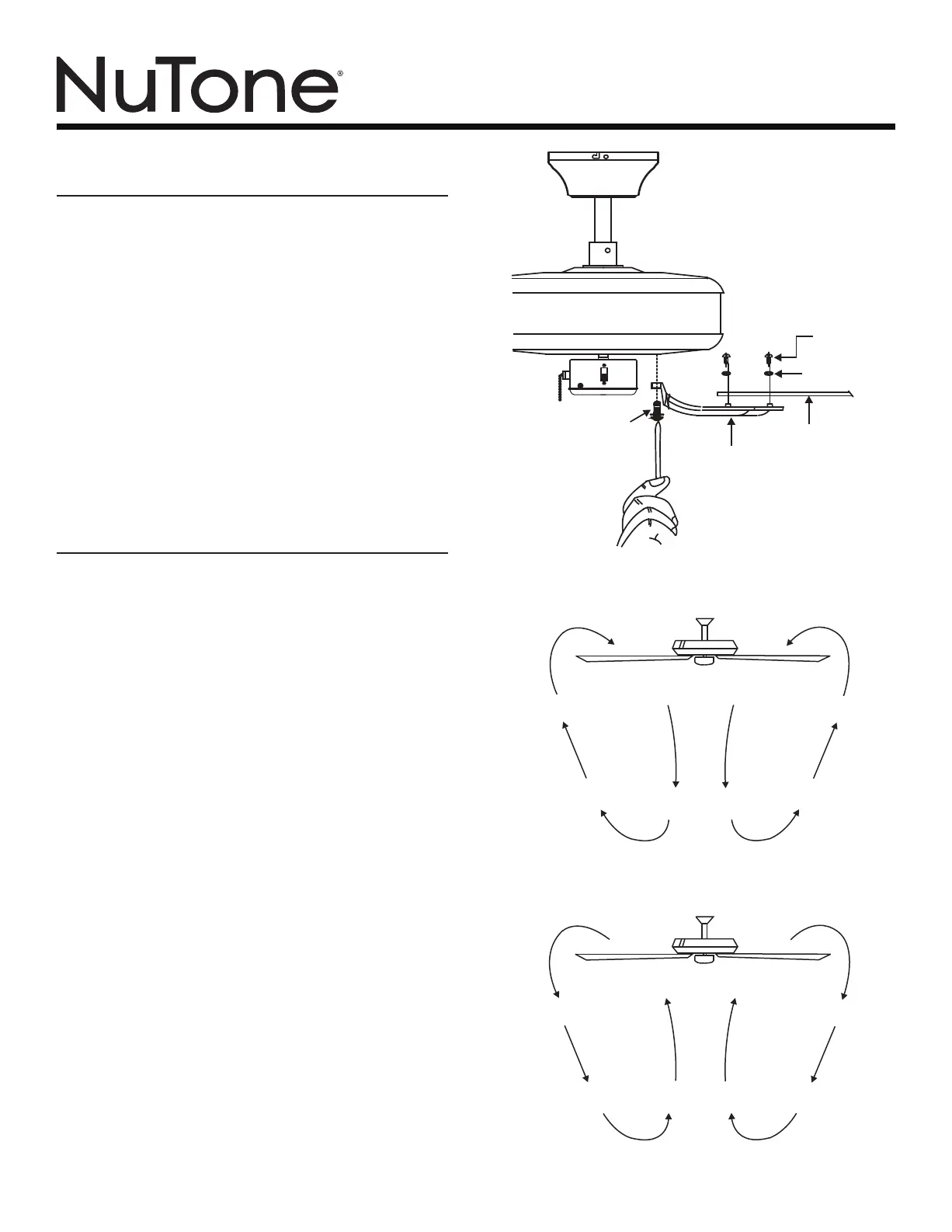

ATTACH FAN BLADES
Caution: Remove 5 rubber packing mounts and discard before
installation.
Your fan is equipped with 2-sided reversible blades. Select the finish and
install the blade brackets over the side of the blades that will be visible.
1. Attach the blade to the blade bracket using the screws and fiber
washers as shown in Figure 12. Start screw into bracket. Repeat
for the two remaining screws.
2. Tighten each screw. Make sure the blade is straight.
3. Fasten blade assembly to motor using the screws supplied. (Fig.
12)
4. Attach decorative fob to pull chain.
OPERATION
Turn on the power and check the operation of your fan.
3-SPEED PULL CHAIN
Controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3
pulls - Low, and 4 pulls - Off.
Speed settings for warm or cool weather depend on factors such as the
room size, ceiling height, and number of fans.
SLIDE SWITCH
Controls directions: forward (switch down) or reverse (switch up).
NOTE: Wait for fan to stop before changing the setting of the
slide switch.
Warm weather - (Forward) A downward airflow creates a cooling effect
as shown in Fig. 13. This allows you to set your air conditioner on a
warmer setting without affecting your comfort.
Cool weather - (Reverse) An upward airflow moves warm air off the
ceiling area as shown in Fig. 14. This allows you to set your
heating
unit on a cooler setting without affecting your comfort.
WALL SWITCH (OPTIONAL)
Your fan is also designed to operate with a wall switch (sold separately).
Refer to wall switch instructions for installation and wiring information.
SCREWS
FIBER
WASHERS
BLADE
BLADE BRACKET
SCREWS
FIGURE 12
FIGURE 13
FIGURE 14
