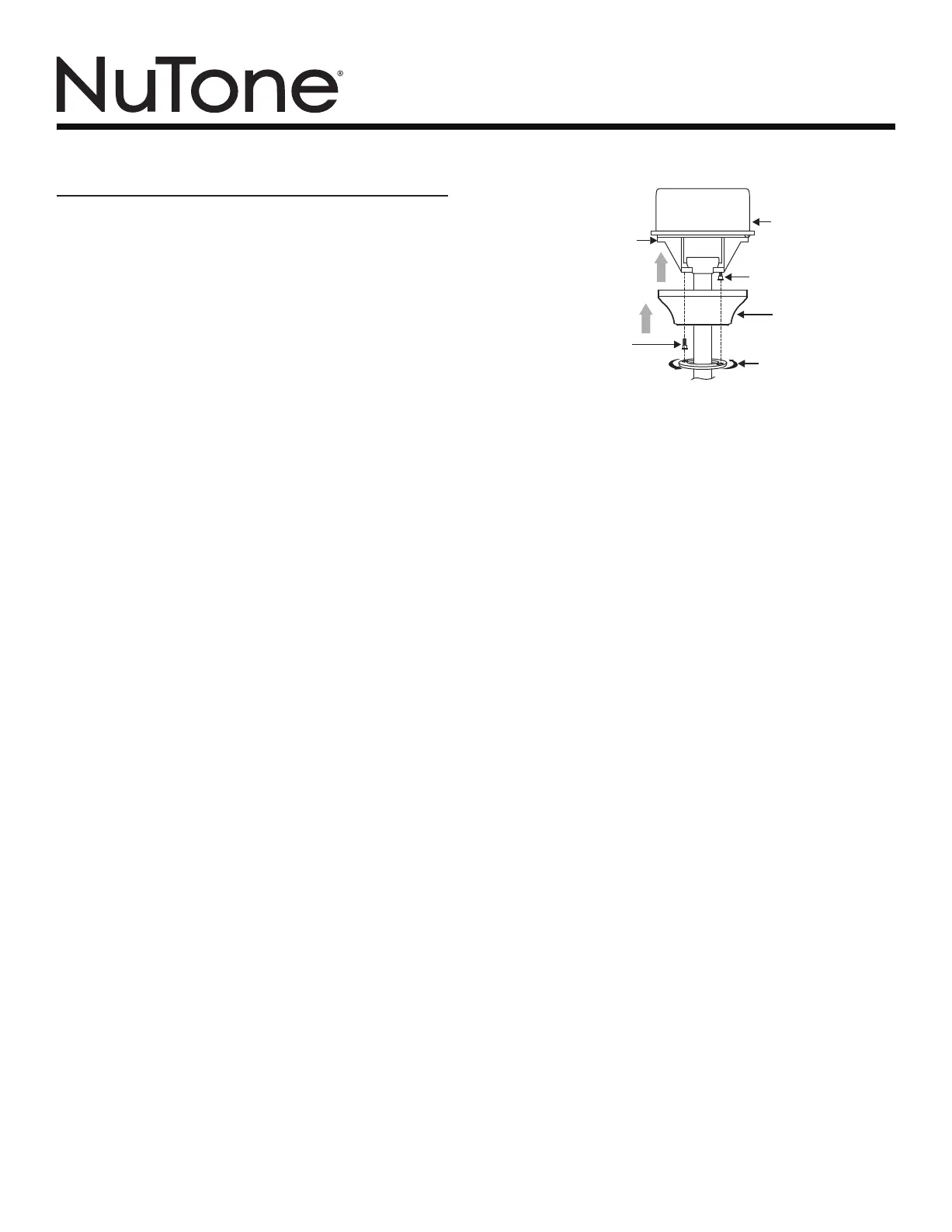

FINISH INSTALLATION
FIGURE 11
Outlet Box
Ceiling
Mounting
Bracket
Screw
Screw
Canopy
Canopy
Bottom Cover
1. Tuck connections neatly into ceiling outlet box.
2. Slide the canopy up to mounting bracket and place the key hole on
the canopy over the screw on the mounting bracket, turn canopy until it
locks in place at the narrow section of the key holes. (Fig. 11)
3. Align the circular hole on canopy with the remaining hole on the
mounting bracket, secure by tightening the two set screws. Note: Adjust
the canopy screws as necessary until the canopy and canopy cover are
snug.
To Next Page
