Kit Part
Number
Kit
Legacy
Part
Numbe
r
Rack Size and Rack Depth Range
930-9NRKT-00
JG-000
MTEF-
KIT-D
Rack installation kit for SN2100/SN2010 series short depth 1U switches, allows
installation of one or two switches side-by-side into standard depth racks.

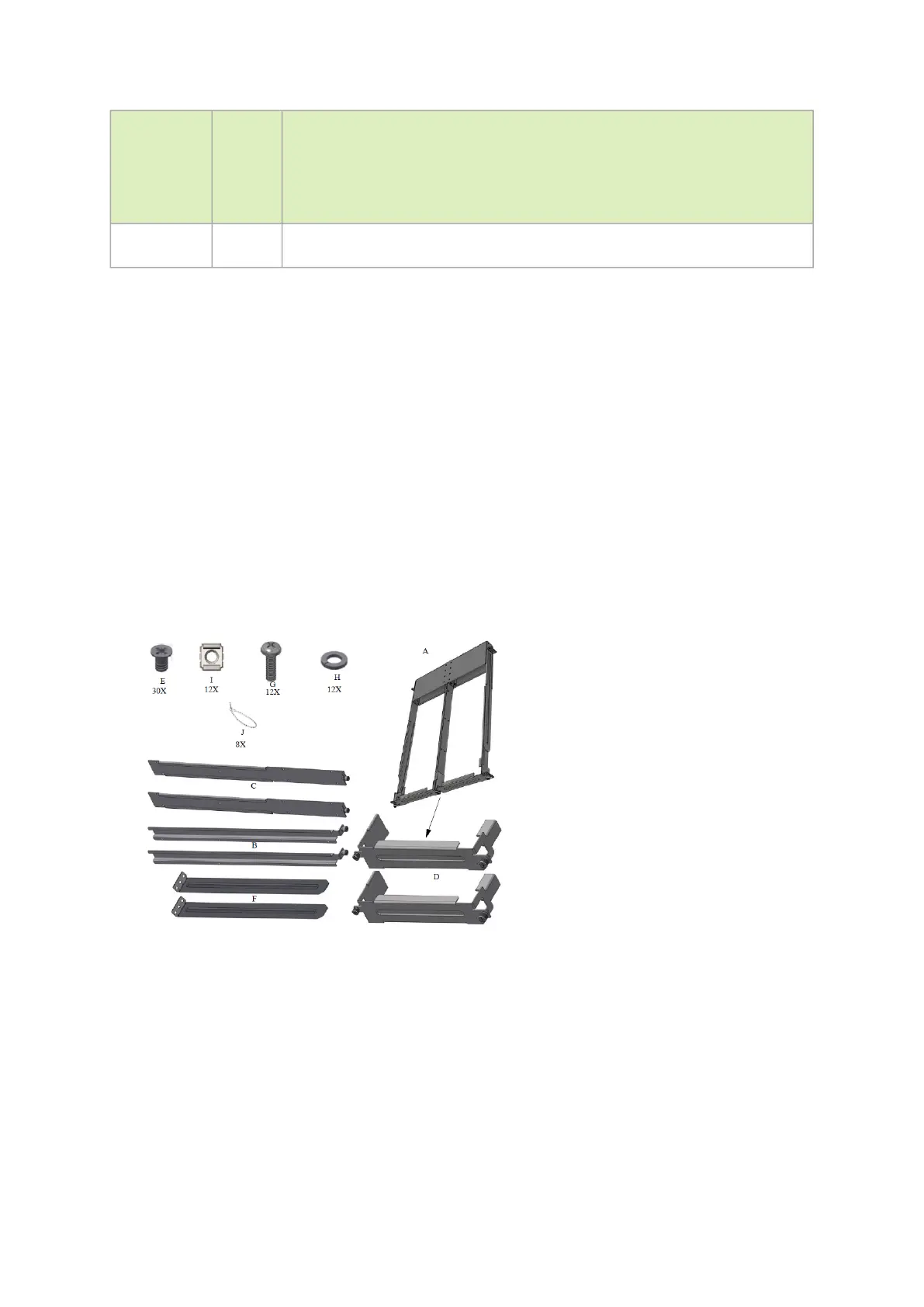

The following parts are included in the rail kit (see figure below):
1 metal frame for two systems (A)
2 system mounting blades with 8 screw holes - the kit contains enough rails to install 2
systems (B)
2 system mounting blades with 7 screw holes - the kit contains enough rails to install 2
systems (C)
2 blank (installed) covers (D)
30 flat head 4-40 screws - the kit contains enough screws to install 2 systems (E)
2 frame rail slides (F)
10 (+2 spare units) M6 pan head screws (G)
10 (+2 spare units) M6 spring washers (H)
10 (+2 spare units) M6 spring steel cage nuts (I)
6 (+2 spare units) cable-ties (J)
Rack Rail Kit Parts
Prerequisites
Before mounting the system to the rack, select the way you wish to place the system. Pay attention
to the airflow within the rack cooling, connector and cabling options.
The installation kits come with enough system mounted rails and flat head screws to install
two systems.
The 2 system metal frame will fit into racks with from 23.6” (600mm) to 31.5” (800mm)
space between the vertical supports.
