33
1.
2.
3.
You may choose to install your system in the right or in the left part of the metal frame. The
following instructions apply to installation in the right part. For installation in the frame’s
left part, follow the same instructions, while replacing “right” with “left”, and vice versa.
To mount the system into the rack:
Insert the SE (single ended) plugs to the dedicated inlets in the system’s rear panel.
Carefully position the SE (single ended) cables one on top of the other, and use three cable
ties to pair them together (shown in figure).

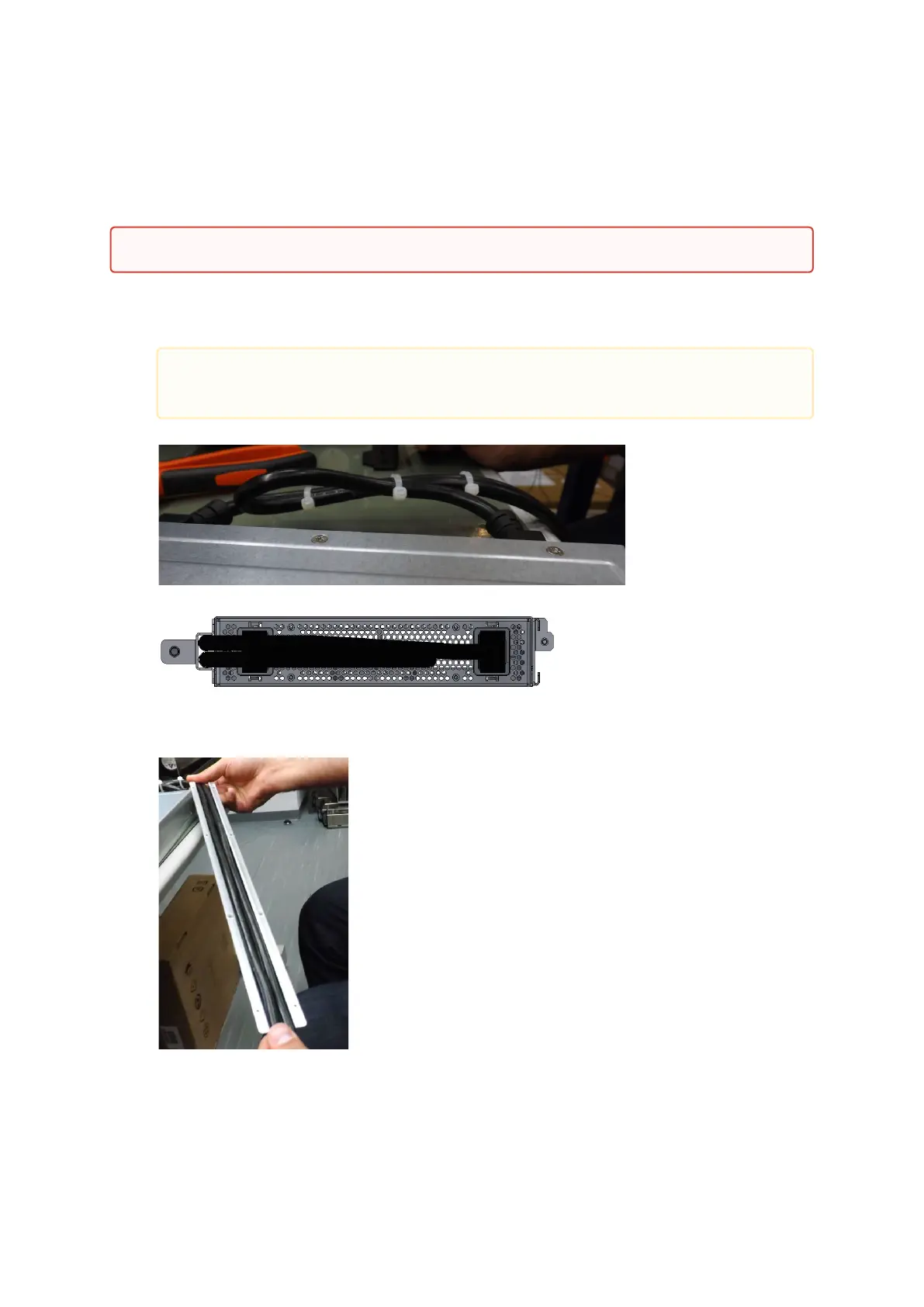

Coupling the Cables with Cable-ties
Coupled Cables - Rear View
Place the coupled cables in the designated area within the right flat blade (the blade with 7
screw holes).
Cables within the Rail
At least two people are required to safely mount the system in the rack.
While pairing the cables, make sure the cables are paired in symmetry to the switch,
in order to avoid damaging the cables.
