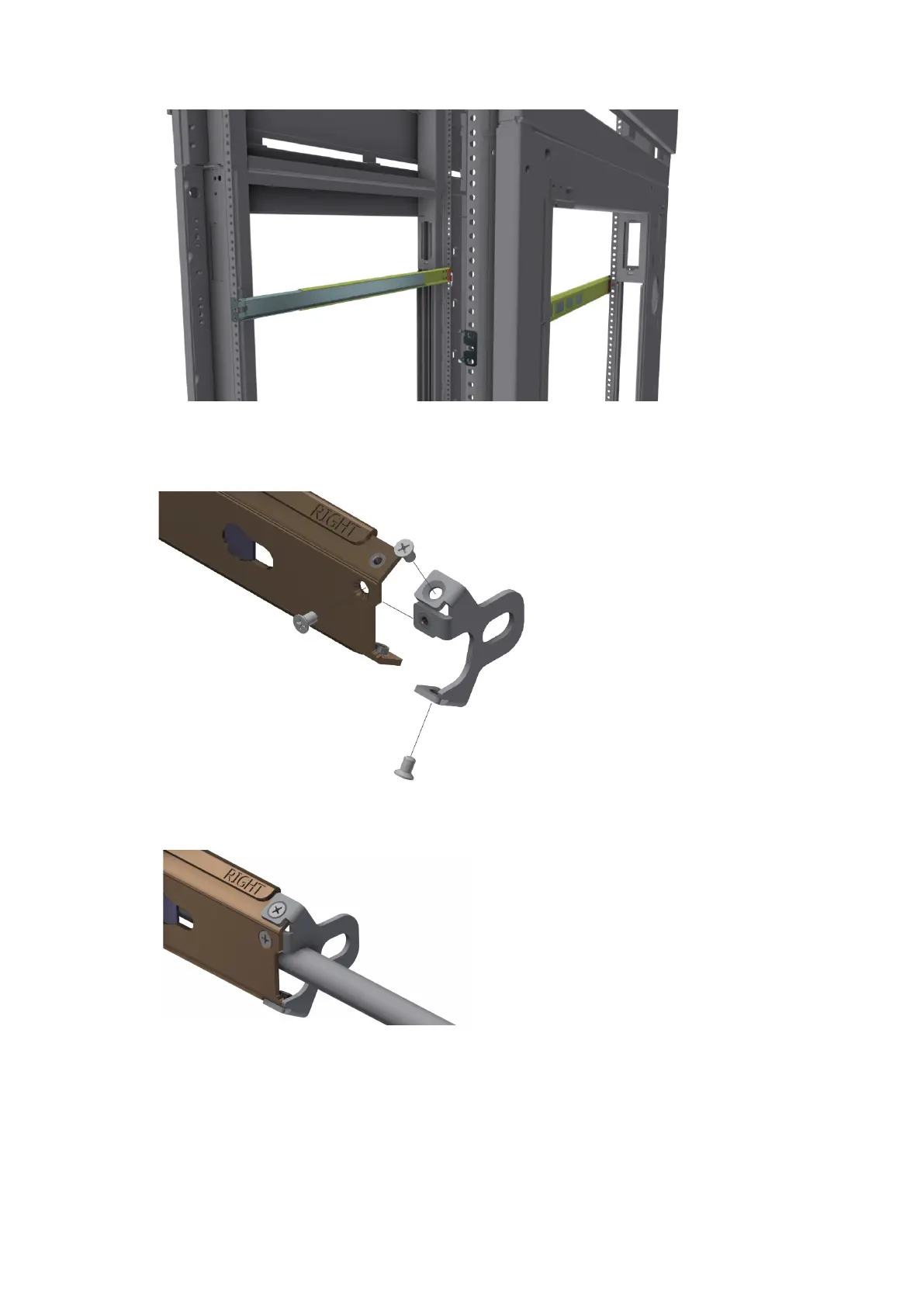

If cable accommodation is required, disassemble any of the inner rails from the brackets
attached to them, by removing and scraping the connecting screws.
Disassembling the Inner Rails for Cable Accommodation
Route the power cable through either of the inner rails, and reassemble the brackets by
screwing the 3 screws (per rail) provided with the rail-kit (H) with a torque of 0.7±0.05Nm.
Cable Accommodation
Secure the chassis in the inner rails screwing the 2 flat head Phillips screws (G) in the
designated points with a torque of 1.5±0.2 Nm.
