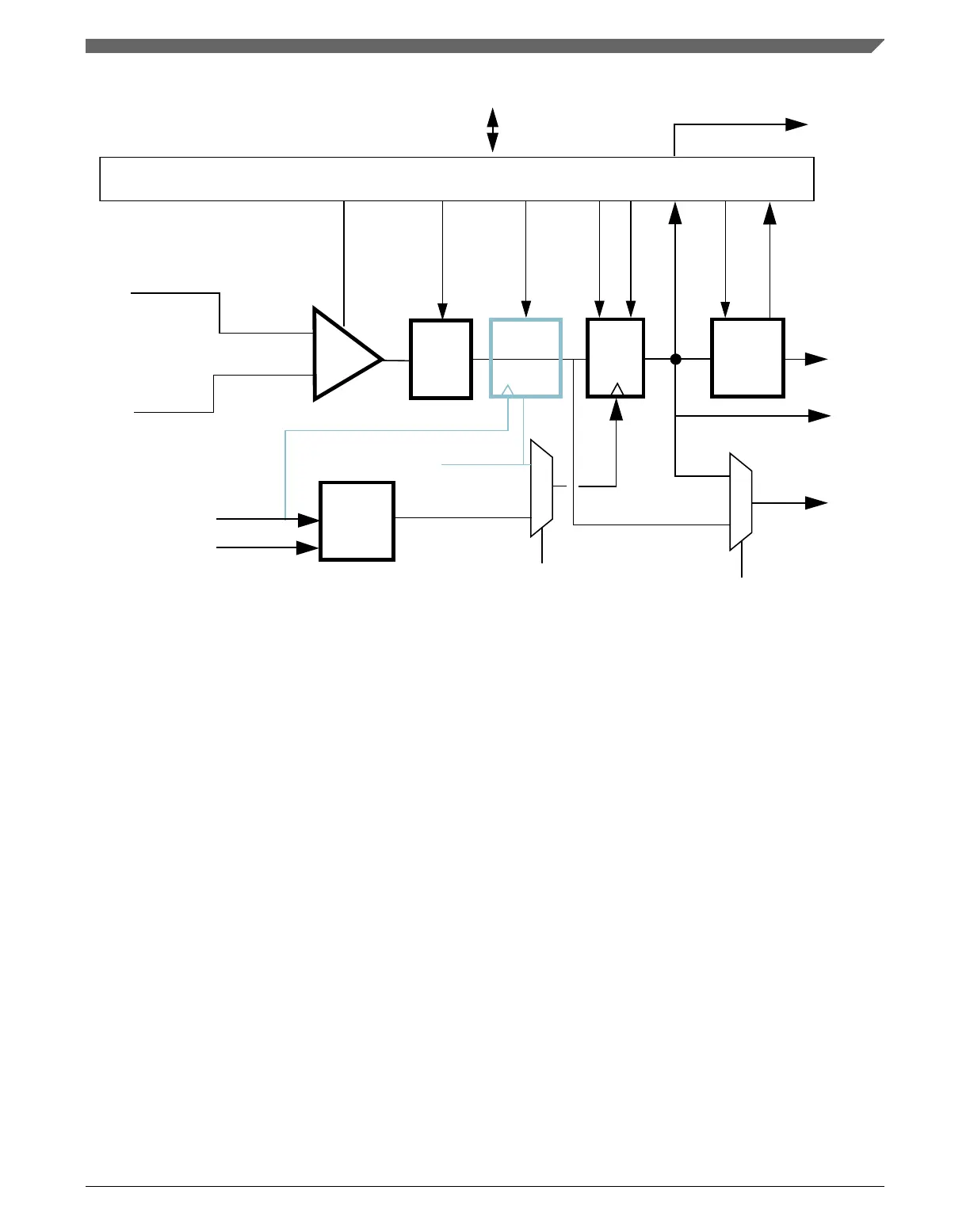

Figure 40-6. Sampled, Non-Filtered (# 3B): sampling interval internally derived
40.7.4
Sampled, Filtered mode (#s 4A & 4B)
In Sampled, Filtered mode, the analog comparator block is powered and active. The path
from analog inputs to COUTA is combinational unclocked. Windowing control is
completely bypassed. COUTA is sampled whenever a rising edge is detected on the filter
block clock input.
The only difference in operation between Sampled, Non-Filtered (# 3A) and Sampled,
Filtered (# 4A) is that, now, C0[FILTER_CNT]>1, which activates filter operation.
