-18-
Setting
Call Tune
General
Installer
Wireless
About

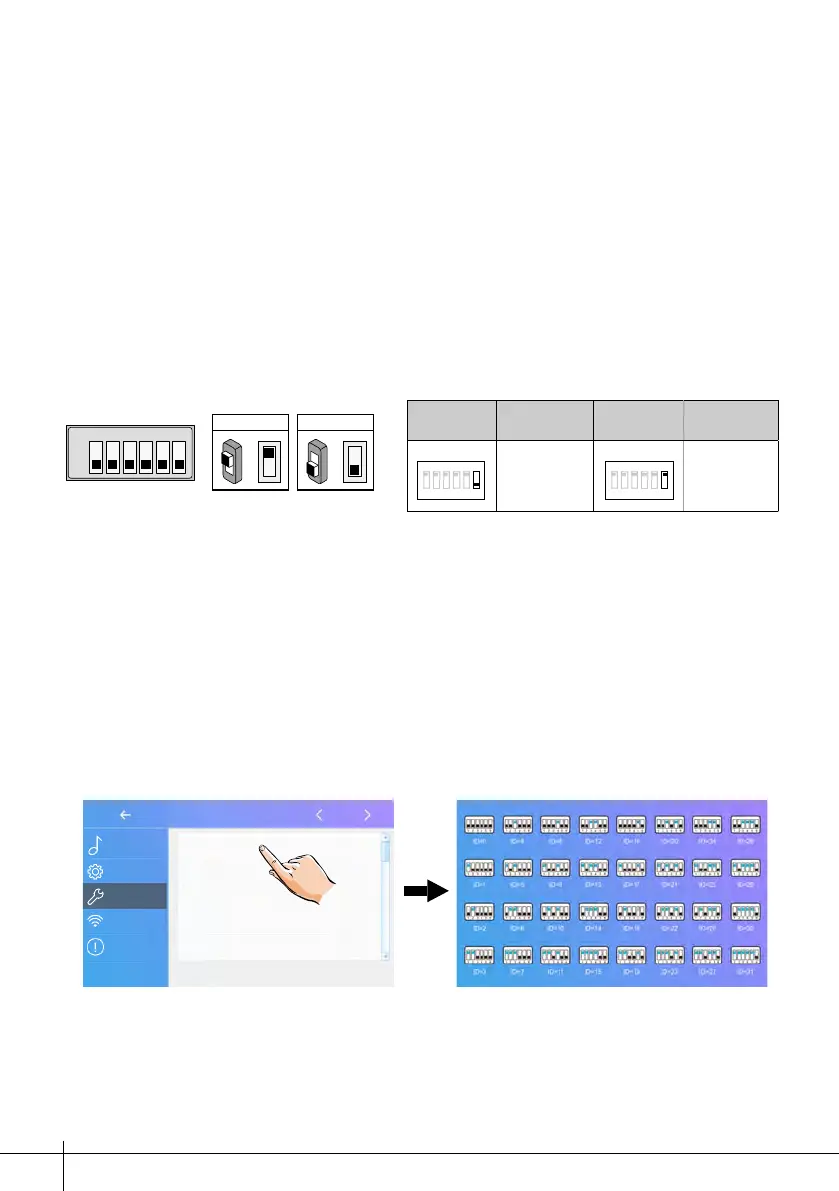

DIP Switcher Set Address
The DIP switches are used to set the user code for each monitor.Total 6 bits can
becongured.
• Bit-1 to Bit-5 are used for user code setting. The value range is from 0 to 31,
whichhave32dierentcodesfor32apartments.
• Bit-6 is bus line terminal switch, which should be set to “ON” if the monitor is at
the end of bus line, otherwise be set to “OFF”.
Bit-6 switch setting
ON(1)
=
OFF(0)
=
ON
ON
ON
1 2 3 4 5 6
Bit state Setting Bit state Setting
1 2 3 4 5 6
ON
When monitor
is not at the
end of bus line.
When monitor
is at the end of
bus line.
1 2 3 4 5 6
ON
This monitor is assigned with DIP setting instructions.Total 32 DIP codes.
Current addtess [01]
Intercom enable Enable
IPC Setting
Monitor list manage
System settings
To Next Page
