e700 User Manual

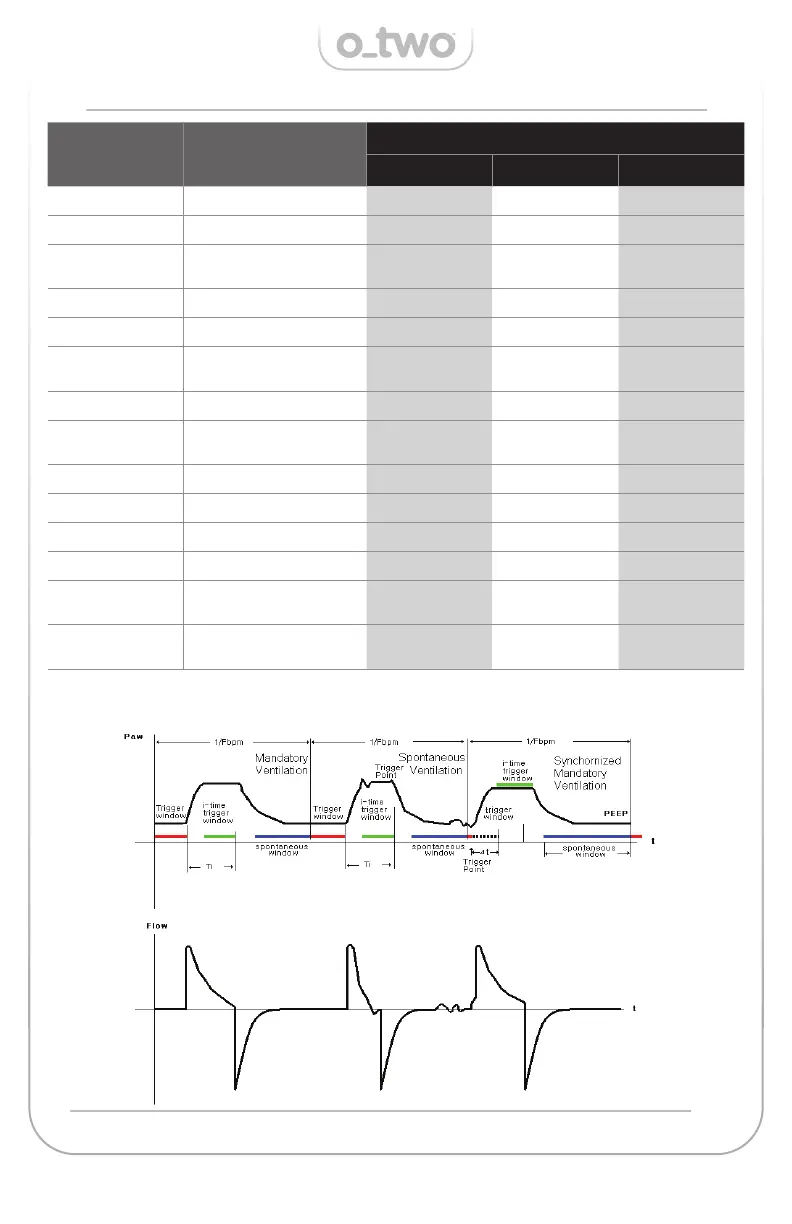

Figure 12.a - BiLVL waveform w/o pressure support
TABLE 4 - Default Ventilation Setting- BiLVL
PARAMETER RANGE
DEFAULT
INFANT CHILD ADULT
Pi (OFF, 4-50 cm H
2
O) 15 15 15
Rate (5 - 60 BPM) 30 15 10
PEEP (OFF, 4-20 cm H
2
O) 5 5 5
I:E ratio (1:4 – 3:1) 1:2 1:2 1:2
Ti* (0.2 - 9 sec) 0.66 1.33 2.0
PSV (OFF, 4-35 cm H
2
O)
O , unless
selected
O , unless
selected
O , unless
selected
Trig. (1 -15 L/min) 3 3 3
Termination
20-80% of maximum
set fl ow
50% 50% 50%
O
2
% (100% or 60% O
2
) 100 100 100
Mv max (2 -40 L) 30 30 30
Mv min (0.5 – 35 L) 0.5 0.5 0.5
P max. 10 -80 cm H
2
O 25 25 30
P min.
0-20 cm H
2
O
(during I time only)
3 3 3
Manual
Refer to Manual and
I-Hold section
ready ready ready
* Ti may be limited below its range depending on set I:E ratio and rate.
