e700 User Manual
3. Overview
3.1. Control and Display Layout
A
B
C
D
E
F G H I J
K
L
M
N

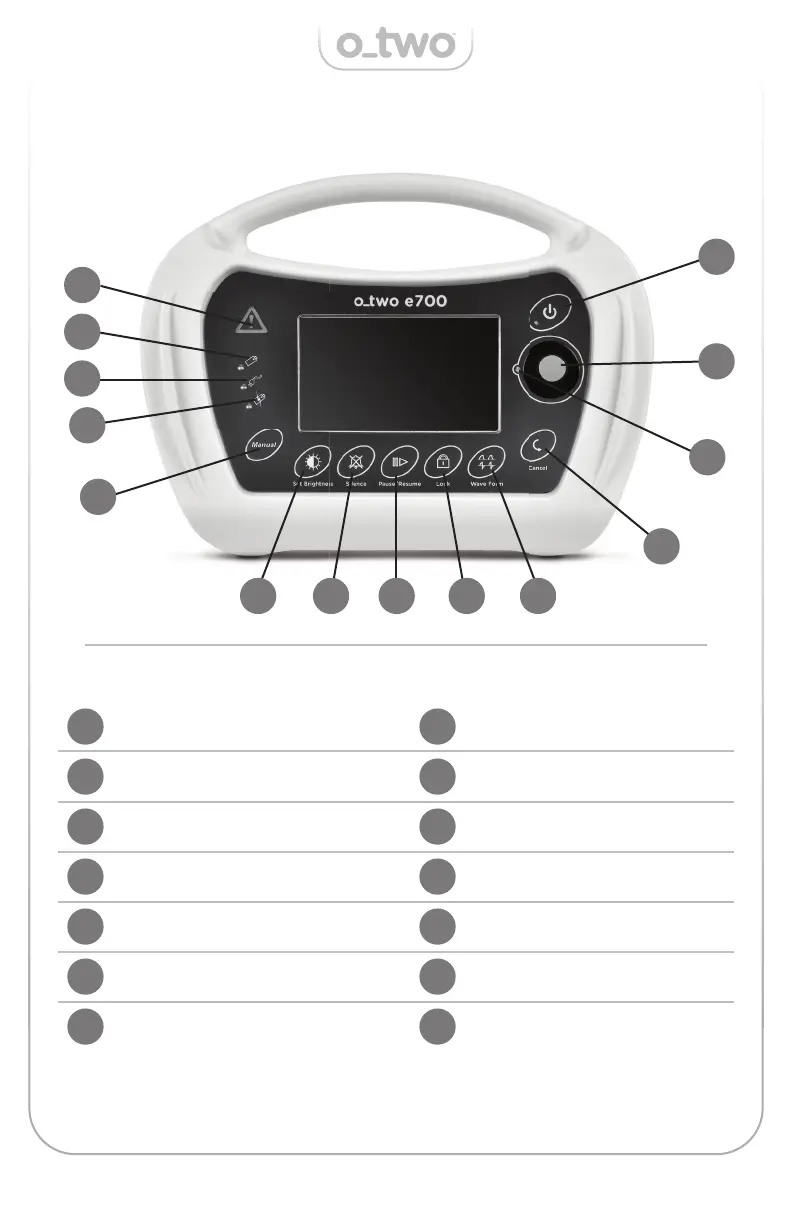

Figure 01
A H
D K
B I
E L
C J
F M
G N
Warning indicator
Battery operation indicator
External power indicator
Battery charging indicator
Manual/Inspiratory Hold key
Screen brightness key
Alarm Silence key
Pause/Resume key
Lock key
Waveform selection key
Cancel key
Confi rmation indicator light
Control Selection Knob
ON/OFF key
