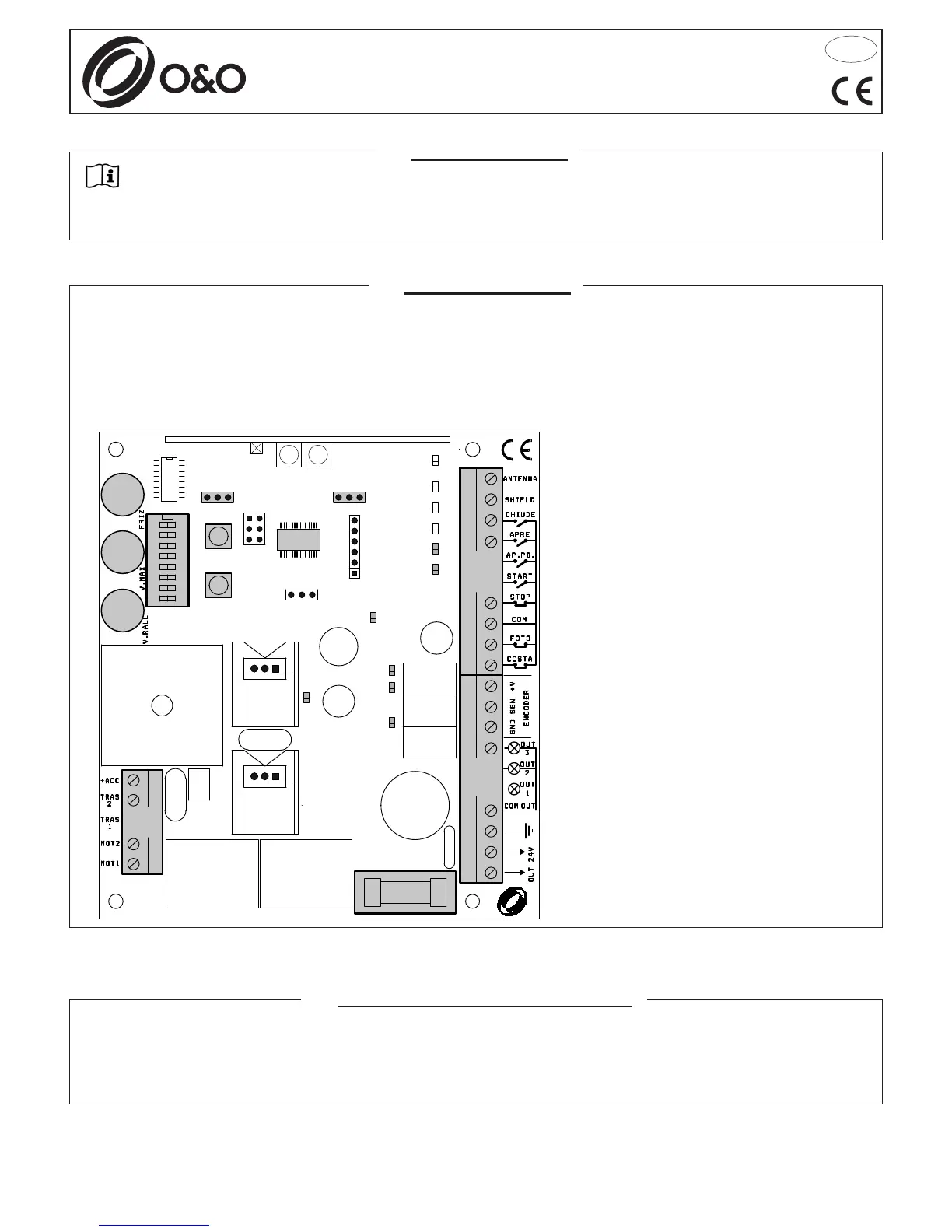

O&O LOG-BC User Manual

- 11 -
LOG-BC
Installation and operation manual
EN
3. TECHNICAL SPECIFICATIONS
2. MAIN FEATURES
- Microprocessor logic
- Green LEDS displaying the status of the NO control inputs and red LEDS for the status of the NC safety ones
- Pull out terminal blocks
- Output for a ashing light and gate open indicator or for a red and green trafc light
- Integrated radio receiver 433Mhz; 2048 codes
The control unit denominated LOG-BC is designed to manage the PRIVEE automation and is equipped with encoder input for
learning the stroke and recognising the obstacle.
Thanks to the considerable amount of logic available even very particular operating conditions on sytems can be met.
1. INTRODUCTION
- Power: 230Vac ±10% 50/60 Hz 100W
- SCA output: 24Vac 3 W
- Flashing lamp output 24Vac 25Wmax
- Power supply output for 20 ÷ 26 Vac 12W max.
accessories
M1: Power terminal board
M2: Controls and safety devices terminal board
M3: Motor terminal, transformer, +acc
SW3: 8-way Dip Switch
F2: Power fuse 500mA 5x20
AP.PD: Semi-automatic opening cycle
START: Start and programming
PM1: Pre-manoeuvre warning lamp ash time
PM2: Chain dip
PM3: Pause time
µP: Microprocessor with ash memory
COSTA
PWR
OUT 2
ENC
FOTO
STOP
START
μP
AP.PD.
APRE
PR1PR2
1
ON
2 3 4 5 6 7 8
DL1
CHIUDE
OUT 1
PM1
PM2
PM3
SW3
AP.PD
M1
M2
F2
START
M3

O&O LOG-BC Specifications

General

Brand	O&O
Model	LOG-BC
Category	Control Unit
Language	English
