• Position filter head and mounting bracket over screws and slot into place. (Diagram 13.3)
• Re-Tighten screws.
• Push filter into filter head and lock into position. (Diagram 13.4)

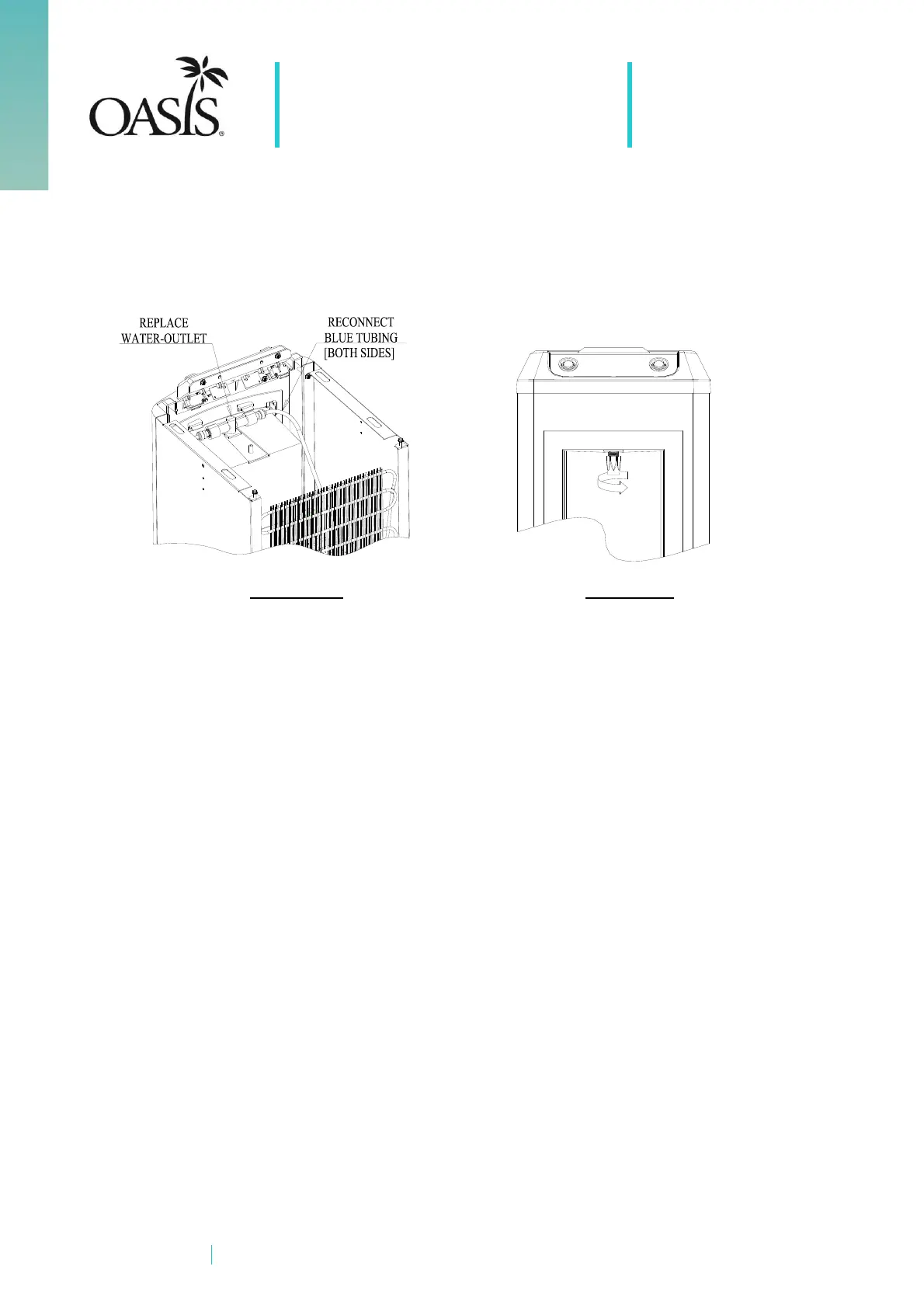

Diagram 13.5 Diagram13.6
• Take water-outlet and ¼ Inch reducers from sanitization solution and rinse under flowing tap.
• Rebuild water-outlet assembly with ¼ Inch reducers, and place in original position.
• Attach spout to water-outlet, and tighten into position. (Diagram 13.6)
• Re-attach new tubing to Water outlet on cook and cold sides.
• Reassemble Tee-piece with solenoids with replacement tubing; and reposition solenoids with
substitute cable ties.
• Affix bulk head fitting.
• Install all replacement blue tubing and connect the filtration system, back in line. Ensure tight
connections
• Connect from bulk head fitting to inlet of filter head, and outlet of filter head to Tee-connection
located on shelf.
13. Reassemble unit
