Oceanic OCS30 - Minimum Clearances

Sauna & Steam
Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk
12
Sauna Heater Manual
370
B
Min 1900
C D
50
20
Min 180
Min 1100
A
3mm gap between
screw head and wall
All sizes in mm
Supporting Screw
6mm x 40mm
(4pcs)
3.5
150
600

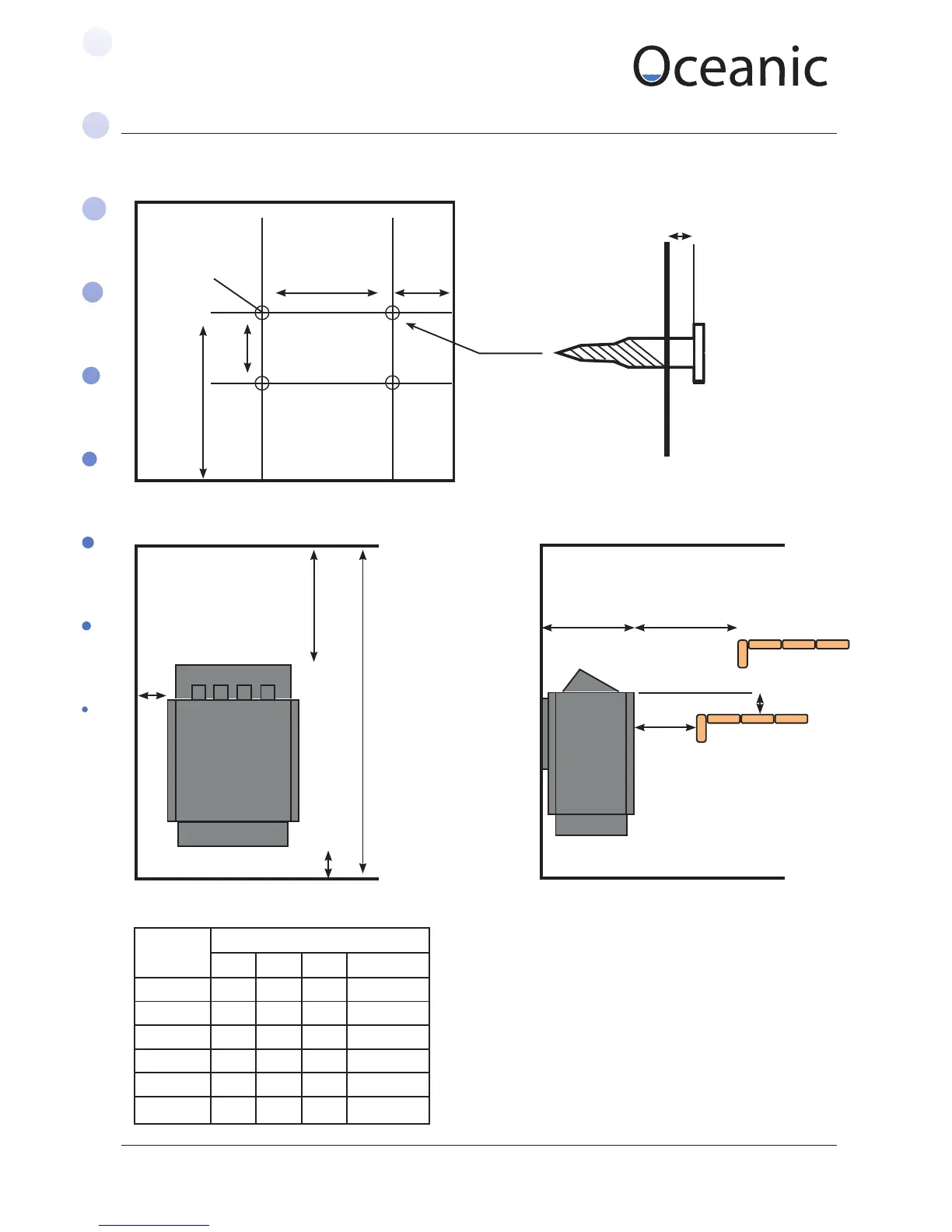

7.1. Minimum Clearances
Fig. A Fig. B
Fig. C Fig. D
Model
Minimum Distance (mm)
A B C D
OCS30 50 70 280 100
OCS40 50 70 280 100
OCS45 80 100 280 100
OCS60 100 120 280 150
OCS80 130 150 280 200
OCS90 130 150 280 200
