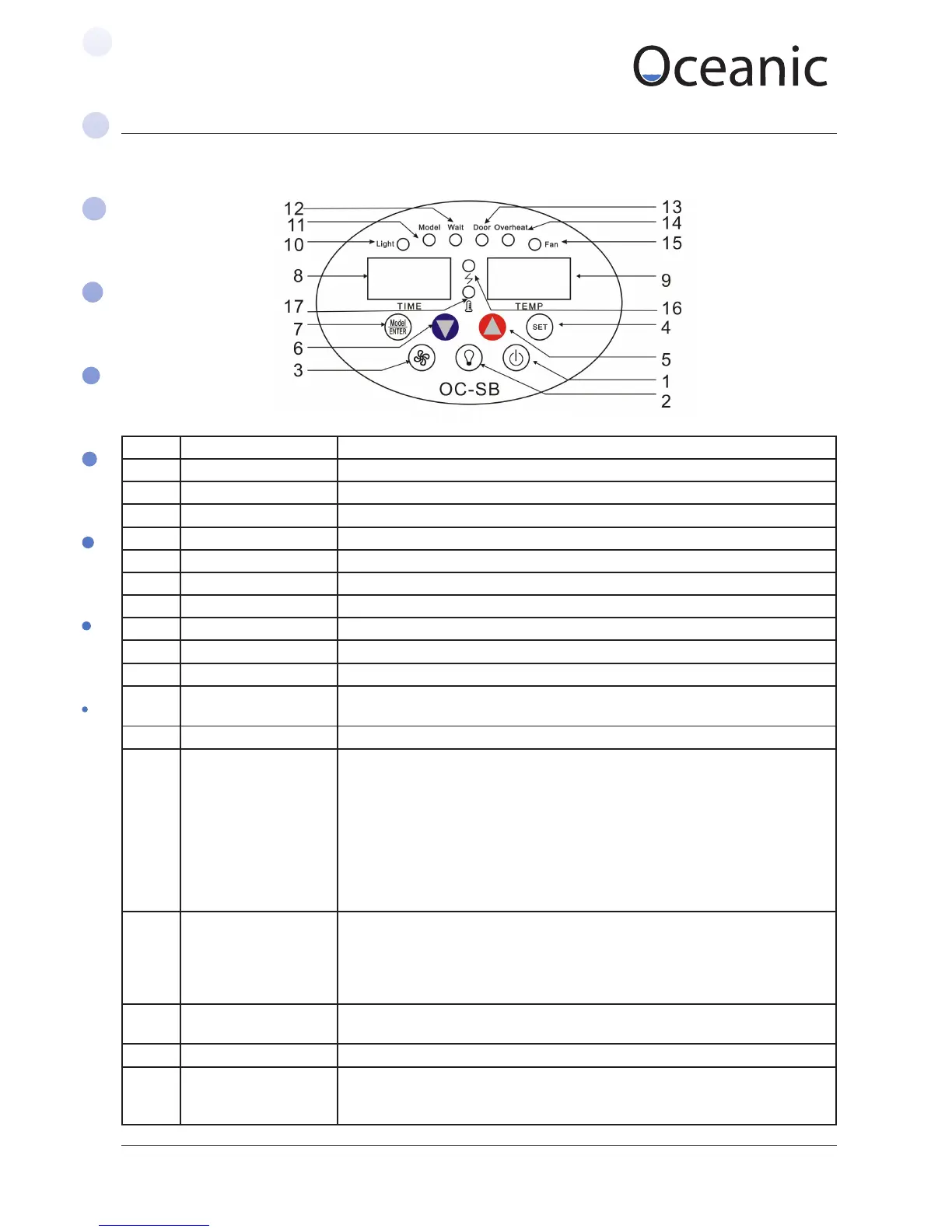

No. Description Function instruction
1 On/o button Push to operate
2 Light button Push to operate for sauna room light
3 Fan button Push to operate for control box fan
4 Setting button Preset time and temperature and the setting conrmation
5 Increase button Press to increase
6 Increase button Press to decrease
7 Mode button Change working mode
8 Time display Display working time or waiting time to work
9 Temp. display Display temperature
10 Light LED Indictor Led for sauna room lamp
11 Model LED Indictor LED for working mode, on mean under A model ,sauna heater is
working
12 Wait LED Indicator LE D for working mode, on mean under B waiting to work
13 Sauna room
Door(interlock)
indicator LED
indicator LED is on: the sauna heater stop working ,there is control signal
to control box main circuit board when the door is open , the default is the
connection switch is downward (opposite side of ON), when the door is open ,
there is on signal to circuit board , the LED is on and sauna heater stop work.
Such as on sauna room door install a switch connect to circuit board , the switch
‘s on or o signal can control sauna heater work or stop. when you need the
switch send o signal to working , the default is ok, when you need the sauna
heater under the on signal to work , just push the switch circuit board to “on”
side”
14 High temperature LED indicator LED is on , sauna heater stop work . the sauna room temperature
higher then 120 centigrade . high temperature cut o switch works, when the
temperature in sauna room down to 100 centigrade , and nd out the high
temperature problem then preset the switch by hand
15 Fan LED Fan is on - not used in any Oceanic Saunas
16 Heating LED On means the heat element is working
17 Stop working LED indicator LED for stop working , the sauna room temperature exceed the preset
temperature , the heat element pause(when temperature 2 centigrade lower
than preset temperature ,sauna heater will work again,
Keypad Buttons and LEDS
