Oceanic OCS30 User Manual

Sauna & Steam
Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk
14
Sauna Heater Manual

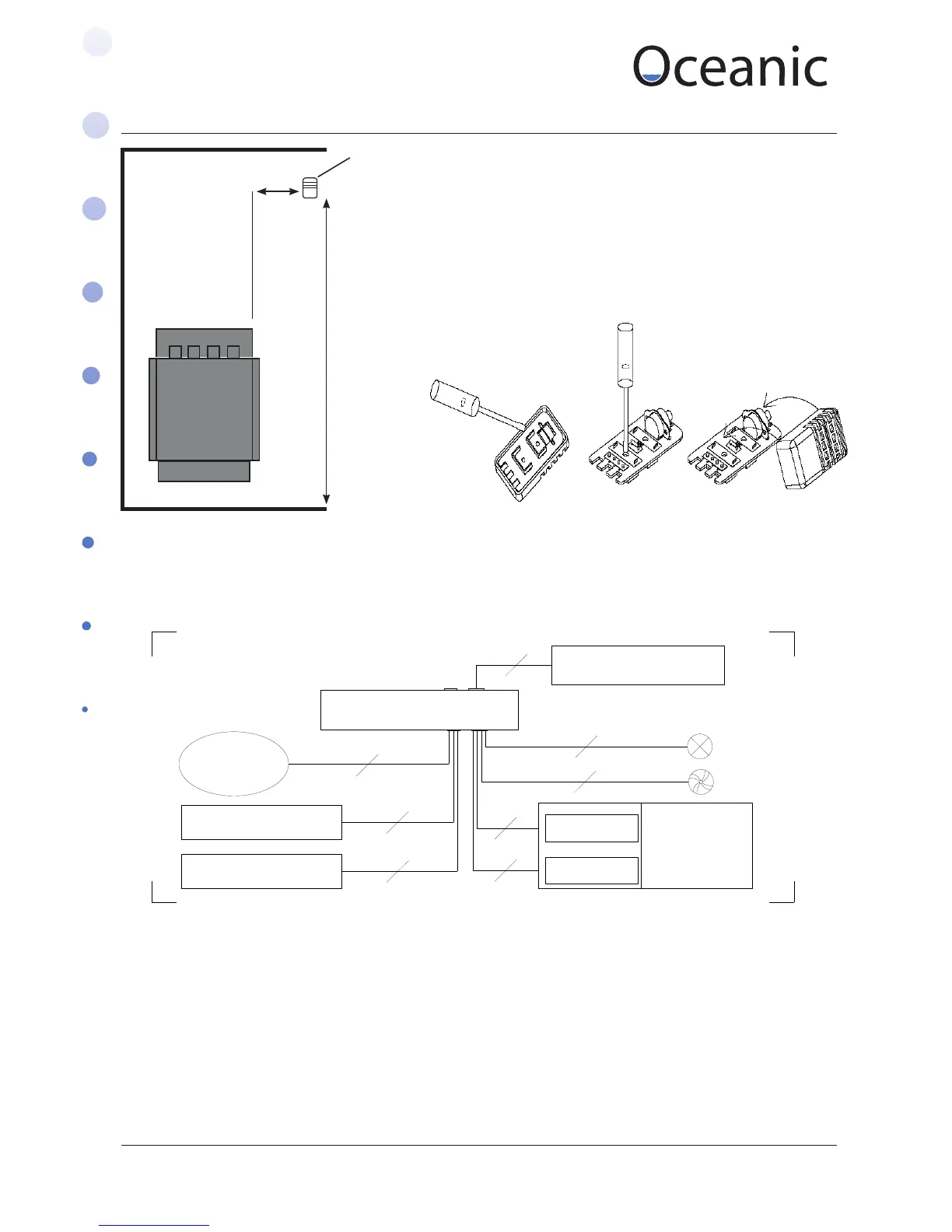

8. Sauna heater, controller and temperature sensor connection drawing

1800
Temperature Sensor
500
7.4. Installing the temperature sensor
i. Install the temperature sensor as in the
diagram opposite
ii. Open the cover with a screwdriver
iii. Fix the bottom of the temperature
sensor on to wall with screw
iv. Replace the cover.
OC-SB
Controller
6
2
5
Terminal 1
Sauna heater
2
Fan
Door InterLock Switch
INPUT POWER
400V 3N~ 50/ 60Hz
OCS-B Control BOX
Temperature Sensor
lamp
Terminal 2
5
2
4
5

INPUT POWER
400V 3N~ / 230V 1N~
OCSB/LB Control Box

Oceanic OCS30 Specifications

General

Brand	Oceanic
Model	OCS30
Category	Heater
Language	English
