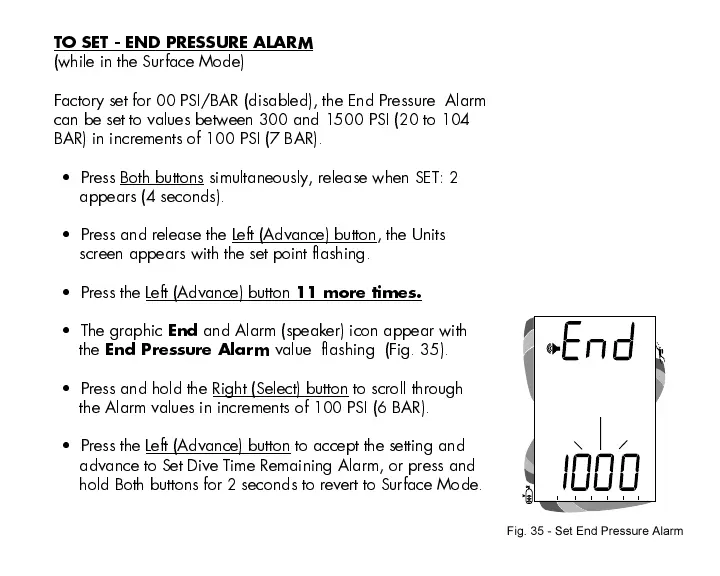

TO SET - END PRESSURE ALARM
(while in the Surface Mode)
Factory set for 00 PSI/BAR (disabled), the End Pressure Alarm
can be set to values between 300 and 1500 PSI (20 to 104
BAR) in increments of 100 PSI (7 BAR).
Press Both buttons simultaneously, release when SET: 2
appears (4 seconds).
Press and release the Left (Advance) button, the Units
screen appears with the set point flashing.
Press the Left (Advance) button
11 more times.
The graphic
End
and Alarm (speaker) icon appear with
the
End Pressure Alarm
value flashing (Fig. 35).
Press and hold the Right (Select) button to scroll through
the Alarm values in increments of 100 PSI (6 BAR).
Press the Left (Advance) button to accept the setting and
advance to Set Dive Time Remaining Alarm, or press and
hold Both buttons for 2 seconds to revert to Surface Mode.
Fig. 35 - Set End Pressure Alarm
