AIR TIME REMAINING BAR GRAPH

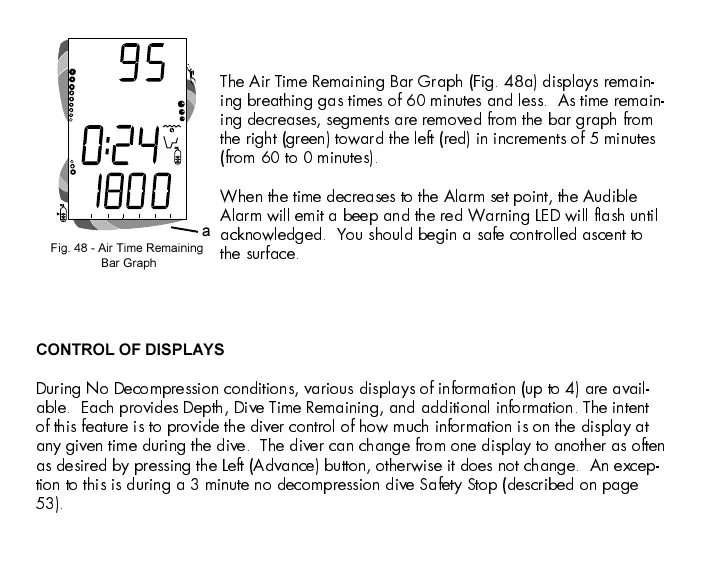

The Air Time Remaining Bar Graph (Fig. 48a) displays remain-
ing breathing gas times of 60 minutes and less. As time remain-
ing decreases, segments are removed from the bar graph from
the right (green) toward the left (red) in increments of 5 minutes
(from 60 to 0 minutes).
When the time decreases to the Alarm set point, the Audible
Alarm will emit a beep and the red Warning LED will flash until
acknowledged. You should begin a safe controlled ascent to
the surface.
CONTROL OF DISPLAYS
During No Decompression conditions, various displays of information (up to 4) are avail-
able. Each provides Depth, Dive Time Remaining, and additional information. The intent
of this feature is to provide the diver control of how much information is on the display at
any given time during the dive. The diver can change from one display to another as often
as desired by pressing the Left (Advance) button, otherwise it does not change. An excep-
tion to this is during a 3 minute no decompression dive Safety Stop (described on page
53).
