Ochsner OTE 3 User Manual

BA_OTE 3+4_Endkunde_EN_V03_20170726.docx Page 13 of 52
Record the adjustments in the Table:
Date
Heating curve
Comments
03-001
03-013
Table 1: adjust heating curve

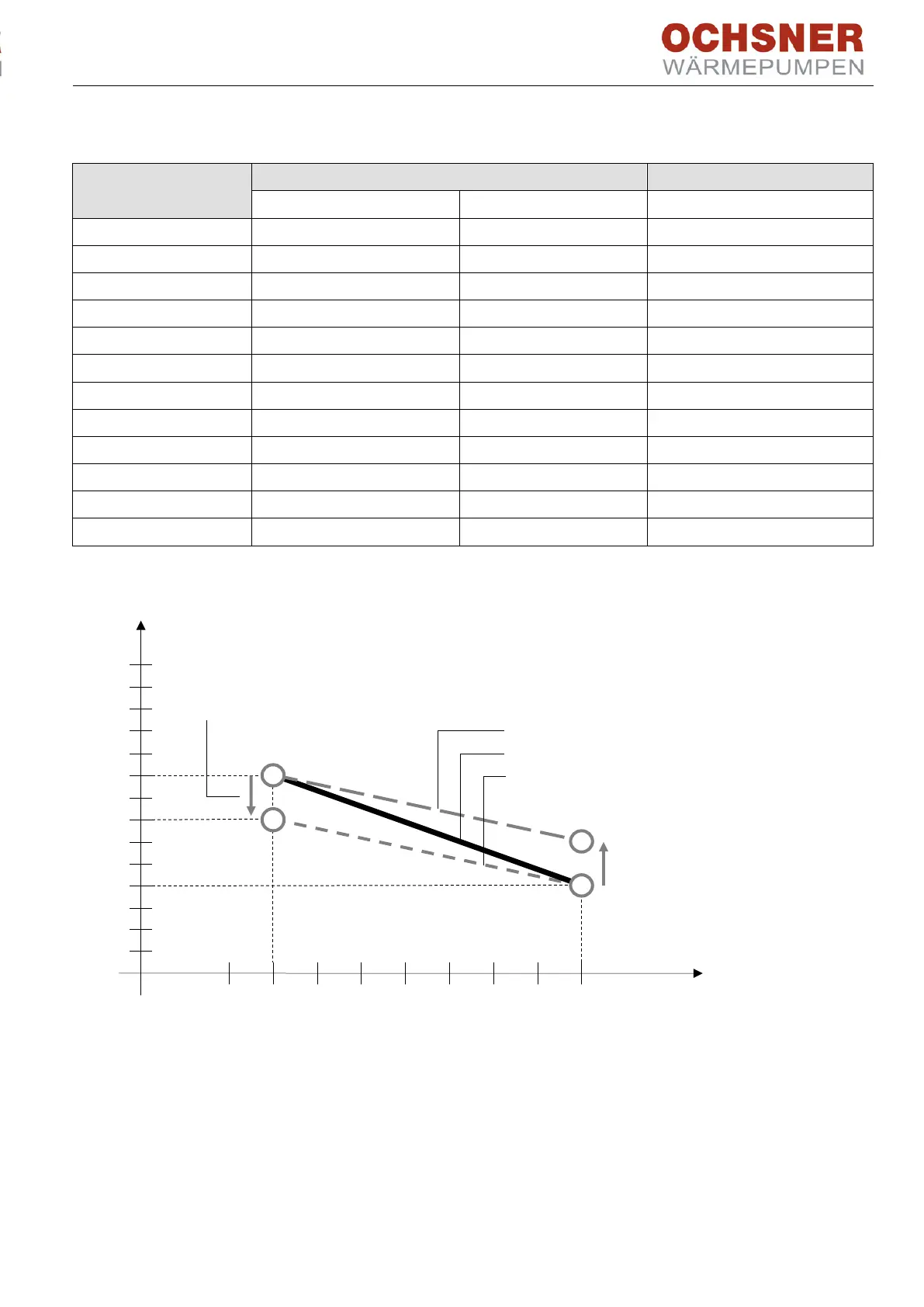

Fig. 9: Heating curve correction
a) Modified heating curve when the base point temperature (03-001) is set higher
b) Basic heating curve set by the heating engineer during commissioning
c) Modified heating curve when the base point temperature (03-013) is set lower
35
5
10
15
20
25
30
40
45
50
55
60
65
70
-20
-15
-10
-5
0
5
10
15
20
Outside temperature [°C]
Flow temperature heating circuit (VLT) [°C]
Design supply temperature (03-013)
Base point temperature heat-
ing curve (03-001)
a
c
b
